12 QSG ti-Series Laser Ver 2.5
ti-Series Laser Quick Start Guide
To PC
Ethernet
port

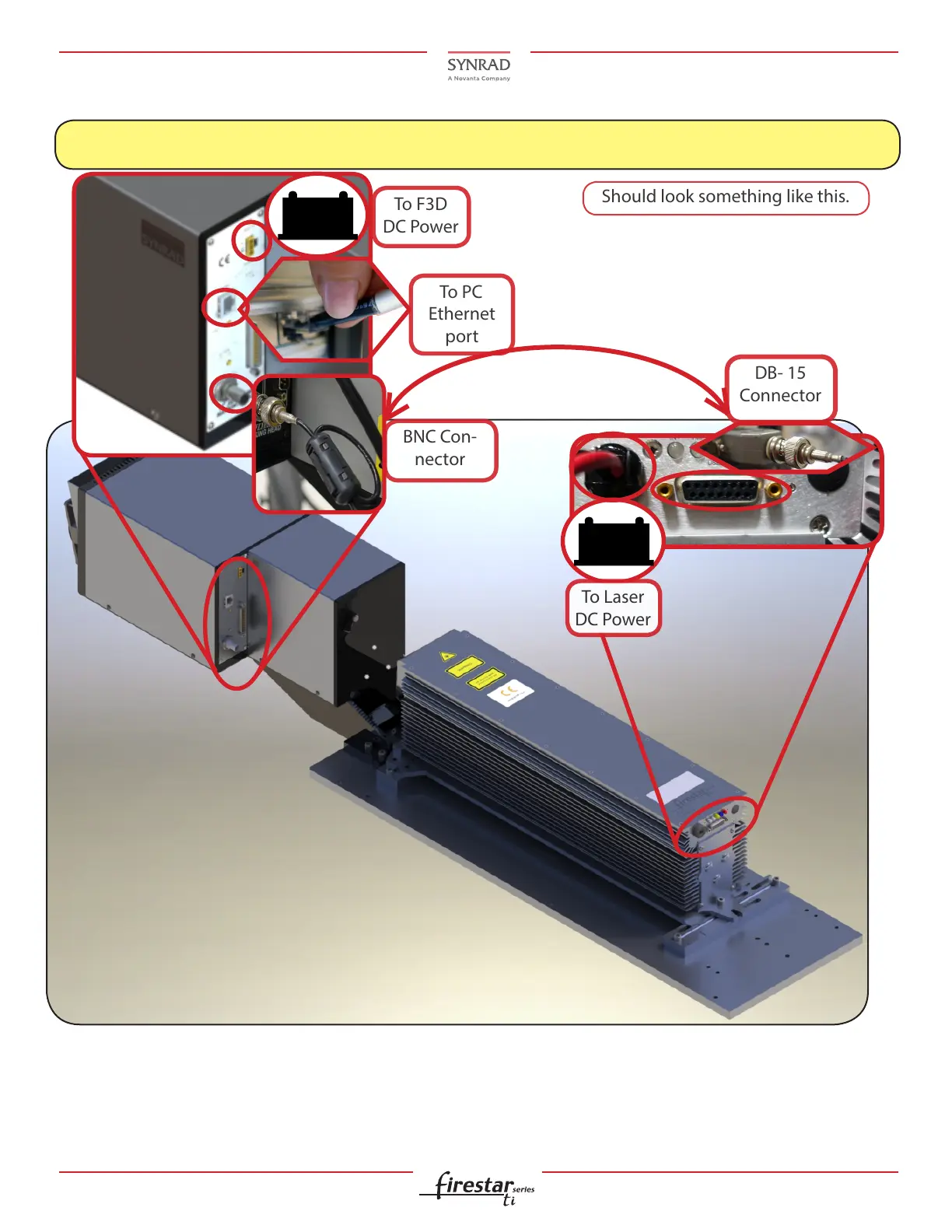

Should look something like this.
To F3D
DC Power
BNC Con-
nector
DB- 15
Connector
To Laser
DC Power
Control Connections (Continued):
Note:
IF using a SYNRAD Flyer 3D Marking Head, should have something that looks like he gure below.
