MAINTENANCE AND SUPPLIES REPLACEMENT

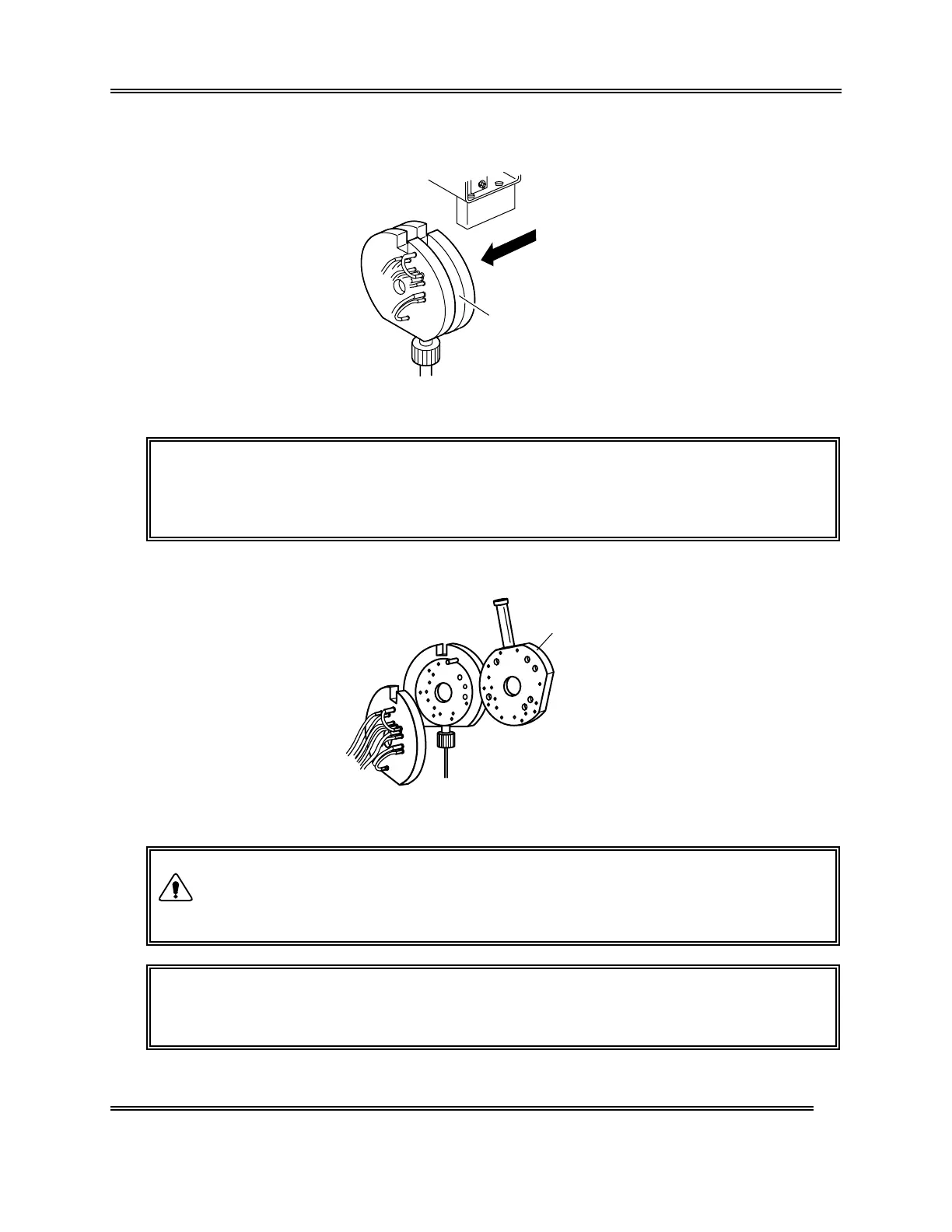

Sysmex KX-21 Operator’s Manual -- Revised October 1998 4-19
(7) Remove the entire sample rotor valve (SRV).
Sample Rotor Valve
Figure 4-6-6: Removing the Entire SRV
CAUTION: • Take care not to pull out the valve excessively. This is to prevent
applying excess force to the tube connected to the valve.
• When removing the valve, take care not to bend the sample probe.
(8) Remove the rotary valve.
Rotary Valve
Figure 4-6-7: Removing the Rotary Valve
• When removing the valve, reagent could leak from the tube. If it does,
wipe it clean using cloth. If left as it is, it can cause current leakage or
electric shocks.
NOTE: • The valve components are in close contact with one another. They
can be easily removed when you gently twist and slide each one.
