MAINTENANCE AND SUPPLIES REPLACEMENT
Sysmex KX-21 Operator’s Manual -- Revised October 1998 4-21

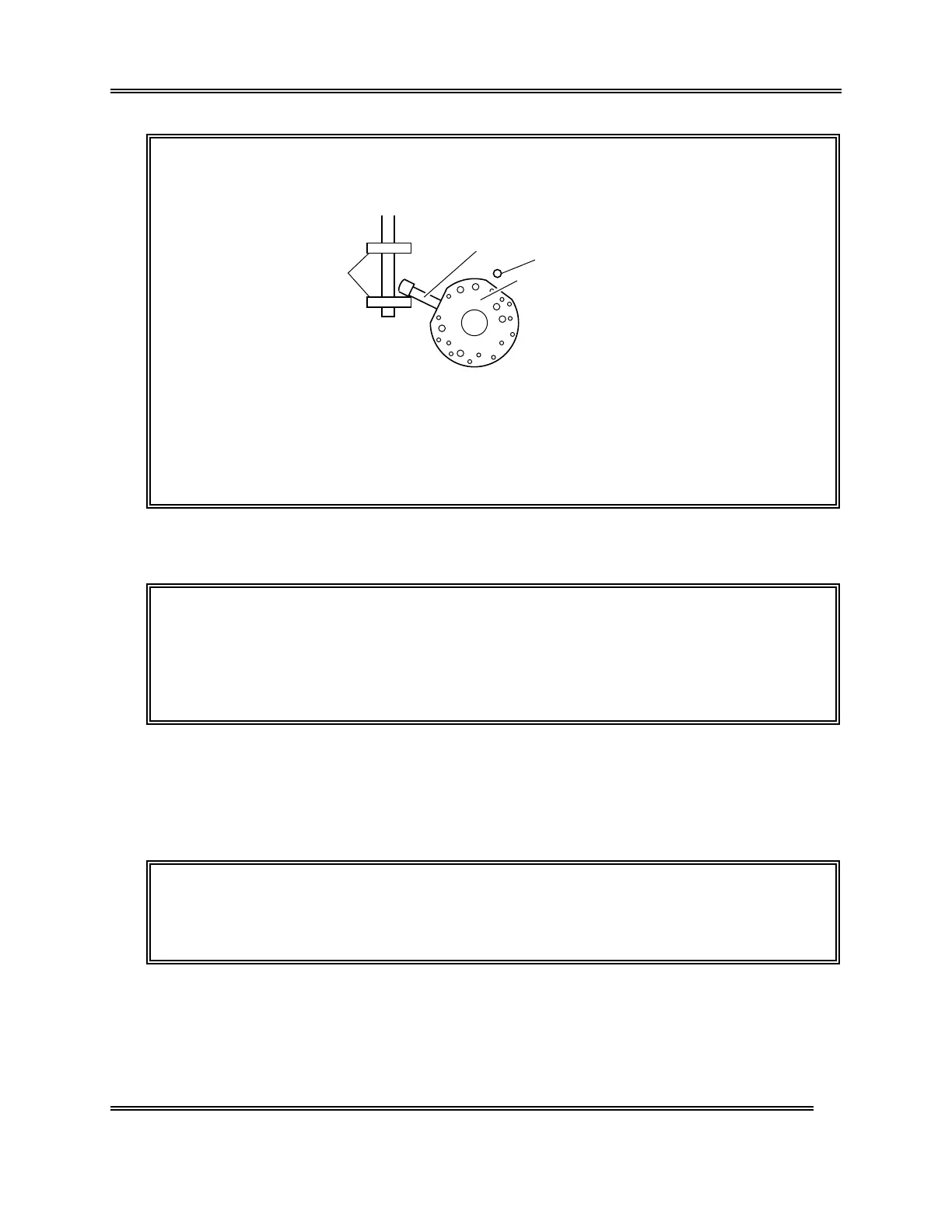

CAUTION: • Mount the rotary valve with the notch facing upward and the metal
knob coming between the stoppers.
Stopper
Metal Knob
Groove
Guide Pin for Rotary Valve
(View of Left Side)
Figure 4-6-9: Rotary Valve
• Confirm that the metal knob is between the stoppers. If it is not,
malfunction will occur.
(13) Mount the SRV tray to the original position and gently push up the rinse cup to the top
using both hands.
CAUTION: • Mount the SRV tray properly as to its face/bottom and the direction.
• Make sure the rinse cup is pushed all the way up with the sample
probe inserted in the hole. If the power is turned on with the rinse cup
staying lowered, "Rinse Motor Error" will occur, making it impossible to
continue the operation.
(14) Close the front cover of the main unit.
(15) Turn on the main unit and make sure that the background error has not occurred.
(16) Perform quality control and make sure that there is no functional problem.
NOTE: • When this operation is completed, the SRV cycle counter is
automatically reset. For confirmation of SRV cycle number, refer to
Chapter 4, Section 9: CONFIRMATION OF CYCLE NUMBER
.
