SYSMEX KX-21 - Adjustment of Pressure and Vacuum

ADJUSTMENT
8-2 Sysmex KX-21 Operator’s Manual -- Revised October 1998
2. ADJUSTMENT OF PRESSURE AND VACUUM
Pressure and vacuum from the built-in Pneumatic Unit are regulated to 0.5 kg/cm
2
and 250
mmHg. The pressure and vacuum are always monitored by pressure sensors. When an
error occurs, an error message is displayed.
If the pressure or vacuum error message is displayed, check tubing connections or the like
for any air leakage. If there is no such error, display the Status Display screen and adjust
pressure or vacuum as required.
2.1 Location of Control Knobs
0.5 kg/cm
2
Regulator
250 mmHg Bellows Unit

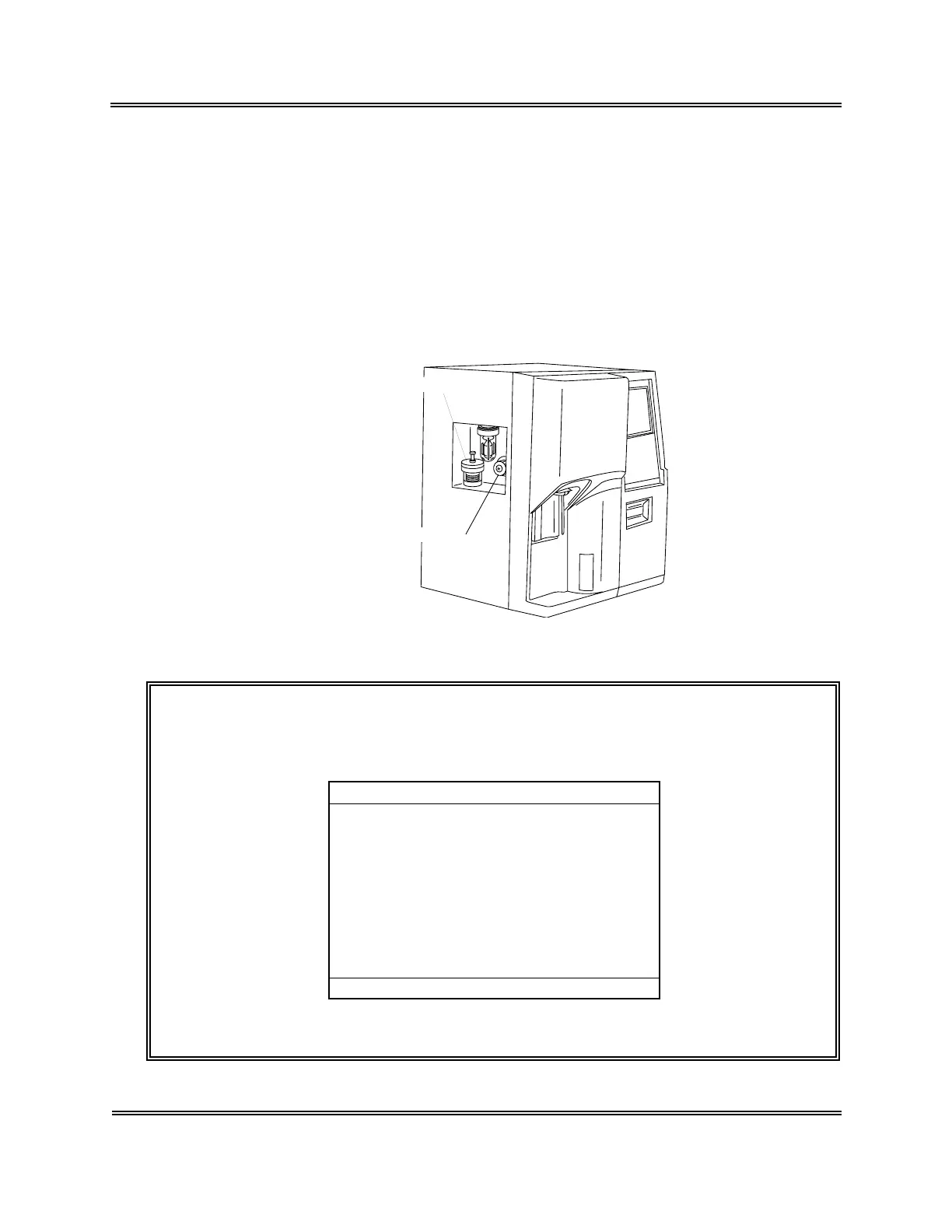

Figure 8-2-1: Location of Control Knobs
NOTE: • When an error has occurred, press [HELP] key to check pressure or
vacuum value on the Help screen.
(Refer to
Chapter 7: TROUBLESHOOTING .)
*
Help
*
0.5kg/cm2 Pressure Error
0.35 [0.40 - 0.60]
ERR CODE: XXXX.X.X
Adjust 0.5kg/cm2 Pressure
Restarting to monitor the pressure[1]
1:End of Adj
Figure 8-2-2: Help Screen
