2.4 Adjusting Vacuum to 250 mmHg
(1) Using the procedure of "2.2 Pressure and Vacuum Display," display the Status
Display screen.
(2) By turning counterclockwise, loosen the locking nut for the bellows unit on the left
side of the unit.
(3) While watching the pressure and vacuum indication on the Status Display screen, turn
the adjusting knob to regulate pressure and vacuum. Turn the adjusting knob
clockwise to increase pressure and vacuum.
Adjustment range: 250±10 mmHg
HighLow
Locking nut
Adjusting knob
Loosen

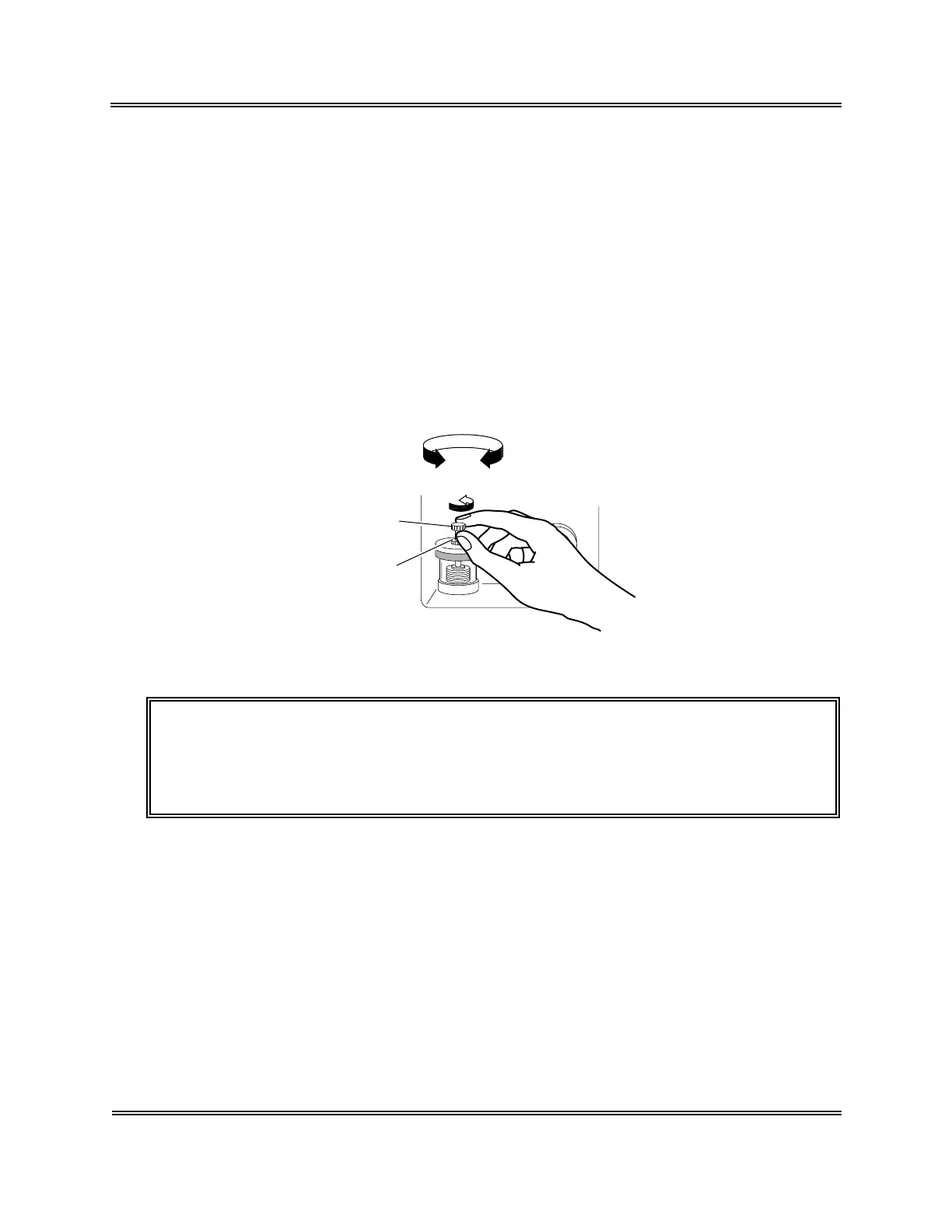

Figure 8-2-7: Adjusting the Vacuum
CAUTION: • Always adjust pressure and vacuum so as to increase to the
predetermined levels. Should any of them be too high, lower it to
below that level once, then raise it to the set level. Unless adjustment
is properly conducted, accurate adjustment may not be possible.
(4) When adjustment is finished, tighten the locking nut while taking care not to allow the
adjusting knob to rotate.
(5) Press [SELECT] key to return to the Ready status.
