DISPLAY AND PROCESSING OF ANALYSIS RESULTS
Sysmex KX-21 Operator’s Manual -- Revised October 1998 3-3
System Status Display Area
Date/Time Analyzed
Latest Sample No.
Mode Indication
Analysis Result Display Area
Menu Display Area
Ready
1:M.Discri. 2:Print 3:Paper Feed
31/12 23:59No.123458 WB
P-LCR - 9.5%
MPV 9.3fL
PLT 180
×10
3
/µL PDW - 7.9fL
MCHC + 44.8g/dL RDW - 25.6fL
MCH 37.0pg NEUT# 3.5×10
3
/µL
MCV - 82.6fL MXD# 1.4×10
3
/µL
HCT 32.8% LYM# 2.2×10
3
/µL
HGB 14.7g/dL NEUT% 49.2%
RBC 3.97×10
6
/µL MXD% 19.6%
WBC 7.1×10
3
/µL LYM% 31.2%
No.123457 WB

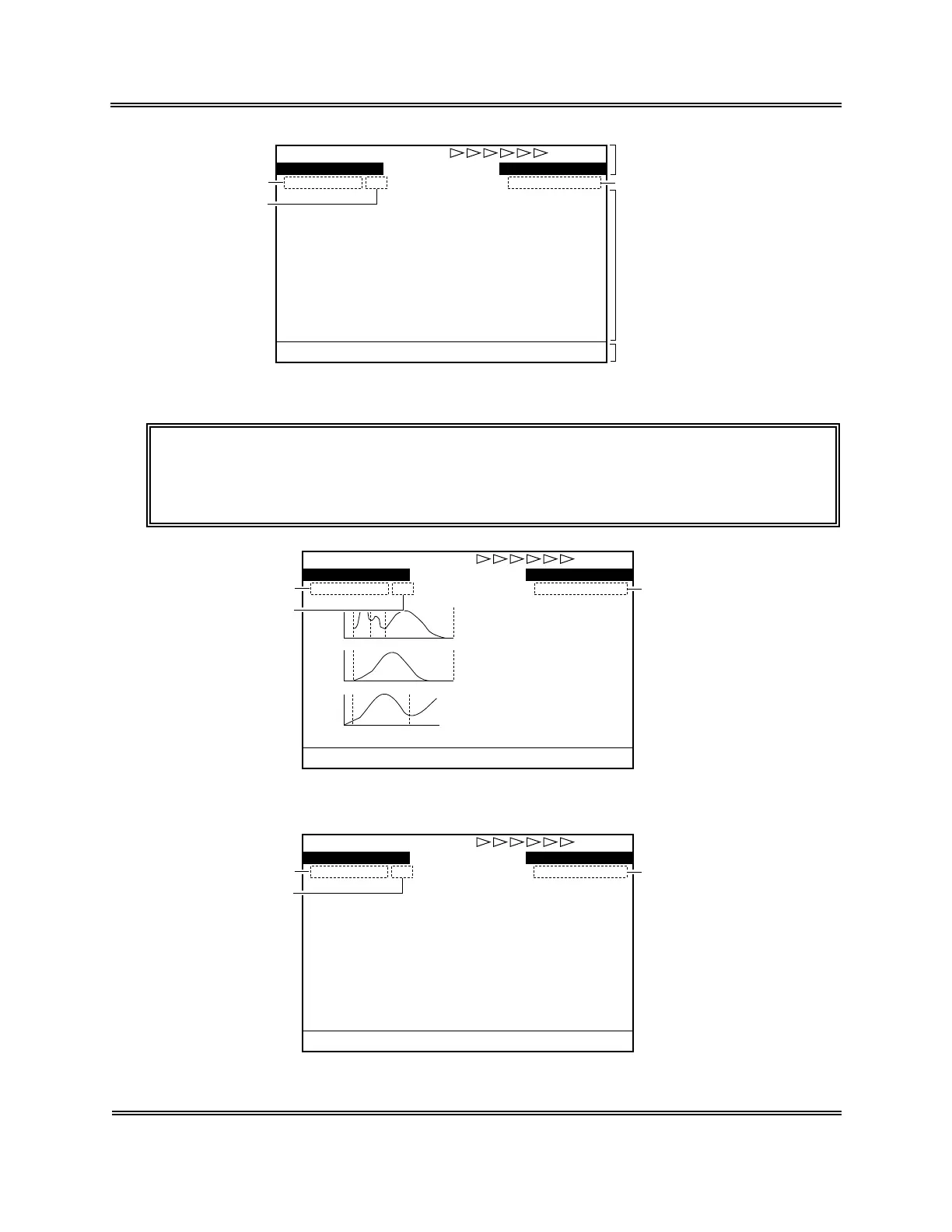

Figure 3-2-2: All Analysis Data Display Screen
NOTE: • When analysis is made in the pre-diluted mode, particle distribution
analysis parameters are displayed in "- - -. -." The particle distribution
curve is not displayed.
Date/Time Analyzed
Latest Sample No.
Mode Indication
31/12 23:59No.123458 WB
P-LCR - 9.5%
MPV 9.3fL
PDW - 7.9fL
RDW - 25.6fL
WBC
RBC
PLT
NEUT# 3.5
×10
3
/µL
MXD# 1.4×10
3
/µL
LYM# 2.2×10
3
/µL
NEUT% 49.2%
MXD% 19.6%
LYM% 31.2%
No.123457 WB
Ready
1:M.Discri. 2:Print 3:Paper Feed
Figure 3-2-3: Particle Distribution Display Screen
Date/Time AnalyzedLatest Sample No.
Mode Indication
31/12 23:59No.123458 WB
PLT 180
×10
3
/µL
MCHC + 44.8g/dL
MCH 37.0pg
MCV - 82.6fL
HCT 32.8%
HGB 14.7g/dL
RBC 3.97×10
6
/µL
WBC 7.1×10
3
/µL
No.123457 WB
Ready
1:M.Discri. 2:Print 3:Paper Feed
Figure 3-2-4: CBC8 Parameter Display Screen
