V/D S ERIES
M ECHANICAL ASSEMBLIES
3-14 Revision: 2.1
3.2.3 D-23
11 1312
14 16
15
17 1918
31 3332
34 3635
37 3938
41 4342
44
4645
47 4948
51 5352
565554
57 5958

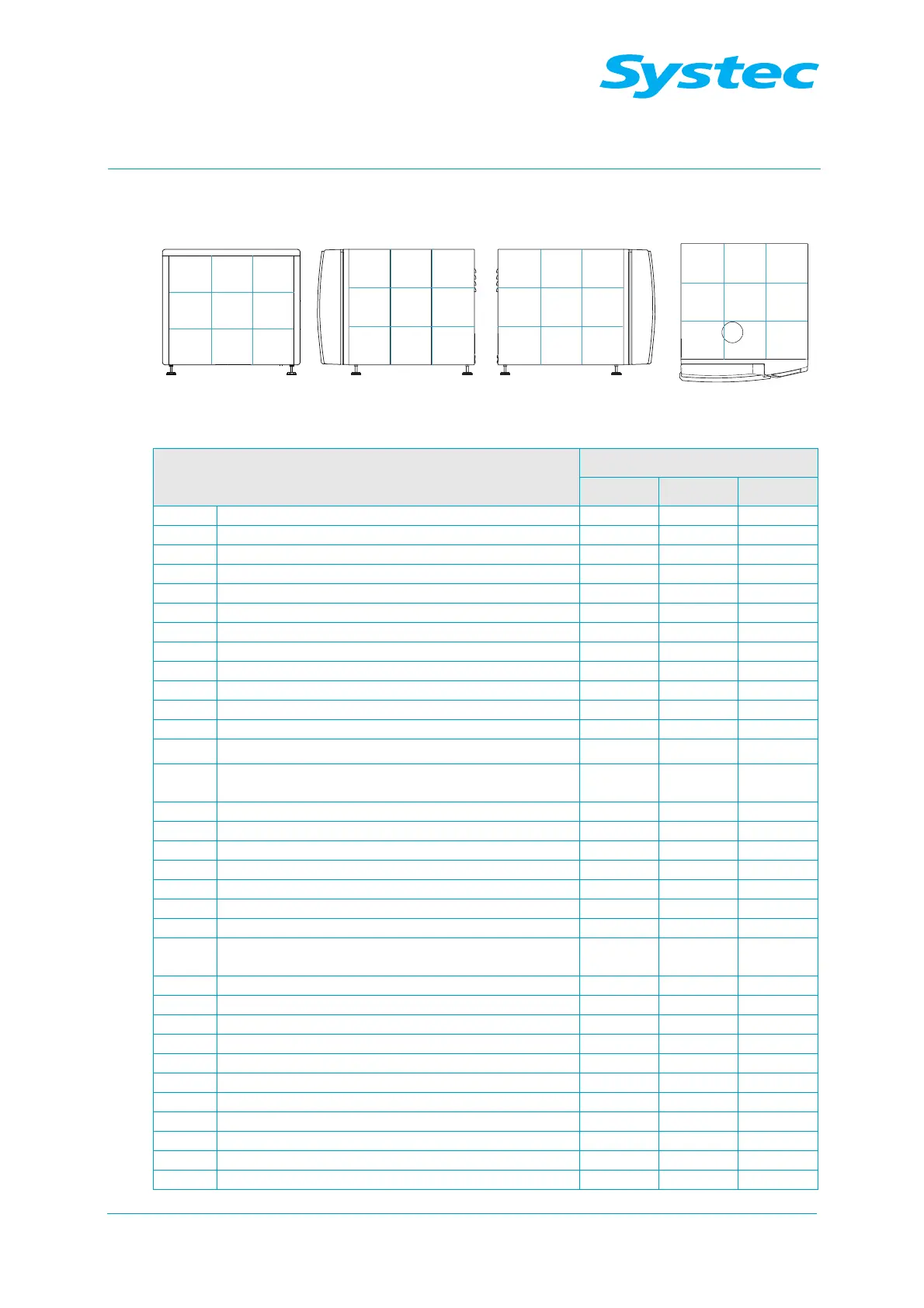

Fig. 3: D-23: Layout diagram of rear, right, left and top
Component
Position in layout diagram
DX DE DB
Manual setting of recirculate/eject 17 17
Steam generator 37/38
BV1 Manual drain tap for steam generator 17
D1 Steam air extractor for sterilisation chamber 48 47 47
D2 Steam air extractor (Super Dry) 49
E5 Electrode for Aquastop 58 58 (opt.)
E6 High electrode for reservoir container 58 58 58
E7 Earth plate 58 58 58
F2 Vacuum flow monitor 38 38
FSW1 Float switch valve for demineralised water 31 31 (opt.)
M1 Demineralised water feed pump 35 35 (opt.)
M2 Vacuum pump 32 32
M4
Radial fan
15 15
N3 Needle valve for demineralised water on reservoir
container
34 34 (opt.)
NR7 Needle no-return valve for cavitation protection 31 31
P1 Manometer for external compressed air 52 52
PR1 Pressure reducer for external compressed air 52 52
PR2 Pressure reducer for cooling water 38 38
PS1 Pressure transducer for steam generator 11
PS2 Pressure transducer for sterilisation chamber 11 11 11
R1 No-return valve for demineralised water 37 37 37
R2 No-return valve on pressure transducer for steam
generator
11
R3 No-return valve for cooling water 38 38
R4 No-return valve for compressed air inlet 15 15
R5 No-return valve for drain 48 18 18
R13 No-return valve for cavitation protection 31 31
S1 Sterile air filter 52 39, 52 39
SV1 Safety valve on steam generator 19
SV2 Safety valve for sterilisation chamber 19 19 19
Y1 Steam inlet valve 51
Y2 Super Dry valve 51
Y3 Cooling water valve 52 52
Y4 Drain cooling 38 38
