System Sensor L-Series User Manual

8 LED L-series Indoor Horn Strobes and Strobes — P/N I56-0022-000 8/25/2023
Installation Remove a Ceiling Model Appliance
– Pivot the product into position to engage the terminals on the mounting plate. Make sure that the tabs on the back of the product
housing fully engage with the mounting plate.
– Hold product in place with one hand, and secure product by tightening the single mounting screw in the front of the product housing.
3.5 Remove a Ceiling Model Appliance
Ceiling models only: To remove the product from the mounting plate, loosen the captive mounting screw and press the locking button. (See
Figure 14.)

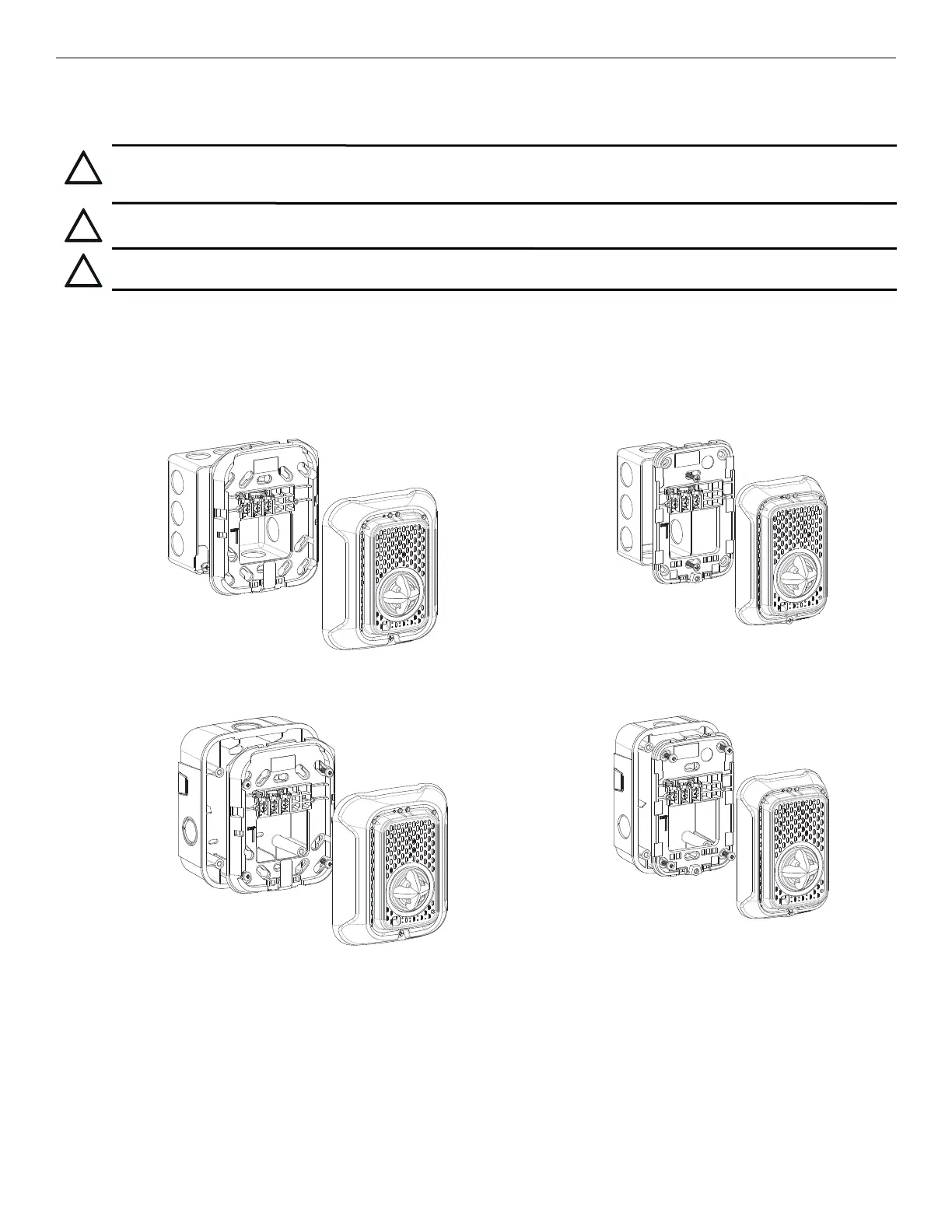

3.5.1 Mounting Drawings
Figure 8 Mounting a Standard Wall Device
(Double-gang box)
A0615-00
Figure 9 Mounting a Compact Wall Device
(Single-gang box)
A0619-00
Figure 10 Surface Mounting a Standard Wall Device
(SBBRL/SBBWL)
A0614-00
Figure 11 Surface mounting a Compact Wall Device
(SBBGRL/SBBGRL/SBBGWL)
A0618-00
!
CAUTION:
The “hold in place” snaps are not intended to secure the product to the back box. The product must be secured to the back box
using the screws provided
!
CAUTION:
Factory finish should not be altered: Do not paint!
!
CAUTION:
Do not over tighten mounting plate screws; this may cause mounting plate to flex.
