MOUNTING OPTIONS
LOCATION
• Must be located in a conditioned space
where it will be possible to conveniently
service the unit.
• Typically located close to the outside wall
where the hoods will be mounted.
• A utility room when basement is not
possible.
Attic installation must meet the following
conditions:
• Attic temperature must be above
freezing conditions at all times and
for best performance should be
12°C (54 °F).
• The attic is easily accessible for
equipment maintenance and inspection.

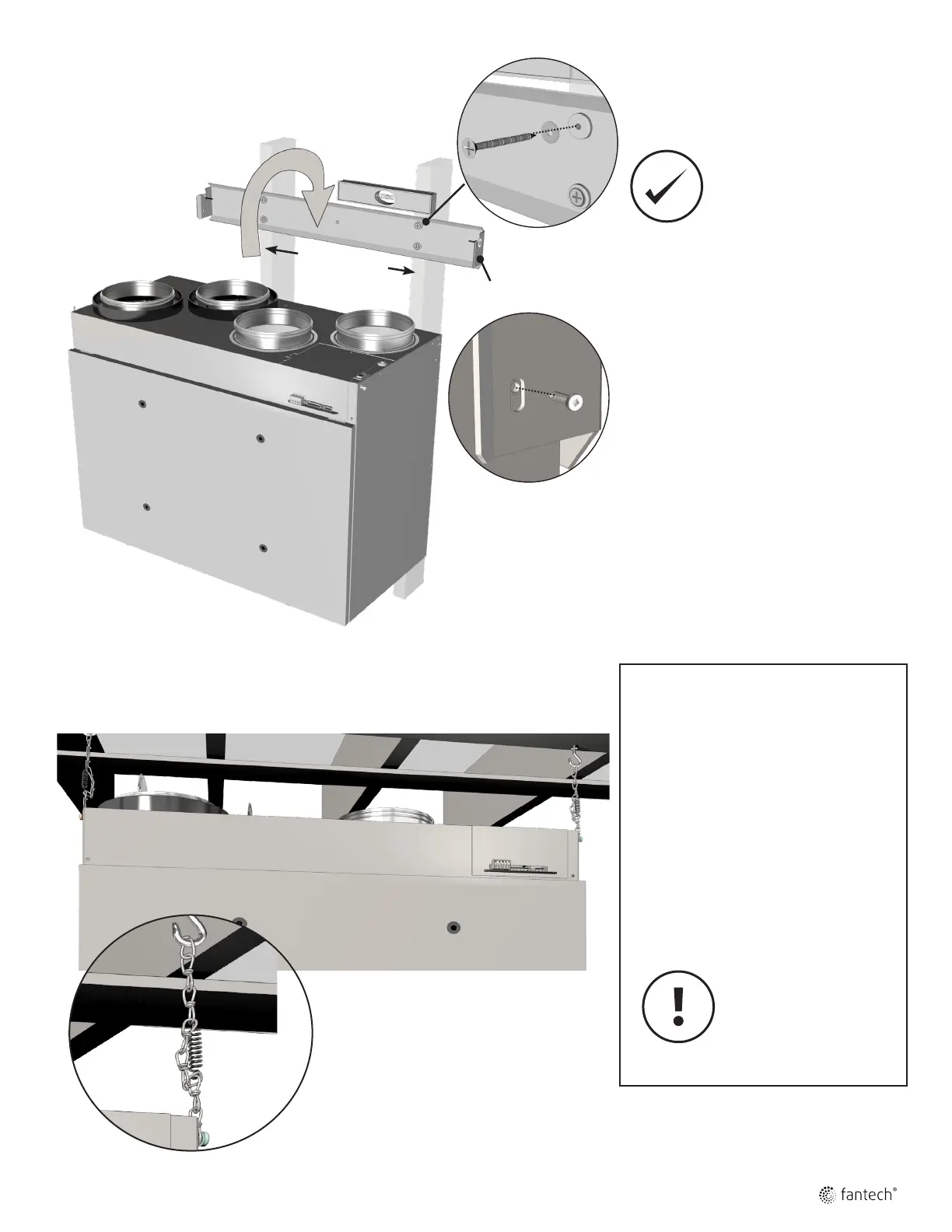

WALL MOUTING BRACKET INSTALLATION
CHAIN MOUNT INSTALLATION - OPTIONAL
* Hanging kit not included.
When wall mount bracket is not
convenient. Use a chain kit (which includes
hanging chains, 10-24 screws, spring, and
hooks)
Install a spring on each chain as shown
to support the unit's weight and absorb
vibrations.
Safety screws
(included)
16” (406mm)
DO NOT
Connecting appliances to the HRV is not
recommended. These include:
• Clothes dryer
• Range top
• Stovetop fan
• Central vacuum system
• Bathroom exhaust fans unless they are
specically designed for this purpose
• These appliances may cause lint, dust or
grease to collect in the HRV, damaging
the unit.
Connecting any of these
types of appliances to
the HRV will void your
warranty.
