4

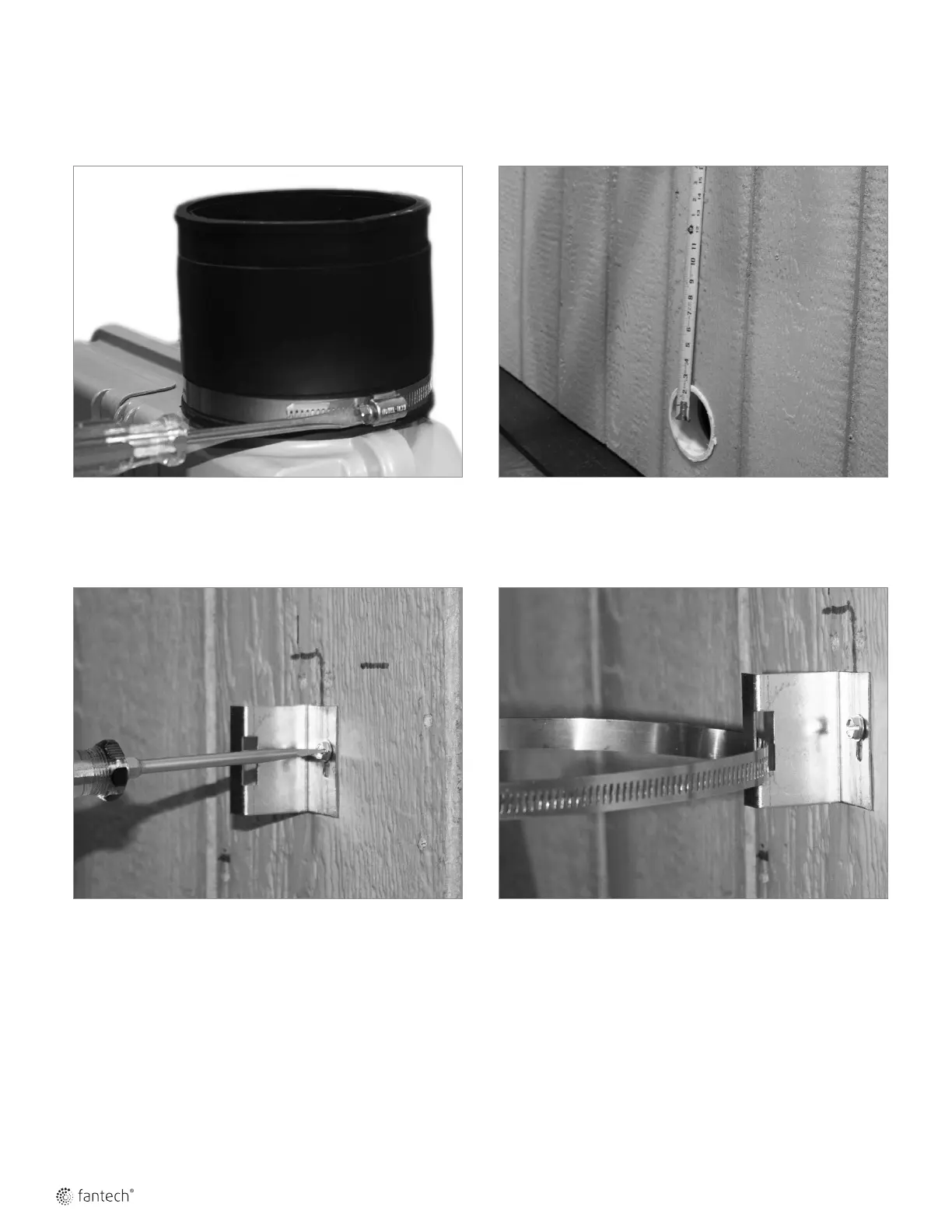

3. Insert a Flexible Coupling (item 4 provided) over Rn2SL discharge and
securely tighten fan side Hose Clamp.
4. Measure 17” up and 1 3/8” to the right from center of Suction Pipe
(item 6 not provided). Mark this location.
INSTALLING THE Rn2SL (Cont.)
6. Use a Hose Clamp provided with the Flexible Coupling and insert it in
the Metal Bracket (item 5) slot.
5. Securely mount the Metal Bracket (item 5 provided) as shown using
a screw (not provided) located at the mark made previously.
To Next Page
