8 - Technical Data
8.1 Hydraulic features
Q [m
3
/h]
Pressure drop [m]

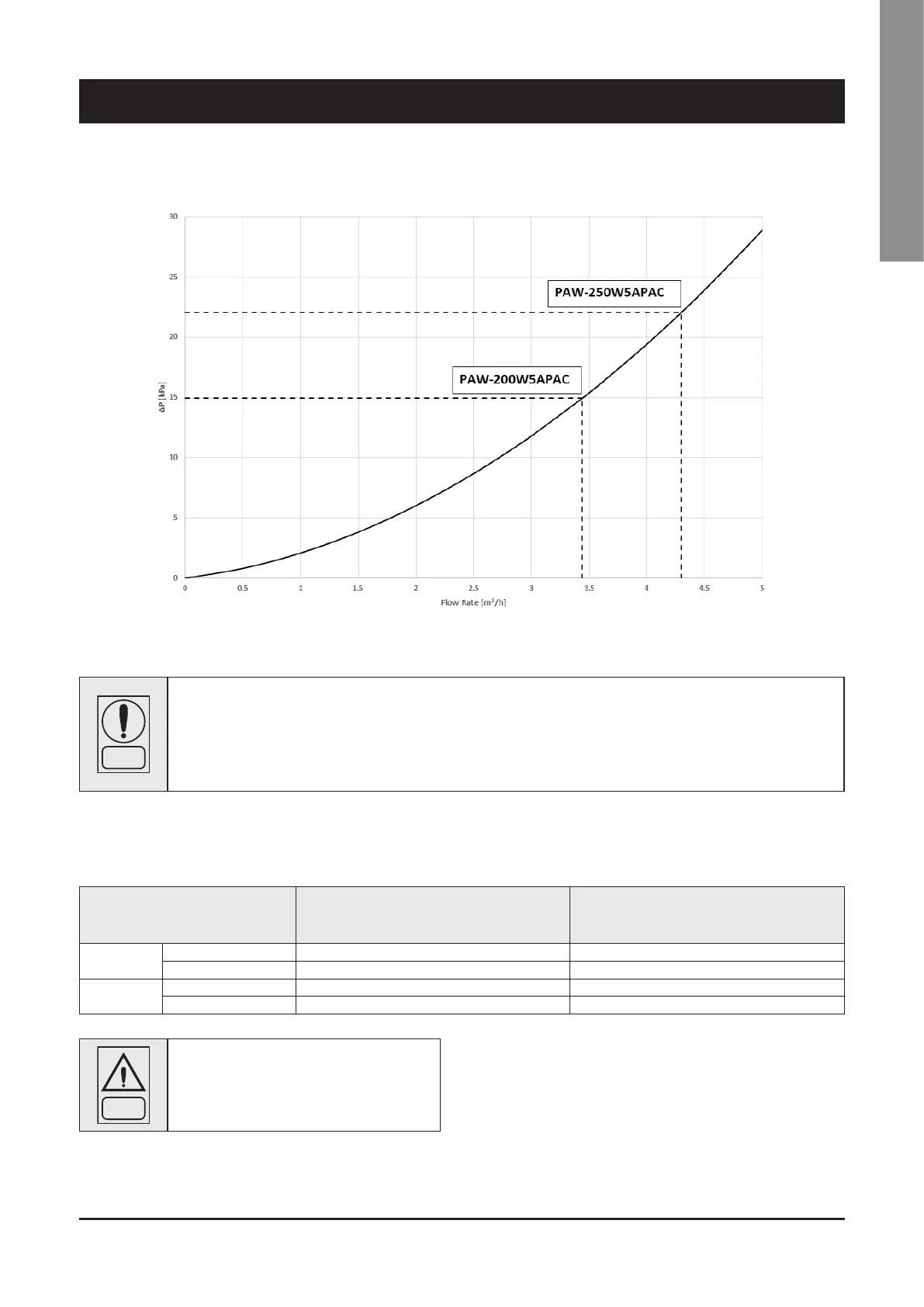

WHE Evaporator Water Pressure Drop
NOTE
The Available pressure head, at the exit of the WHE, is calculated by:
Available Head = Pump Static Pressure - WHE Total Pressure Drop
The external water circuit must be dimensioned accordingly
The WHE Total Pressure Drop is the sum of the evaporator pressure drop, filter pressure drop and flow switch pressure drop
(refer to accessory chapter for information)
WARNING
The minimum evaporating temperature allowed
in cooling mode on the refrigerant side is -2°C
Lower evaporating temperature could cause
freezing in the plate heat exchanger
8.2 Envelope
WHE Total Water Pressure Drop
PAW-5WAPAC
operating limit condition
Indoor Water Leaving Water
Temperature, LWT
Outdoor Air Temperature,
OAT
°C °C
Cooling mode
min 5 -15
max 15 46
Heating mode
min 35 -20
max 50 24
