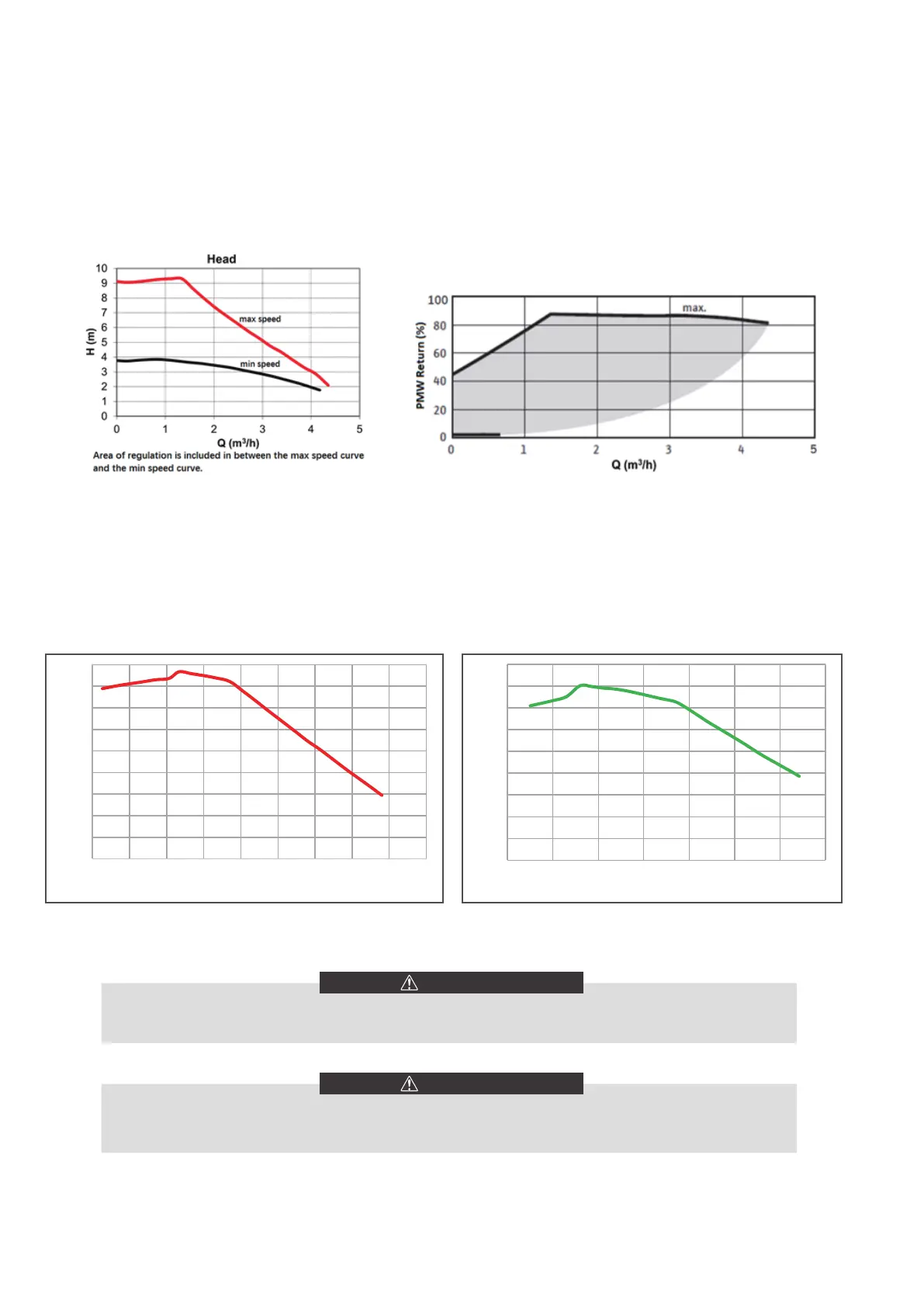

The pump is contolled via a digital low-voltage pulse-width modulation signal which means that the
speed of rotation depends on the input signal.The speed changes as a function of the input profile.
The relationships between the head and the water flow rated,the PMW Return and the water flow
rated are shown in the graph below.
9.4 Setting the pump
The internal pump maintains maximum output, the indoor unit can provide the head and flow:
Available external static pressure VS Flow rate
0
10
20
30
40
50
60
70
80
90
0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3.0
ESP（KPa）
Q（m
3
/h）
Available external static pressure VS Flow rate
Indoor unit 160
0
10
20
30
40
50
60
70
80
90
0.3 0.7 1.1 1.5 1.9 2.3 2.7 3.1
ESP（KPa）
Q（m
3
/h）
Indoor unit 60，100
CAUTION
If the valves are at the incorrect position, the circulation pump will be damaged.
DANGER
If it's necessary to check the running status of the pump when unit power on, please do not touch the internal electronic
control box components to avoid electric shock.
