After installing the unit, be sure that there is no more longitudinal and transversal counterslopes
avoiding condensate evacuation.
Caution
10 VH
The temperature sensor (change over) supplied is to
be tted to the water inlet tube.
Before assembling the change over sensor, coat the
tube with heat conducting paste to guarantee that
the real temperature is recorded.
The M and B2 change over sensor inputs can
be connected to the mains power supply. If it is
necessary to extend the sensor wires, ensure that
wires appropriate for this voltage are used.
TAE20: SCH
AQUANET: WPT
AQUASIMP: WPT

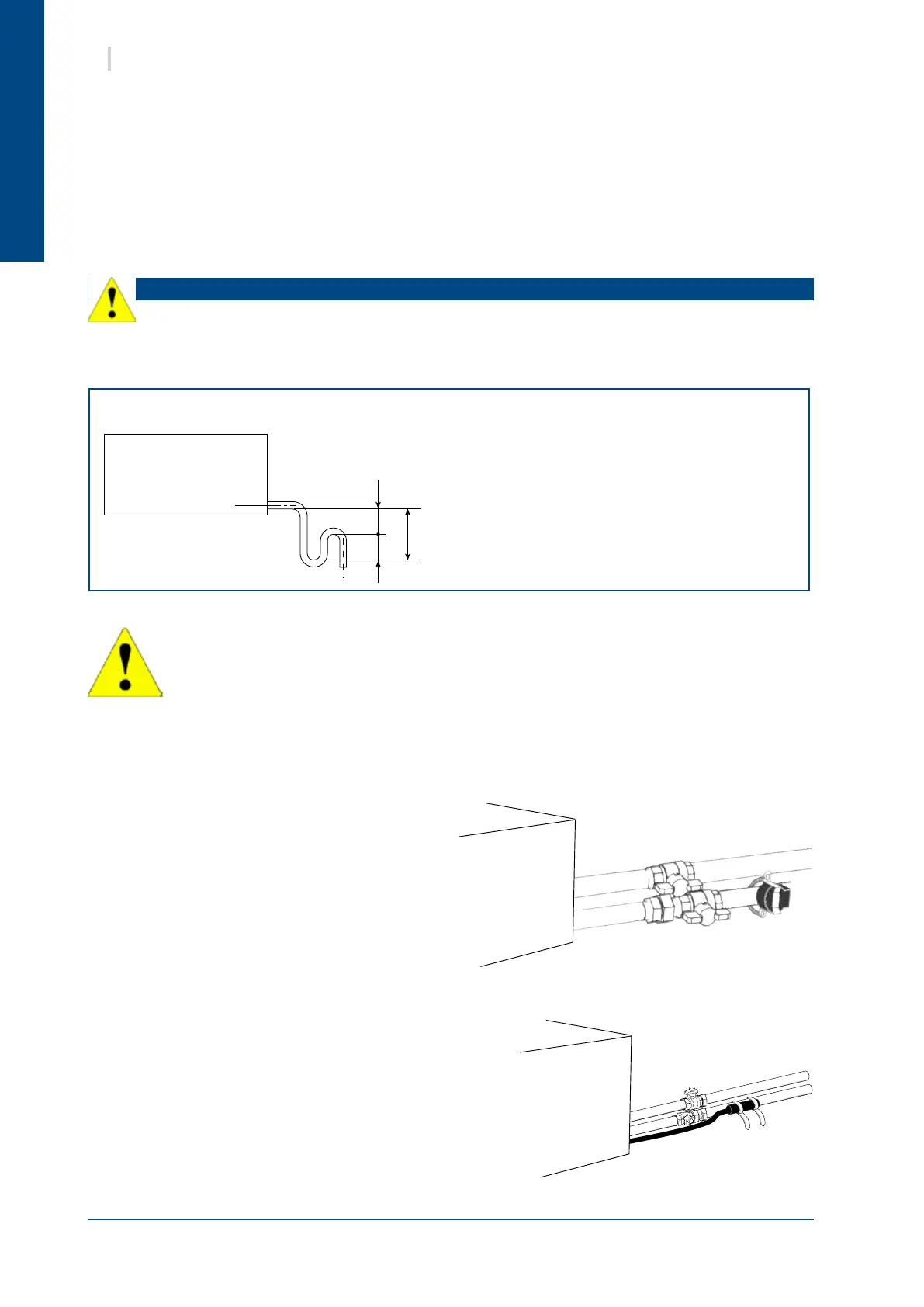

7.4. CONDENSATE DRAIN CONNECTION
A condensate tray is supplied with a 5/8" exterior diameter copper drain hole.
Ensure that the condensed water will drain properly from the tray, which must be connected to the main
evacuation pipe.
The evacuation pipe must be installed with a downhill angle. Check that the evacuation pipe work has a
siphon which must be made in accordance with the illustration below. Moreover, the evacuation pipe must
be insulated to prevent condensation forming on the outside of the pipe.
All foreign bodies must be removed from the condensate tray.
Siphon for condensate evacuation
The height A must be equal to 2 times the value
of the negative pressure present in the condensate
reception zone
Example :
negative pressure = 40 mm
height A = 80 mm, height B = 160 mm.
Check that the condensates drainage hose is connected and allows liquid to drain freely.
Check that condensates actually drain properly (installation with or without drainage pump) by
pouring water into the condensates tray (pump electricity supply switched on).
VH
VH
The thermostat (change-over switch)
supplied is to be mounted on the water
supply pipe.
7.5. INSTALLATION OF THERMOSTAT OR TEMPERATURE SENSOR (CHANGE OVER)
7.5.1. TRM-FA
7.5.2. TAE20 OR AQUANET OR AQUASIMP
