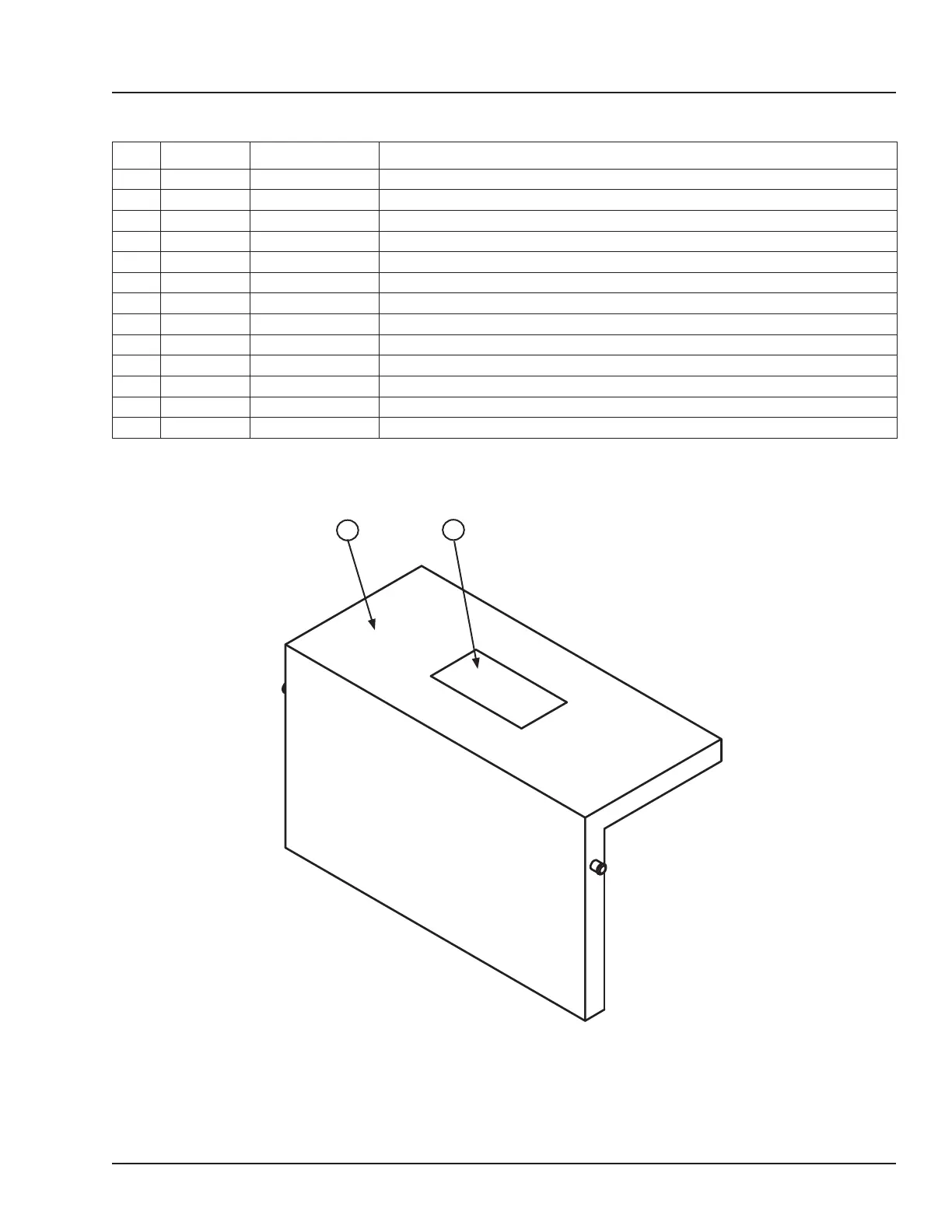

Powerpack Assembly
Item Quantity Part Number Description
* 1 9395-0414 Powerpack, Complete (Includes Valve Body and Cover)
1 2 2101-0017 Screw, 3/8-16 UNC x 1, Grade 2, Zinc Plated
2 2 2101-0140 Lock Washer, 3/8
3 2 2401-0001 Grommet, 1-3/8 OD x 3/4 ID
4 1 2751-0016 J-Box Cover, 4 x 4
5 1 3051-0058 Capacitor - Motor Start, 66-77mf - 330V
6 2 9301-0221 Fitting, 45 Degree, #4 ORBM to #4 JICM
7 1 9391-0087 Powerpack, 1/4HP, 0.94GPM, 1-phase, 115v, 725 RV
8 1 9391-0012 Powerpack Mounting Weldment
9 1 9391-0013 Powerpack Cover
10 1 8581-0117 Valve, 4-Way
11 1 8581-0118 Coil, 115v
12 1 1751-0149 Decal, “No Step”
