SYSTEMS Poweramp PowerStop M - Powerpack Assembly

40
4111-0014 — Apr. 2020
© 2020 Systems, LLC

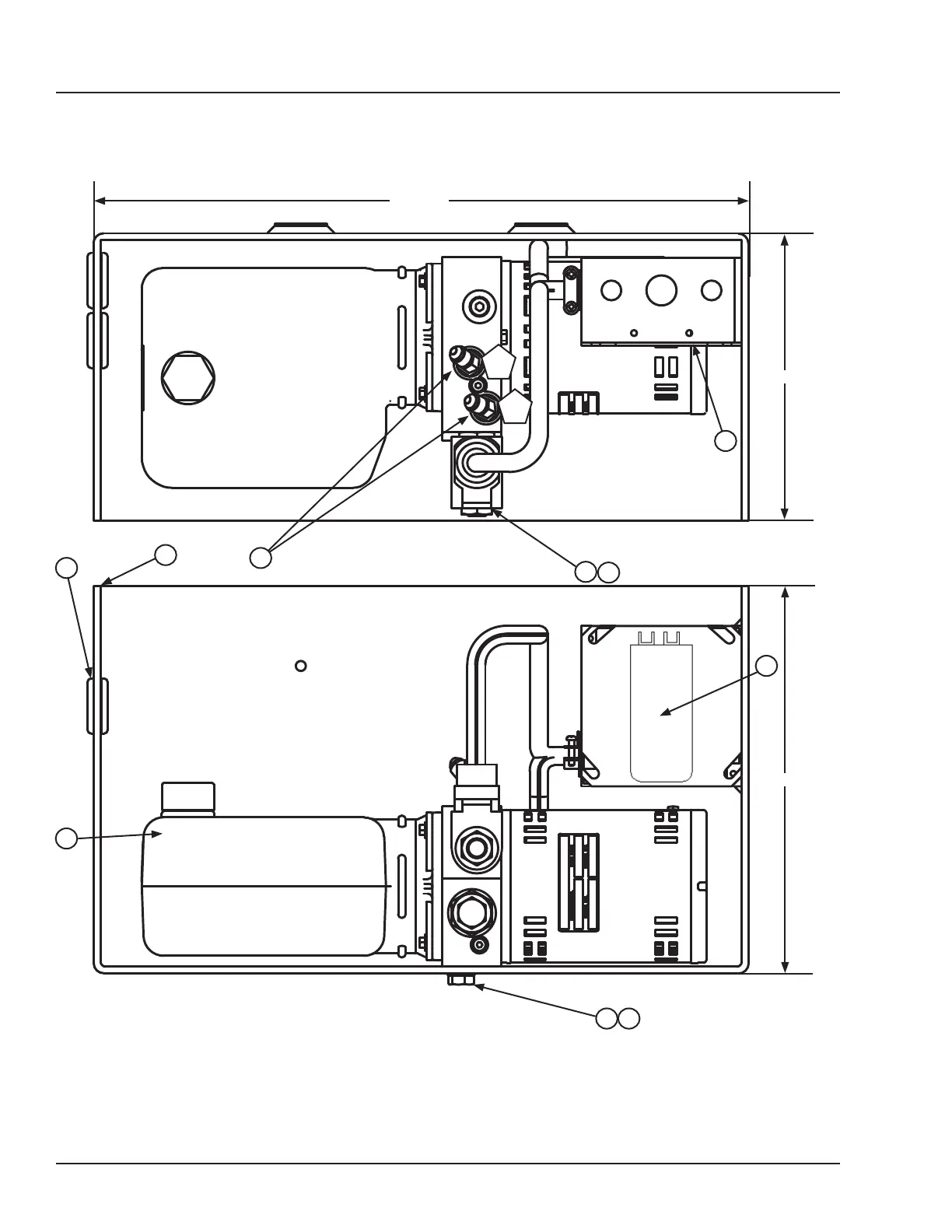

Powerpack Assembly
PARTS
TOLERANCES
(UNLESS OTHERWISE NOTED)
FRACTIONAL: 1/32"
DECIMAL:
.00 =
.01"
.000 =
.005"
ANGULAR:
1
MATERIAL
DRAWN BY
CHECKED BY
DRAWING NO.
DATE
BDK 10/11/2017
9395-0407
FOR
MANUALS
POWERPAC ASSEMBLY 725 RV
P O W E R A M P
M C G U I R E
D L M
S Y S T E M S, I N C.
L o a d i n g D o c k E q u i p m e n t
This print is the property of Systems, Inc. and represents a proprietary article in which Systems, Inc. retains any and all
patent and other rights, including exclusive rights of use and/or manufacture and/or sale. Possession of this print does
not convey any permission to reproduce, print or
manufacture the article or articles shown therein, such permission to be
granted only by written authorization signed by an officer or other authorized agent of Systems, Inc. thereof.
STOCK NO.
11
10
3
8
7
5
1 2
4
16-1/2”
7-1/2”
9-3/4”
6
Note:Note:
4.8-5.2 FLA (Full Load Amperage)
BC: Blind End of Cylinder
RC: Rod End of Cylinder
BC
RC
