SYSTEMS Poweramp PowerStop M - Hydraulic Combo Valve Block

42
4111-0014 — Apr. 2020
© 2020 Systems, LLC
Item Quantity Part Number Description
* 1 8583-0050 Valve Assembly (Contains 1-7)
1 2 8581-0011 Valve, 4-Way 2-Position
2 1 8581-0112 Valve, Flow Control 1 GPM
3 1 8581-0177 Valve, Flow Control 725 psi
4 1 8581-0114 Valve, Sequence
5 3 9301-0115 Fitting, Elbow, #6 ORBM to #8 JICM
6 2 9301-0135 Fitting, Straight Thread, #4 ORBM to #6 JICM
7 1 9301-0111 Fitting, Straight Thread, #6 ORBM to #8 JICM
8 1 8581-0004 Coil, 115v (Not Shown)
Item Description
P Pressure From Pump
R Return To Tank
LP Presure To Logic Block
LR Return From Logic Block
BC Blind End of Cylinders
RC Rod End of Cylinders

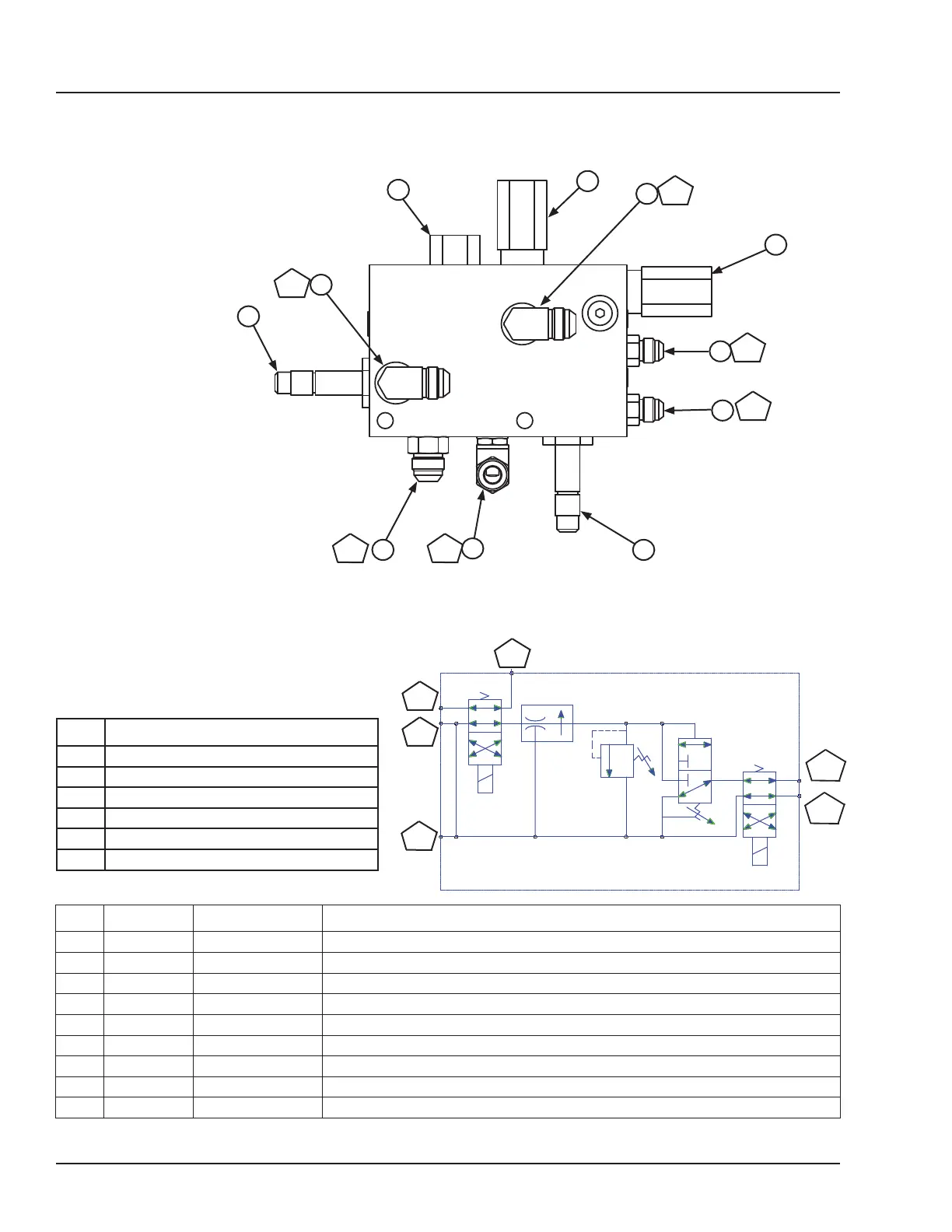

PARTS
PowerStop and Leveler Combination Valve Block
Restraint Coil
De-Energized: Lower
Energized: Raise
Leveler Coil
De-Energized: Leveler
Energized: Restraint
