3. Becoming acquainted with the operational components
3.1 . . . front

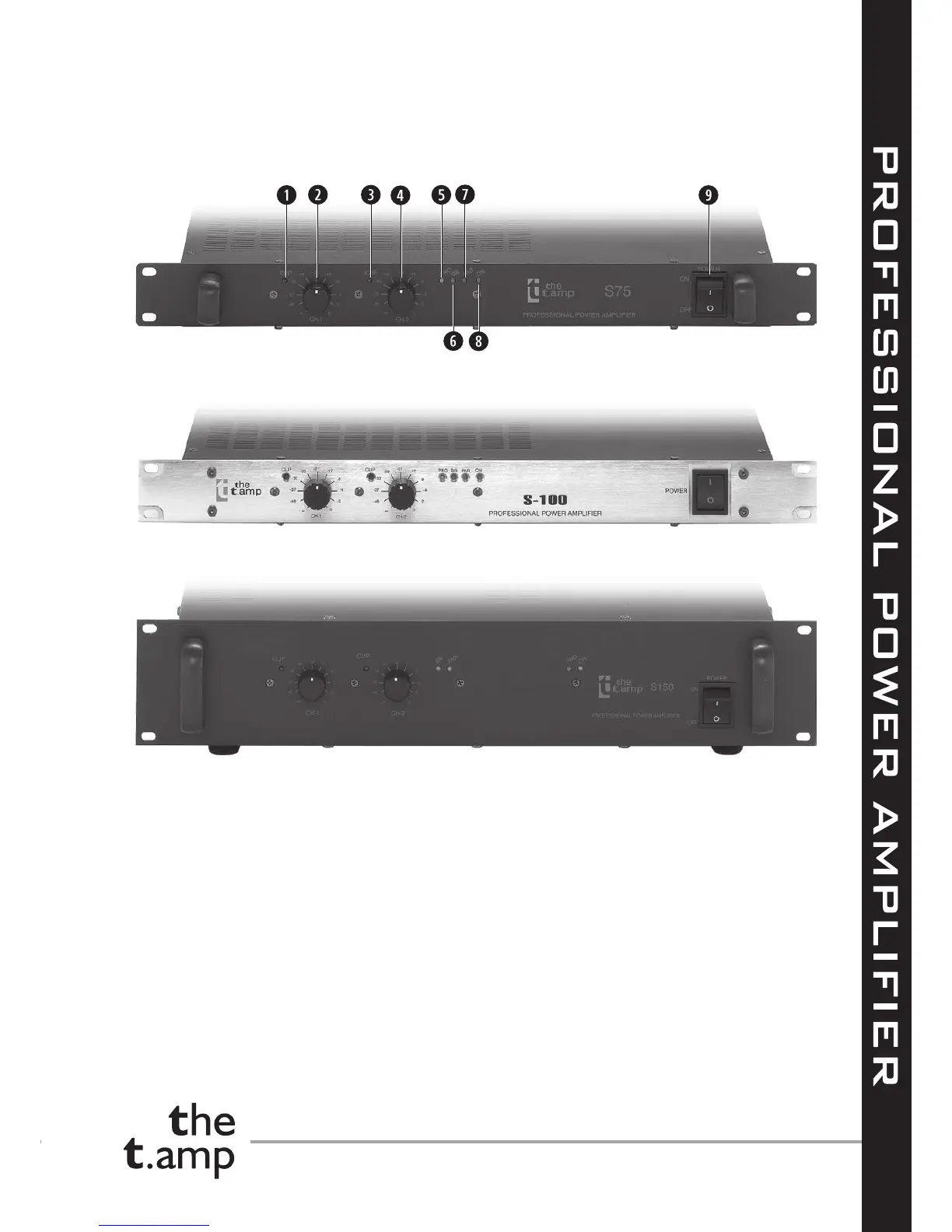

q CLIP Indicator for maximum level in channel 1
This indicator lights up when the output power of channel 1 has reached its
maximum value. If the indicator lights up continually the power in this channel
must be reduced. For this turn the input level controller for channel 1 w
counter clockwise.
w CH-1 Input level controller for channel 1
With this controller you decrease the input level in channel 1 to the respective
dB value indicated on the scale. At the right end stop the attenuation is "0"
and the full signal is amplied with maximum power.
e CLIP Indicator for maximum level in channel 2
This indicator lights up when the output power of channel 2 has reached its
maximum value. If the indicator lights up continually the power of this channel
must be reduced. For this turn the input level controller for channel 2 r
counter clockwise.
