INSTRUCTION MANUAL

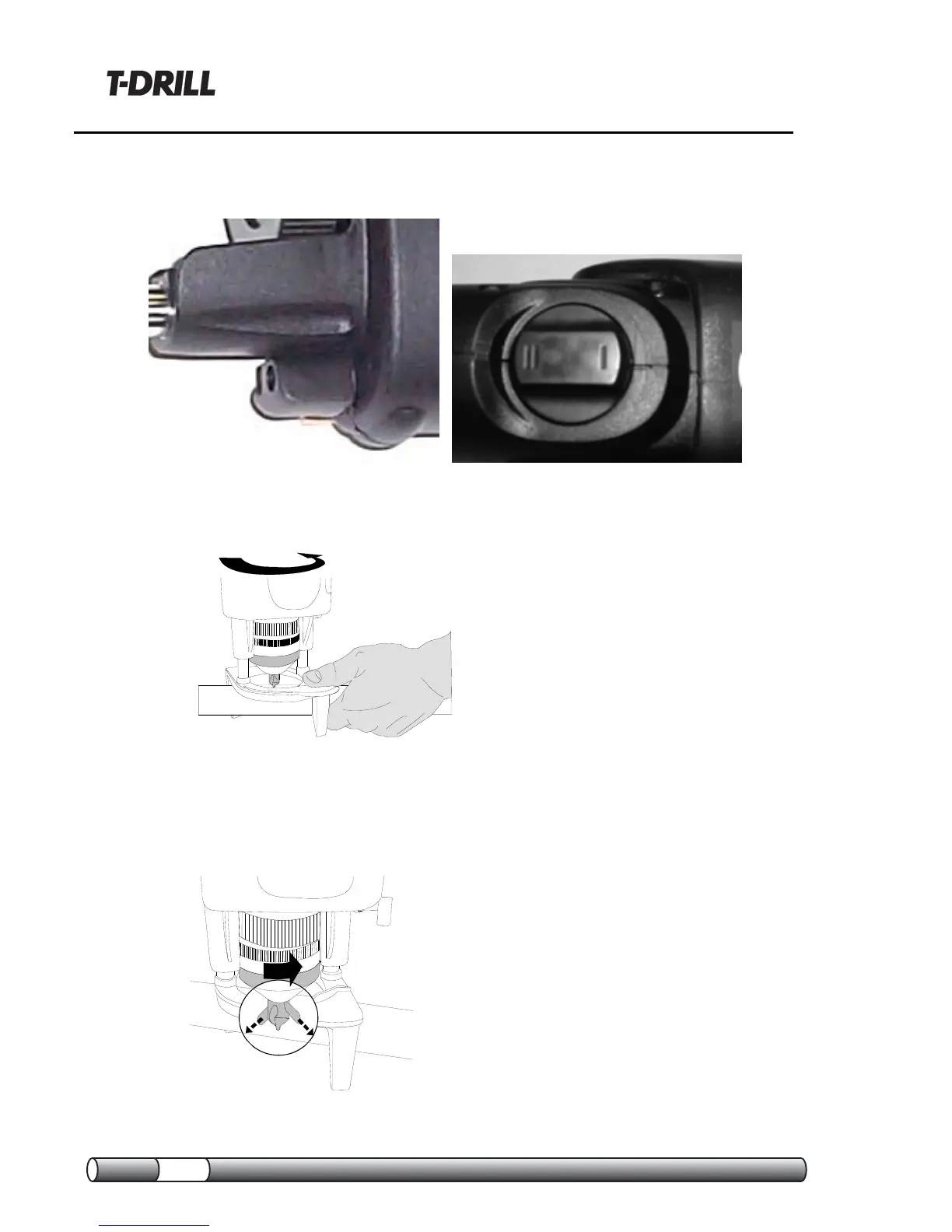

6. Check that the speed selector knob is in position II and the feed
mechanism lever in “off”-position.
7. Pull the support legs out and place
the tube support firmly onto the point
where the tee is to be formed on the
tube, as shown on the illustration.
Press the tube support with the thumb
against the tube and twist the machine
counterclockwise at the handle of the
tool. This centers the T-DRILL head
onto the tube.
8. Start the tool by pressing the trigger
and drill until the bit has fully
penetrated into the tube. Release the
trigger - the machine will stop.
NOTE! If the tool does not have enough power to drill – select the low
speed I and continue drilling. This may be necessary if a long extension
cord is used.
9. Extend the forming pins on the T-
DRILL head by pressing the conical
cover towards the tool and rotating it
counterclockwise until the T-DRILL
head locks into the tee forming
position. Do not extend the forming
pins while the motor is running!
24
