iWorx® PSU1
505-012, Effective: August 10, 2012 7
© 2012 Taco Electronic Solutions, Inc.

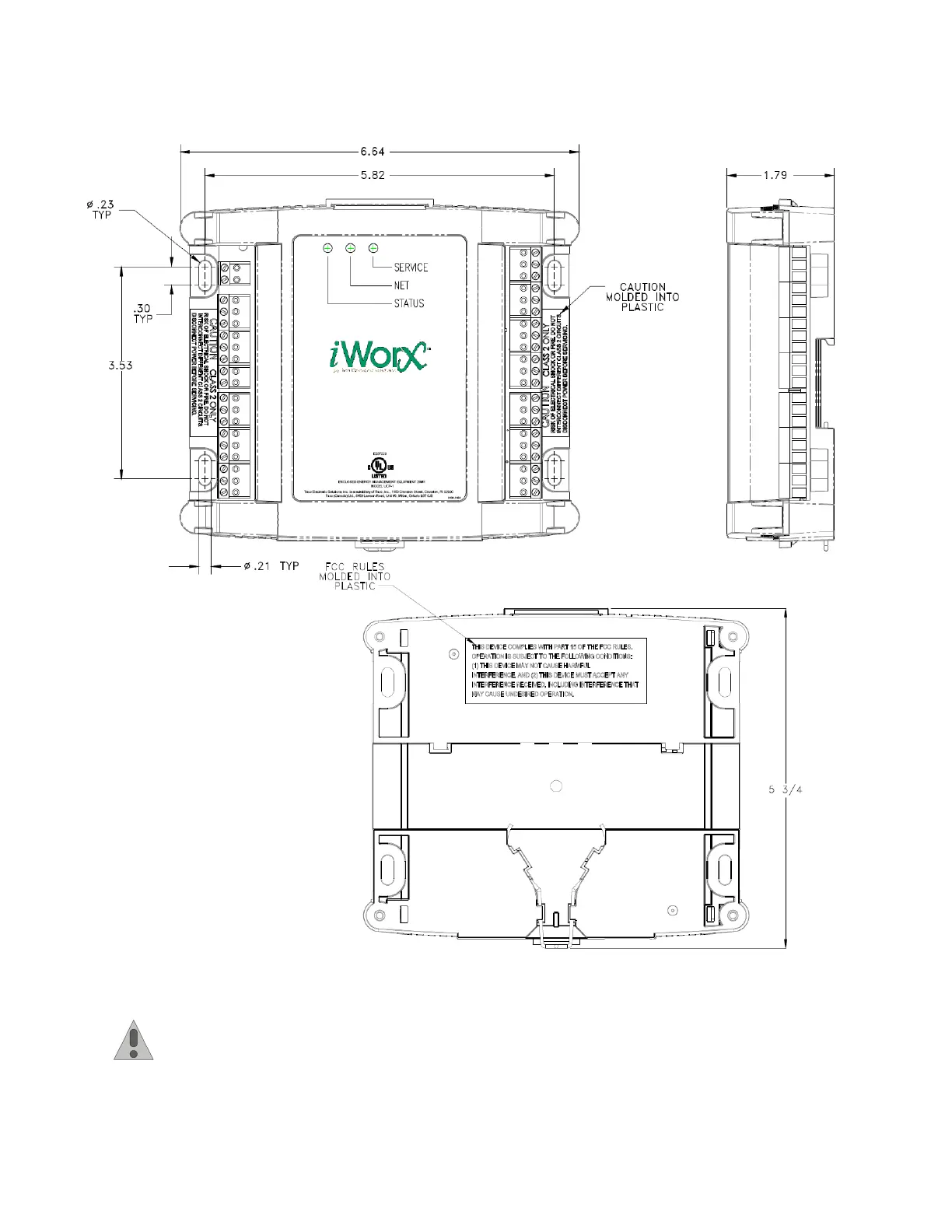

Figure 1: Mounting Dimensions
Routing Cabling to the Device
Cabling used to connect the power source and cabling used to connect the FTT-10A network must remain
separated within the control enclosure and wiring conduit.
