Tadano GR-130EX - 2. Crane External View

Foreword
2
WA04-5470E

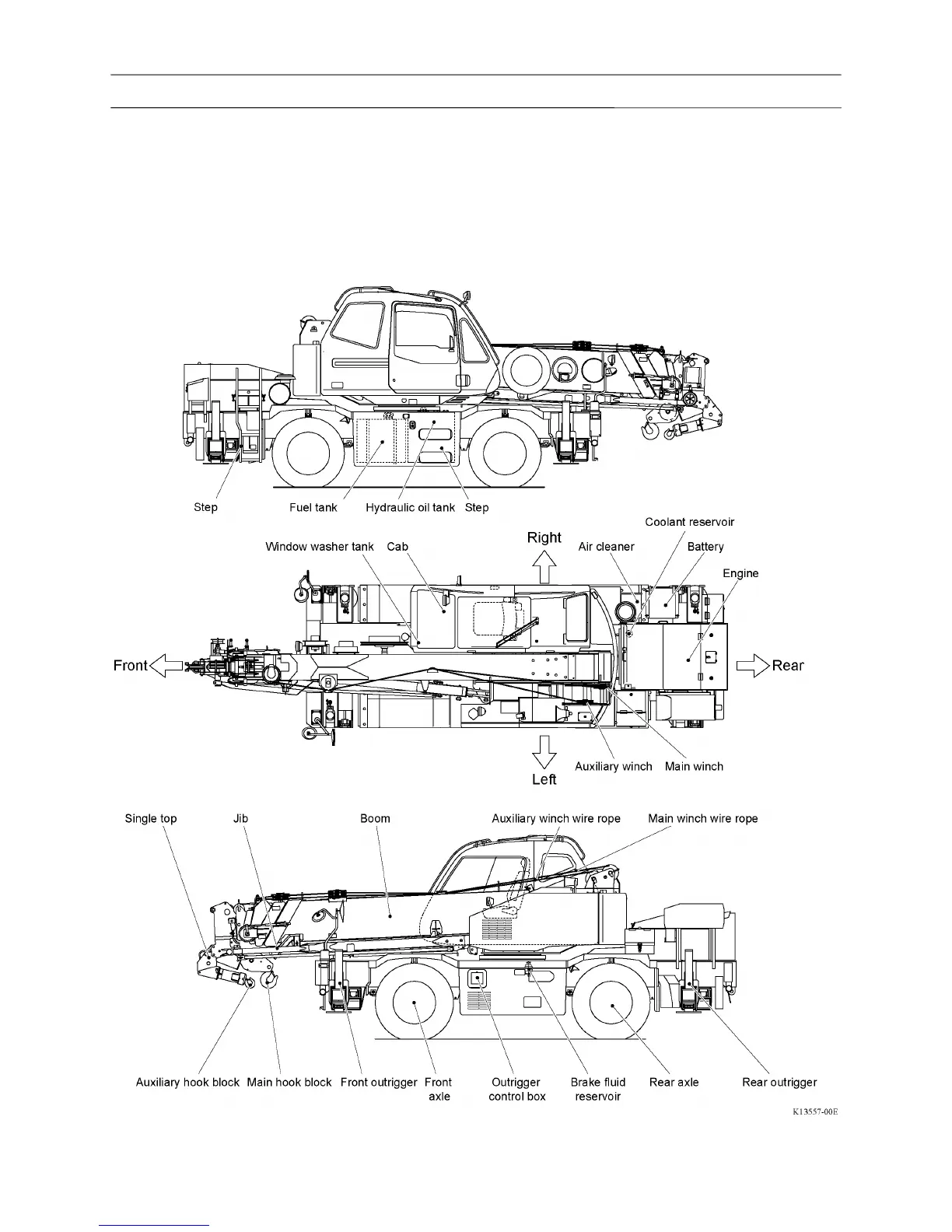

2. External view
The following is the traveling posture of the H-type outrigger specification machine.
Front, rear, right, and left are the directions viewed from a position when operator sits on operator's seat with the
boom directed to the front of the frame. Those directions remain invariant regardless of slewing direction of the
superstructure.
