XT-1/XT Mini Manual 13-111 05, 2015-08-14
Page 25 of 32

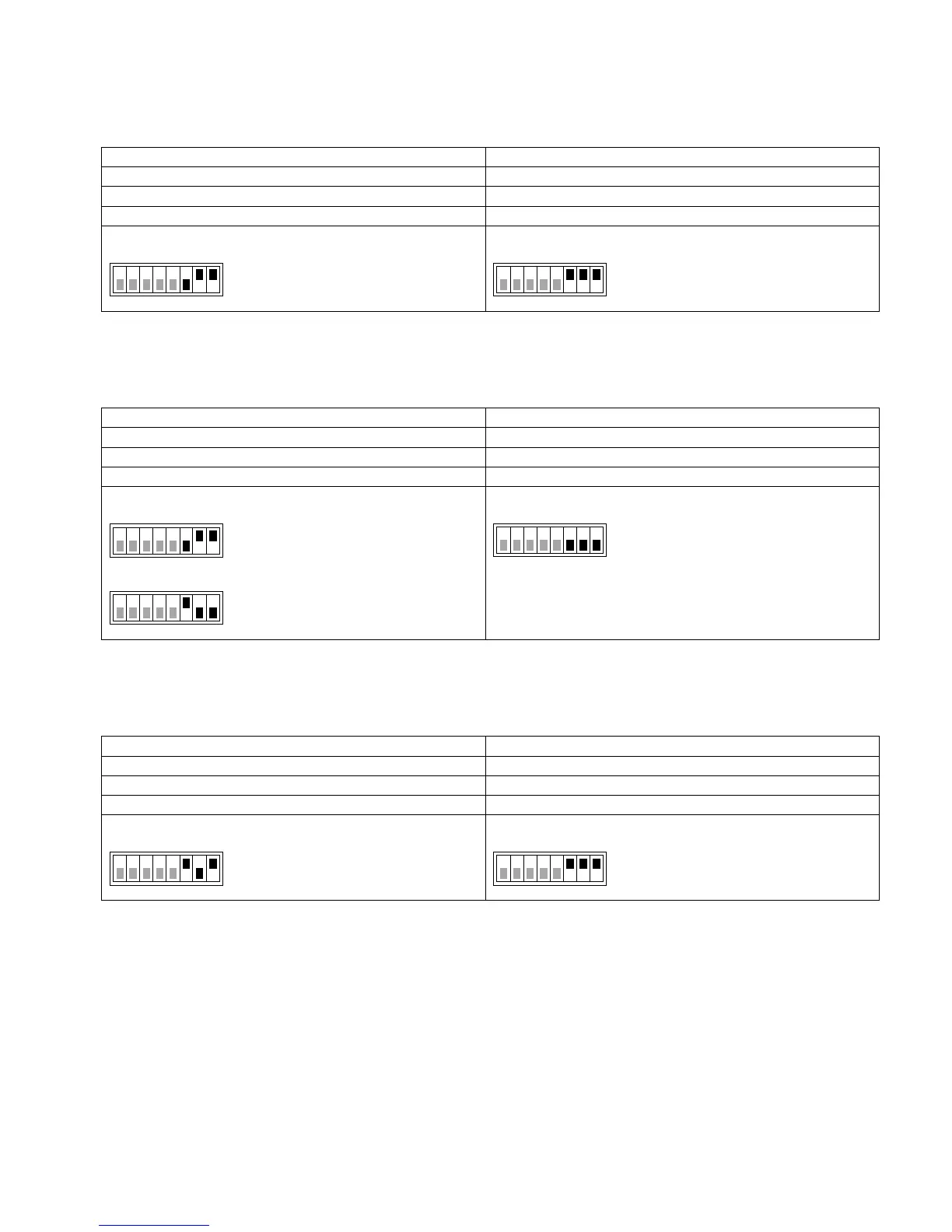

5.1.1.2 AXIS A1001
Configure A1001 to use reader protocol Wiegand with "Dual LED" and set the card format to H10302.
GND

[READER
I/O]
-
IN1+

[READER I/O] 12V
CL/LOAD

N/C
IN1
-

[READER I/O] IO5
D0/CLK

[READER
DATA]
D0
IN2+

[READER I/O] 12V
D1/DATA

[READER
DATA]
D1
IN2
-

[READER I/O] IO4
S101 - Wiegand format: W37N/H10302
S301 - Vigilant pull-ups enabled
Tested version: Firmware version 1.30.0
5.1.1.3 Bewator Entro
Configure the Bewator Entro system to use H10302 format.
GND

0V
IN1+

N/C
CL/LOAD

N/C
IN1
-

N/C
D0/CLK

D0/CLK
IN2+

N/C
D1/DATA

D1/DATA
IN2
-

N/C
S101 S301 - Vigilant pull-ups disabled
Bewator Entro ≥ 6.5:
Wiegand format:
W37N/H10302
Older versions:
Wiegand format:
W37R/H10302
Tested version: Bewator Entro 6.55.011
5.1.1.4 Bewator Omnis (with E2V)
The Vigilant reader behaves as a RB500 reader in Clock&Data mode.
GND

[Conn. G]
-
IN1+

[Conn. G] +12V
CL/LOAD

[Conn. E] A
IN1
-

[Conn. G] G
D0/CLK

[Conn.
E] B
IN2+

[Conn. G] +12V
D1/DATA

[Conn. E] C
IN2
-

[Conn. E] R
S101 - Magstripe format: M8N/H10320
S301 - Vigilant pull-ups enabled
Tested version: Bewator Omnis 6.0.107
1 8
ON
S101
1 8
ON
S301
1 8
ON
S301
1 8
ON
S101
1 8
ON
S101
1 8
ON
S101
1 8
ON
S301
