Taie FA230 - Proportional Control

FY operation manual 52
Example(4) only use SOAK_B (ALD1=19)
Boot completed, the alarm1 is OFF, and the PV is directly controlled at 100 °C. when the PV reaches 100 °C, the temperature is kept
for 10 minutes. after 10 minutes alarm is turned ON and the control function keep ON
Parameter setting
Level
Parameter
Set value
Description
1
SV
100.0
Target temperature
3
ALD1
10
AL1 as soak timer
1
SOAK(AL1)
00.10
Soak for 10 minutes
time
Temperature
100.0
25.0
Time up
Alarm=ON
SOAK
10 minutes
5
seconds
PV
time
Action
OFF
ON
Temperature rise
Alarm=OFF

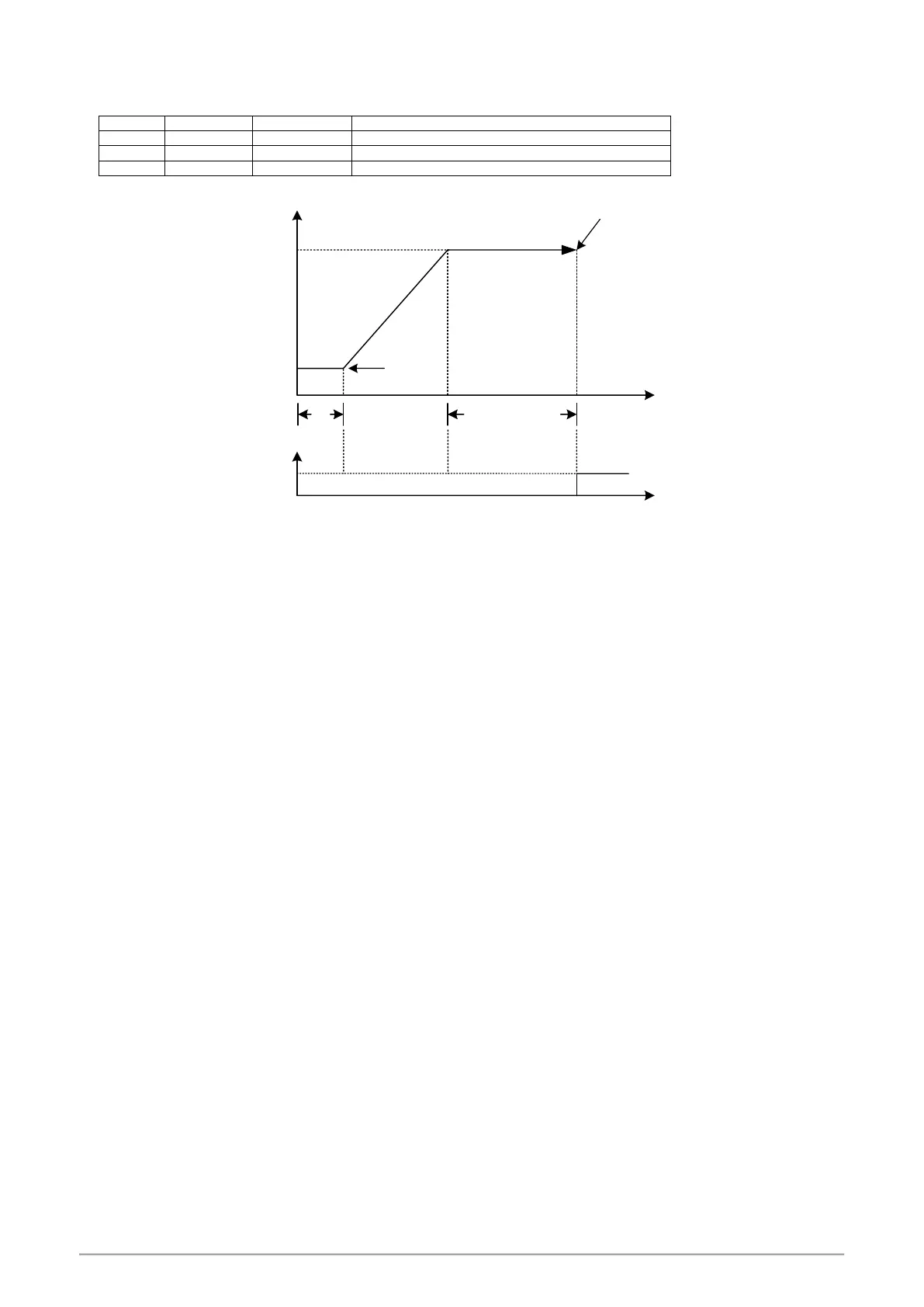

PV time chart
AL1 time chart
