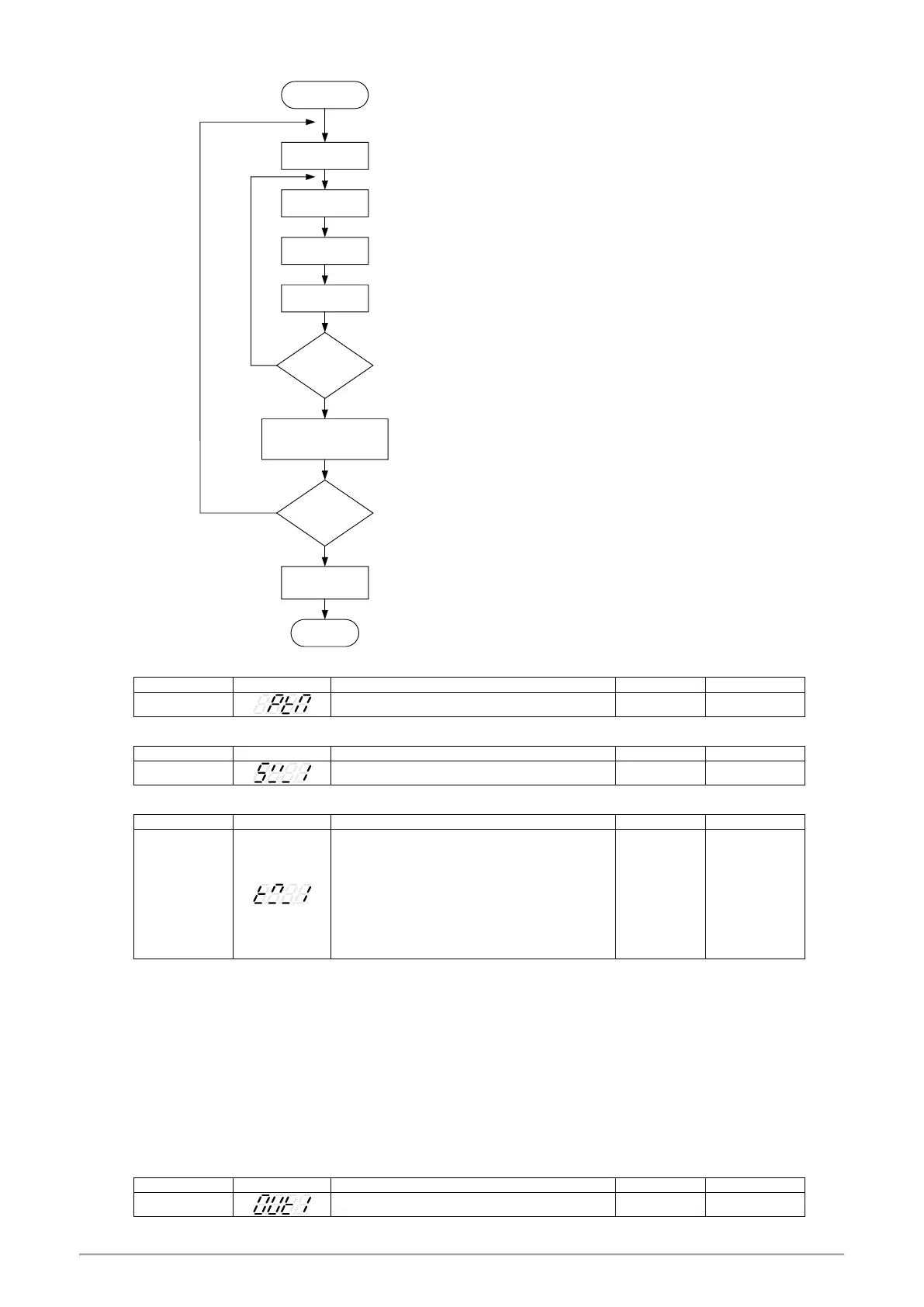

Program edit flow-chat
START
Edit next
segment ?
END
YES
NO
YES
Set PTN
Set SV_n
Set TM_n
Set OUTn
※ n : 1~8
Edit next segment SV= 0
Edit next segment TM= END
Edit next
pattern ?
NO
PV/SV monitor
1. Choose program pattern number
Parameter
LED display
Description
Default
Level
PTN
Program pattern selection 1~18
1
Level 1
2. Setting segment n target SV
Parameter
LED display
Description
Default
Level
SV_n
Segment n SV (n=1~8)
0
Level 1
3. Setting segment n TM
Parameter
LED display
Description
Default
Level
TM_n
Segment 1 execute time setting, this parameter
determines the link between segment and
segment or pattern and pattern
END(-1) : program end in this segment
0.00 : program step change in this segment
0.01~99.58 : program in this segment execute
time
99.59 : program continue execute in this
segment, no end
0
Level 1
TM setting explain
：
In segment_5(SEG_5) setting TM_5 =END  When the program finishes segment_4(SEG_4), program end and display “END”
Message in segment_5(SEG_5).
In segment_5(SEG_5) setting TM_5=0.00  When the program finishes segment_4(SEG_4), enter next segment, SV change
suddenly.
In segment_5(SEG_5) setting TM_5 =10.00  When the program finishes segment_4(SEG_4), enter next segment and
executing TM_5 setting value.
In segment_5(SEG_5) setting TM_5 =99.59  When the program finishes segment_4(SEG_4) , enter next segment and
executing continuously.
4. Setting segment n OUTn
Parameter
LED display
Description
Default
Level
OUTn
Segment n output limit (n=1~8)
100.0
Level 1
