1. INTRODUCTION
CNC-110STD synchronous spreading controller, CNC-110STD IS an integrated design device,
putting micro controller, step motor diver and power supply circuits into one control box,
simultaneously achieving size reduction, high performance and low cost.
C120 program edition is design for synchronous spreading device, to spread wire, cable, yarn,
and coil.
2. Features

Microprocessor design, easy for program-setting handling.

Non-battery design, using EEPROM for saving memory and can retain it for 10 years.

Build-in step motor drive circuit for guiding traverse, direct to drive two phases 2.0A step
motor.

With power failure protect function, can continue the unfinished work after power restored.

Power source AC100V~AC240V 100w MAX. 50/60Hz.

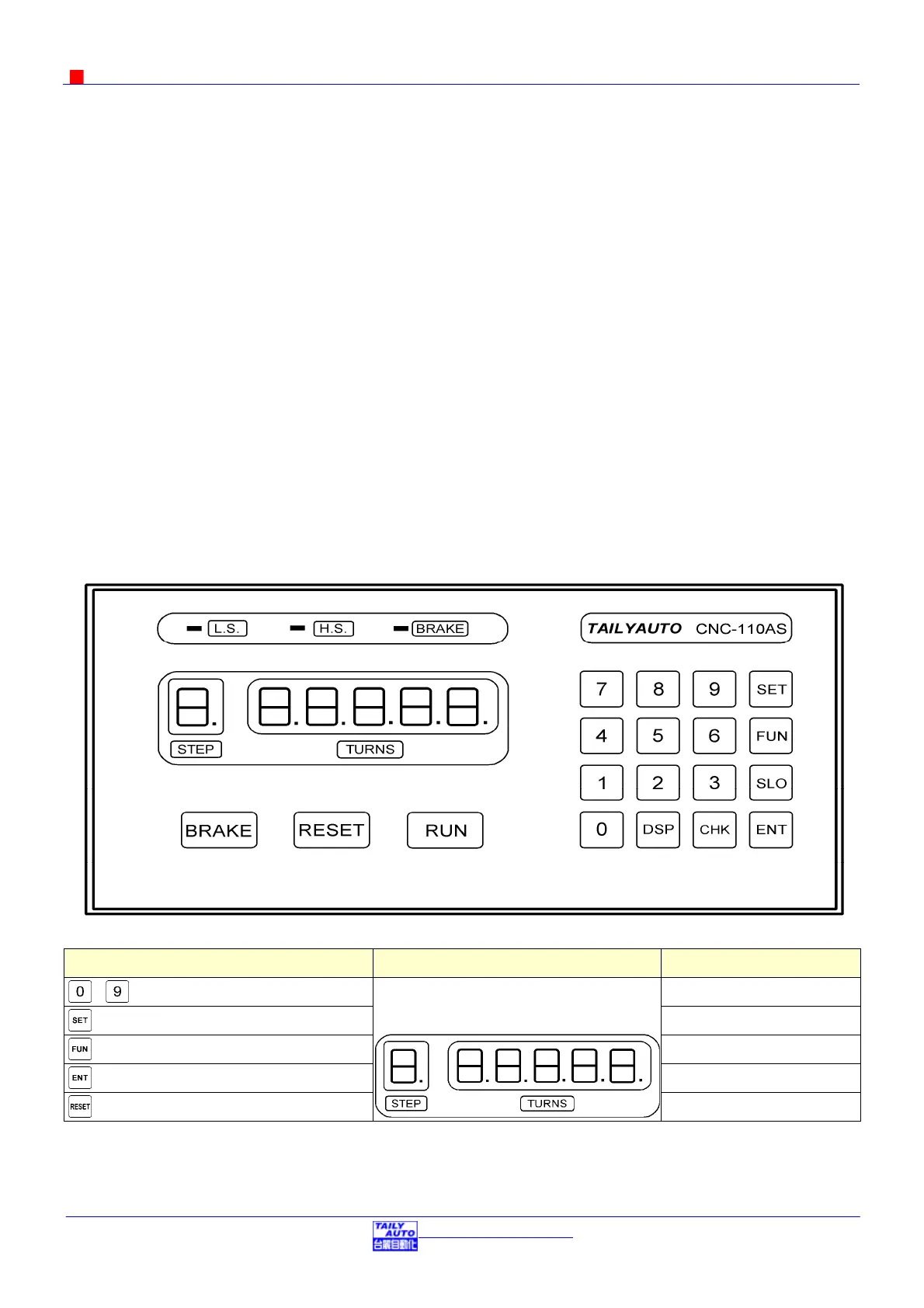

3. FRONT PANEL
Key pad Display Indicator
~
Ĉ
Entering numerical values.
L.S.
Ĉ
No function.
Ĉ
parameter setting.
H.S.
Ĉ
No function.
Ĉ
Function select .
BRAKE
Ĉ
No function.
Ĉ
Enter.
Ĉ
Reset.
STEP
Ĉ
Item display.
TURNS
：
Data display.
