Transportable Base Station/Repeater User’s Guide Introduction 11
© Copyright Tait International Limited December 2020
2Introduction

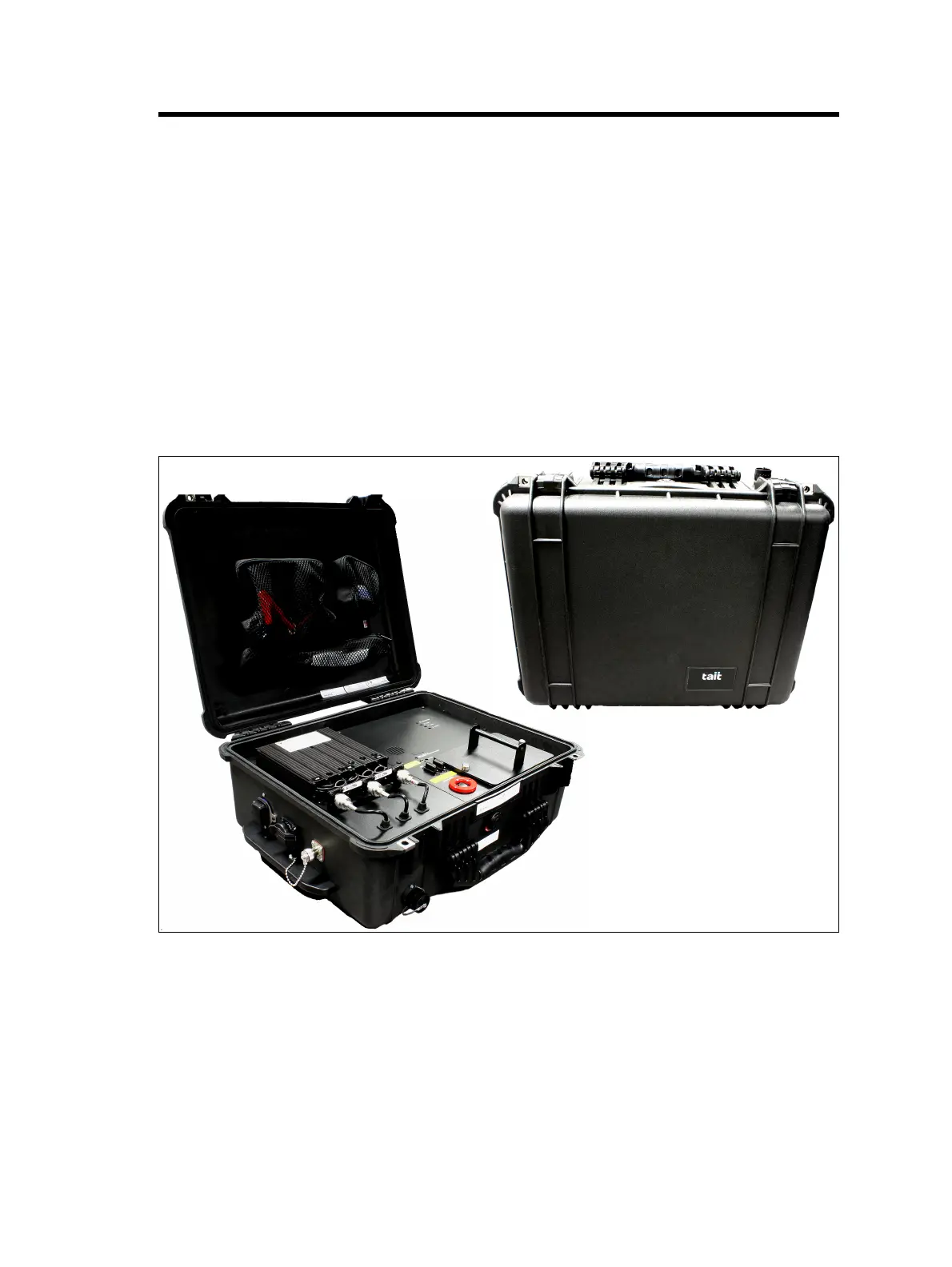

The Transportable Base Station/Repeater is a complete transportable radio
solution in a rugged case with three power supply options. It consists of:
■ a TB7300 repackaged into a rugged Pelican case with an internal AC
supply
■ an internal 12V, 15AH SLA battery
■ a charge circuit for AC supply to charge the internal battery
■ switching circuits for AC and DC supplies
■ an external DC supply input
Notice The Transportable Base Station/Repeater was designed to be
waterproof, but should not be operated in the rain with the lid open.
An N-type antenna connector on the outside of the case enables a sturdy
external antenna connection. An Amphenol screw-lock connector for the
DC input is also located on the outside of the case.
Four LEDs indicate the status of the repeater. Two further LEDs are present
on the inside top panel to indicate the status of the battery while charging.
The Shurter three-pin mains socket is located on the left side for AC Mains
connection. The Ethernet connection is via a waterproof RJ45 connector on
the outside of the case.
