16 Basic Operation Transportable Base Station/Repeater User’s Guide
© Copyright Tait International Limited December 2020
3.7.3 Charge
This LED is only lit when an AC supply is connected.
Set the battery select switch to EXTERNAL AC/DC when charging the
battery with AC Mains.
External DC supply will not charge the internal battery.
3.8 Antenna
The transportable base station is a 15W Repeater that requires a remote
mounted antenna with a suitable ground plane. This antenna and internal
duplexer must be tuned to the frequency of the Repeater. The transportable
base station has an N-type antenna connector.
Caution Risk of harm from RF radiation! While the Repeater is oper-
ating (transmitting), you must ensure that there is always a distance of
0.9m between people and the antenna. This is the minimum safe dis-
tance.
3.9 Mains Socket Wiring
The repeater is shipped with a Schurter waterproof AC Mains socket this
will need to be wired by an electrician or electrically registered person.

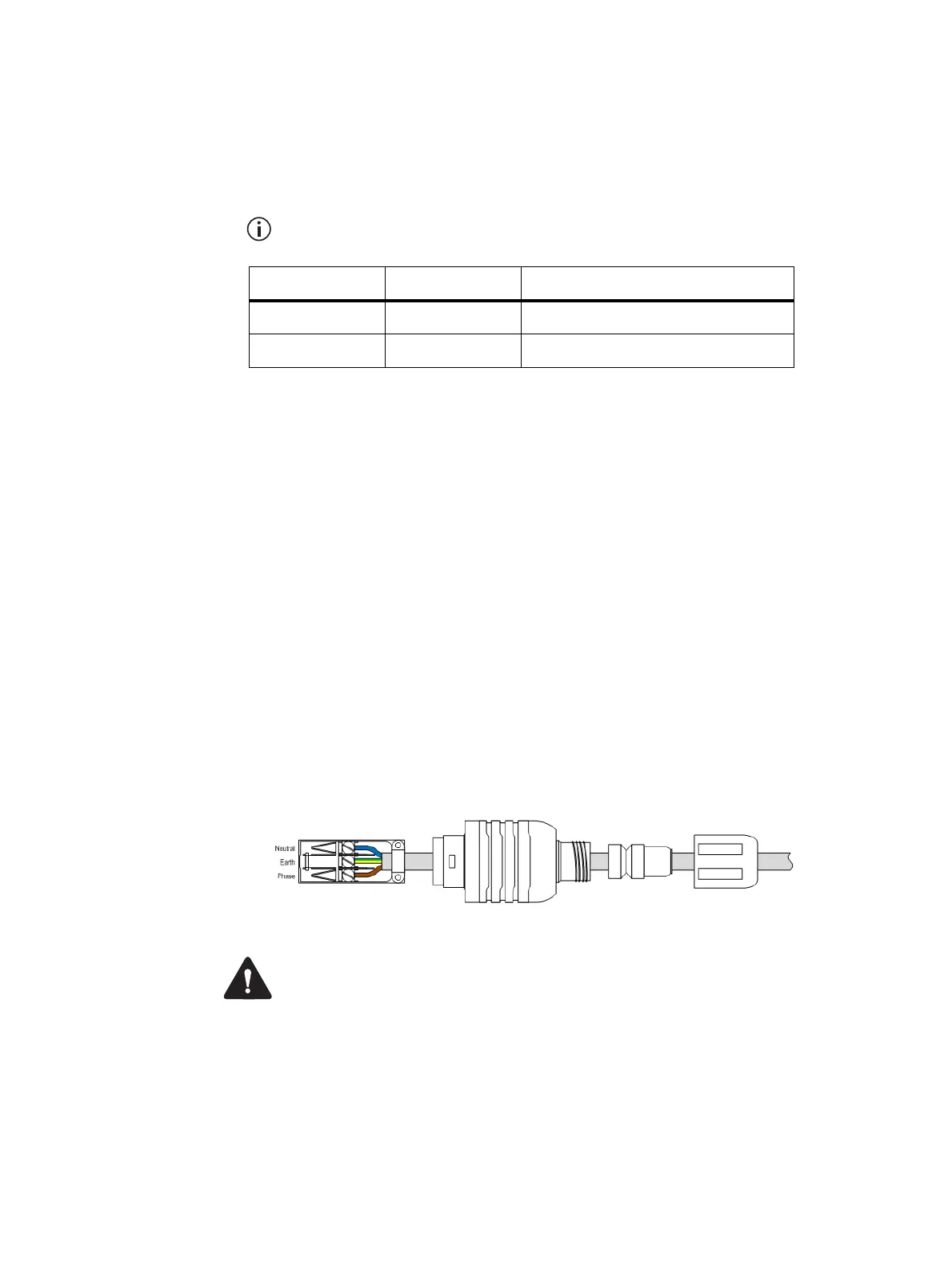

Schurter Mains Socket wiring
Warning Incorrect wiring of AC mains could result in death or
serious injury.
Notice TB7304 is operation-ready. To change any settings, refer to
MBD-00001-xx TB7300 Base Station Installation and Operation Man-
ual.
LED Indication Details
Charge red battery is being charged
Charge off battery is fully charged
