TB8100 Installation Guide Installation 17
© Tait Electronics Limited February 2007
1.8.4 Optional Slide Mounting Rails
You can also use TBAA03-14 slide mounting rails b when mounting the
TB8100 base station in a cabinet, as shown in Figure 1.7 below. These rails
will support the base station while you slide it into the cabinet.
However, you must still secure the base station to the cabinet with four M6
(0.25in) screws through the main mounting holes on the front of the
subrack, as shown in Figure 1.5 on page 15.
Important The slide mounting rails are not suitable for transporting a
cabinet fitted with a fully built-up TB8100 base station. In
this case, you must also fit the TBAA03-13 auxiliary sup-
port brackets to the upper set of rear mounting holes
c.

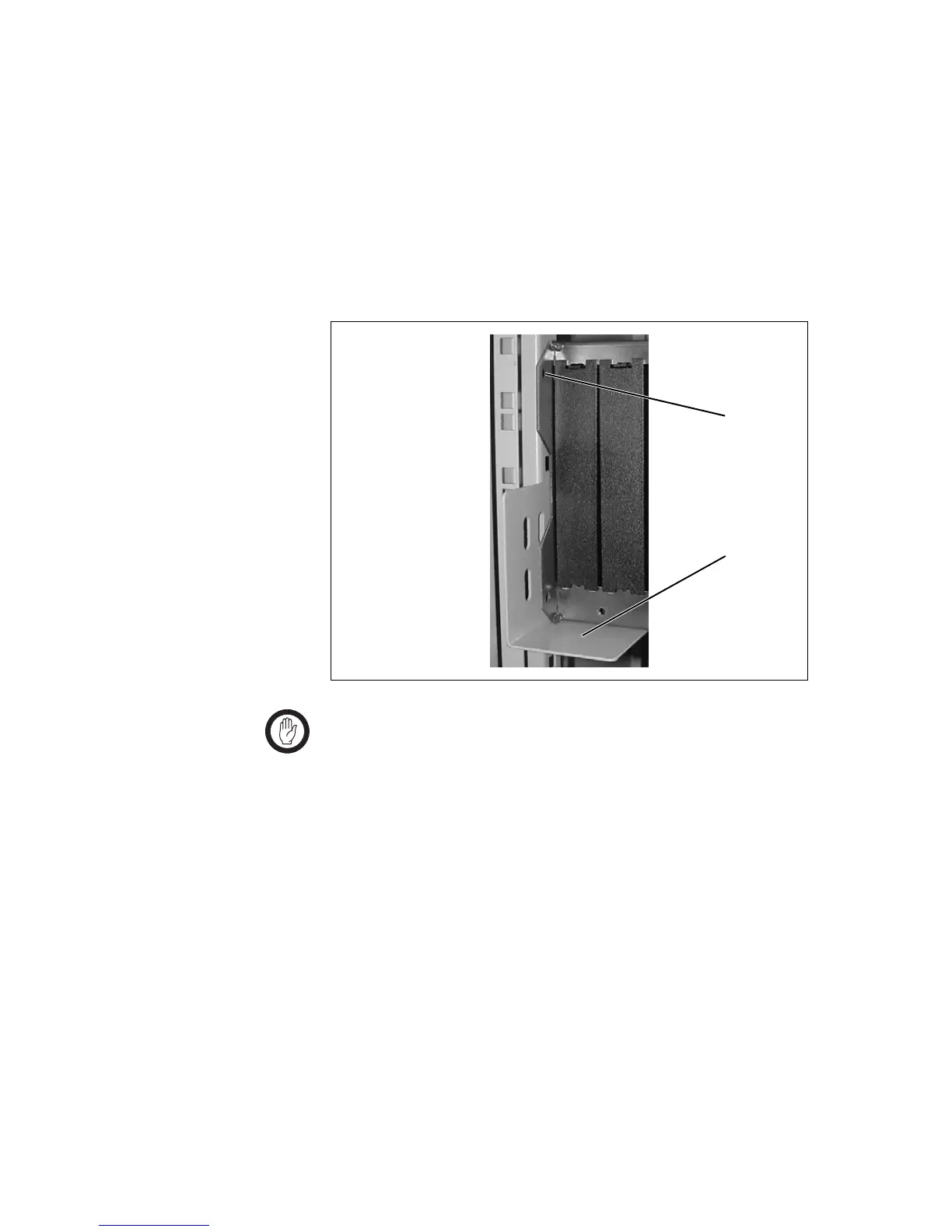

Figure 1.7 Optional slide mounting rail - rear view
b
c
