TM9100 Installation Guide Installing the Radio 15
© Tait Electronics Limited August 2005
1. Plug the control-head loom onto the control-head connector.
2. Insert the bottom edge of the control head onto the two clips in the
front of the radio body, then snap into place.
Removing the
Control Head
Important During this procedure, take care that the control-head seal
is not damaged. Damage to this seal reduces
environmental protection.
On the underside of the radio, two lever points are indicated on the radio
body by a dot-dash-dot pattern ( ). The lever point is between the
control-head seal and the control head.
1. At either of the lever points, insert a 3/16 inch (5mm) flat-bladed
screwdriver between the control head and the control-head seal.
2. Use the screwdriver to lift the control head off the chassis clip, then
repeat in the other position. The control head can now be removed
from the radio body.

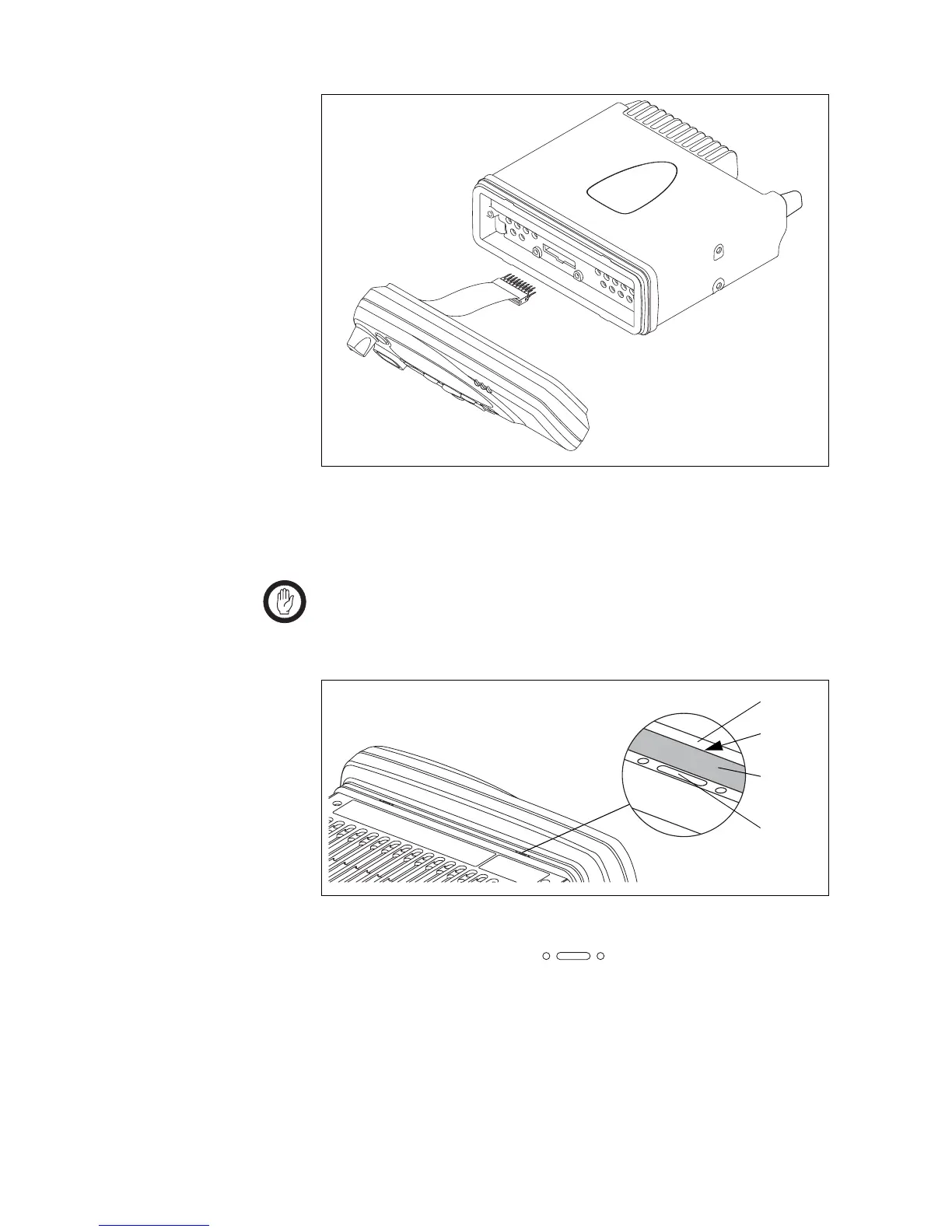

Figure 2.1 Mounting the control head
Figure 2.2 Removing the control head
lever point
indication of
lever point
control-head
seal
control head
