36 Tait Orca Portable (TOP) Encryption Midian Encryption Programming and Service Manual
June 2006 © Tait Electronics Limited

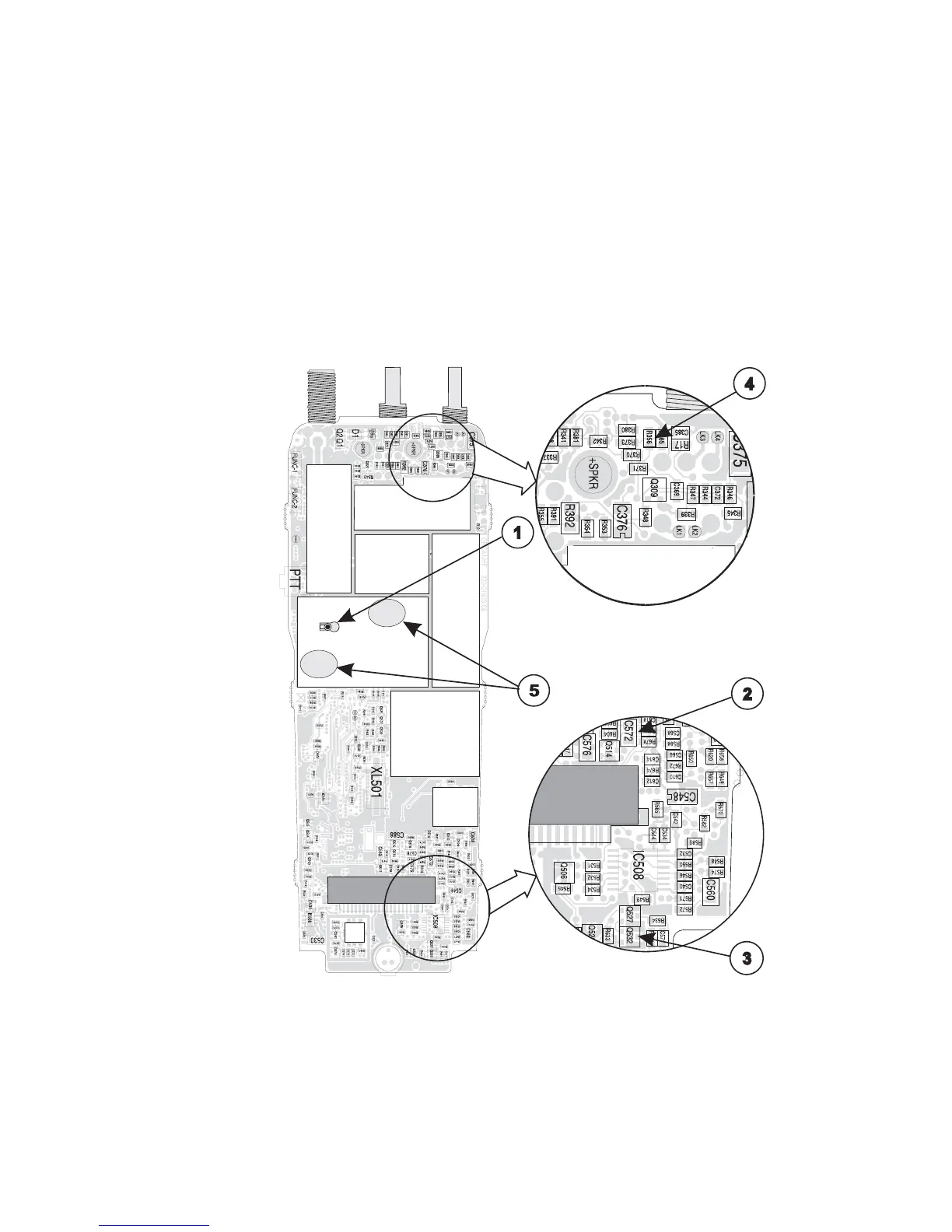

Modify TOP PCB (bottom side)
1. Use Torx screwdriver to undo screw and remove PCB from chassis
2. Remove component C572 using hot air gun and tweezers
3. Remove component Q532 using hot air gun and tweezers
4. Remove component R356 using hot air gun and tweezers
Note R356 is the left component of a pair with R365
5. Pre-wet cans in positions indicated.
Note These positions will correspond to earthing points on flex.
