Decision of an embroidery design and the color change sequence
50
Chapter 4
XL08
4-2. To decide color change sequence (Needle Bar Selection)
This setting is unnecessary when the color change sequence is already included as the condition data in the
design to be embroidered from now.

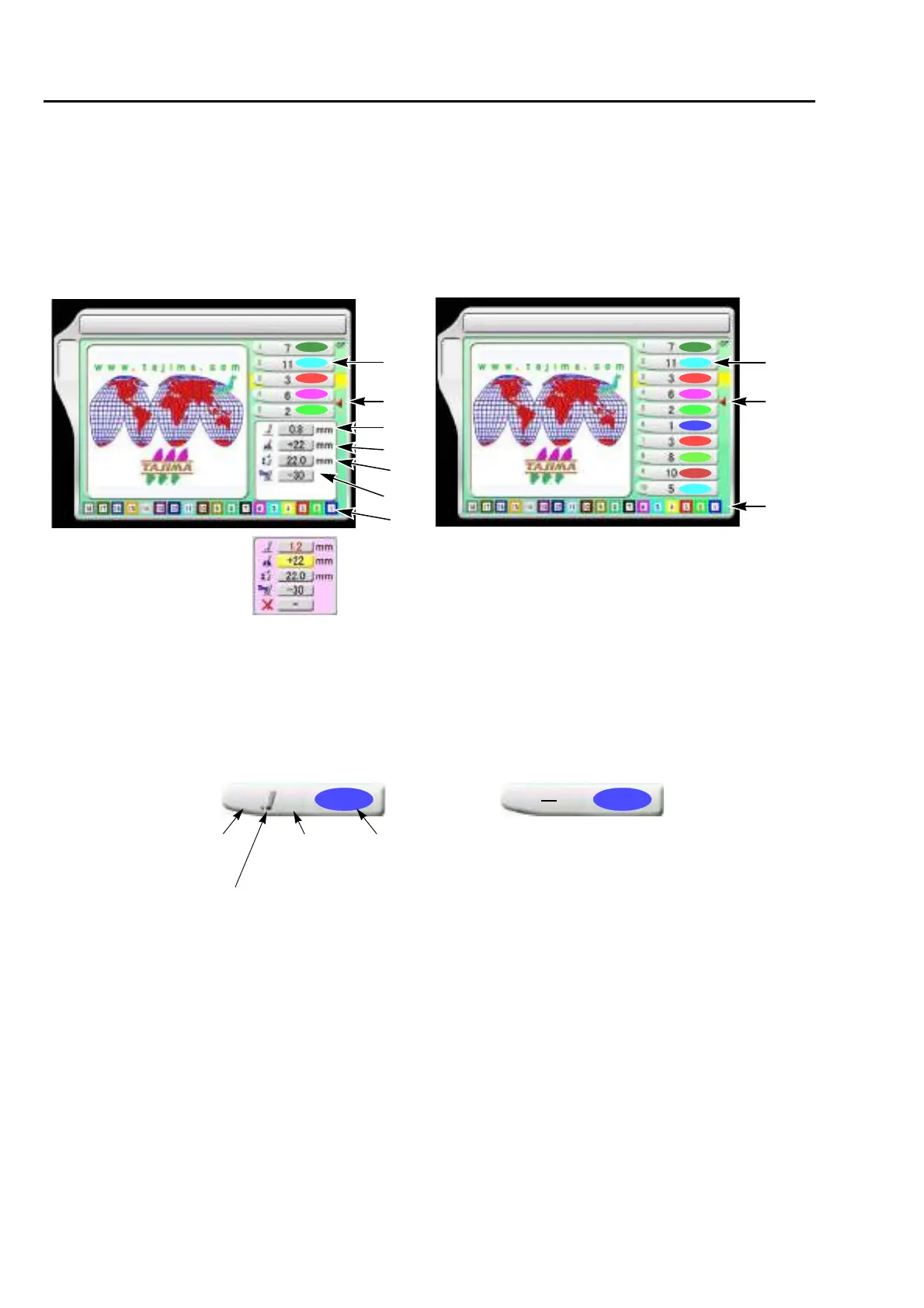

4-2-1. Explanation on the screen
[a] Step
The section divided by a color change code in the design data. The first section is called step 1,
and the next section is called step 2.
Step display differs depending on with/without setting of "Auto Color Change (AC)".
[b] Offset mark
The illustrated example shows that the frame moves to the front after finishing of step 3.
However, to move the frame, the setting of "Automatic Offset" is necessary.
[c] Presser foot lower dead point
Distance between the presser foot and the needle plate when the presser foot moves down to
the lower dead point
Setting range: 0.3 to 6.3 (mm)
2 Needle Bar Selection
B
[a]
2 Needle Bar Selection
B
[b]
[a]
[TMBR-SC] [TMBP-SC]
[c]
[d]
[e]
[f]
[g]
[b]
[g]
The value changed will be
displayed in red. Furthermore, the
background will turn pink.
1
5
Step No.
Needle bar No.
Setting color of needle bar
The color can be changed per each needle bar.
With setting Without setting
It is displayed when performing the presser foot step unit setting. (TMBR-SC only)
(p.52)
The setting value here is give priority to over "Setting in units of needle bar". Also, the
value set here is not reflected in "Setting in units of needle bar".
To Next Page
