XL08
[d] Presser foot F.B. lower dead point
The distance from the presser foot lower dead point to the presser foot at the time of frame back
Setting range: +5 to +22 (mm)
[e] Presser foot stroke
Stroke mode of presser foot
Setting range: Auto, 2.0 to 22.0 (mm)
Auto：
2.0 to 22.0 (mm):
[f] Presser foot timing
Timing when presser foot moves down
Setting range: -20 to +20
[g] Needle bar color
Display the color being set in "B-10 Needle Bar Color".

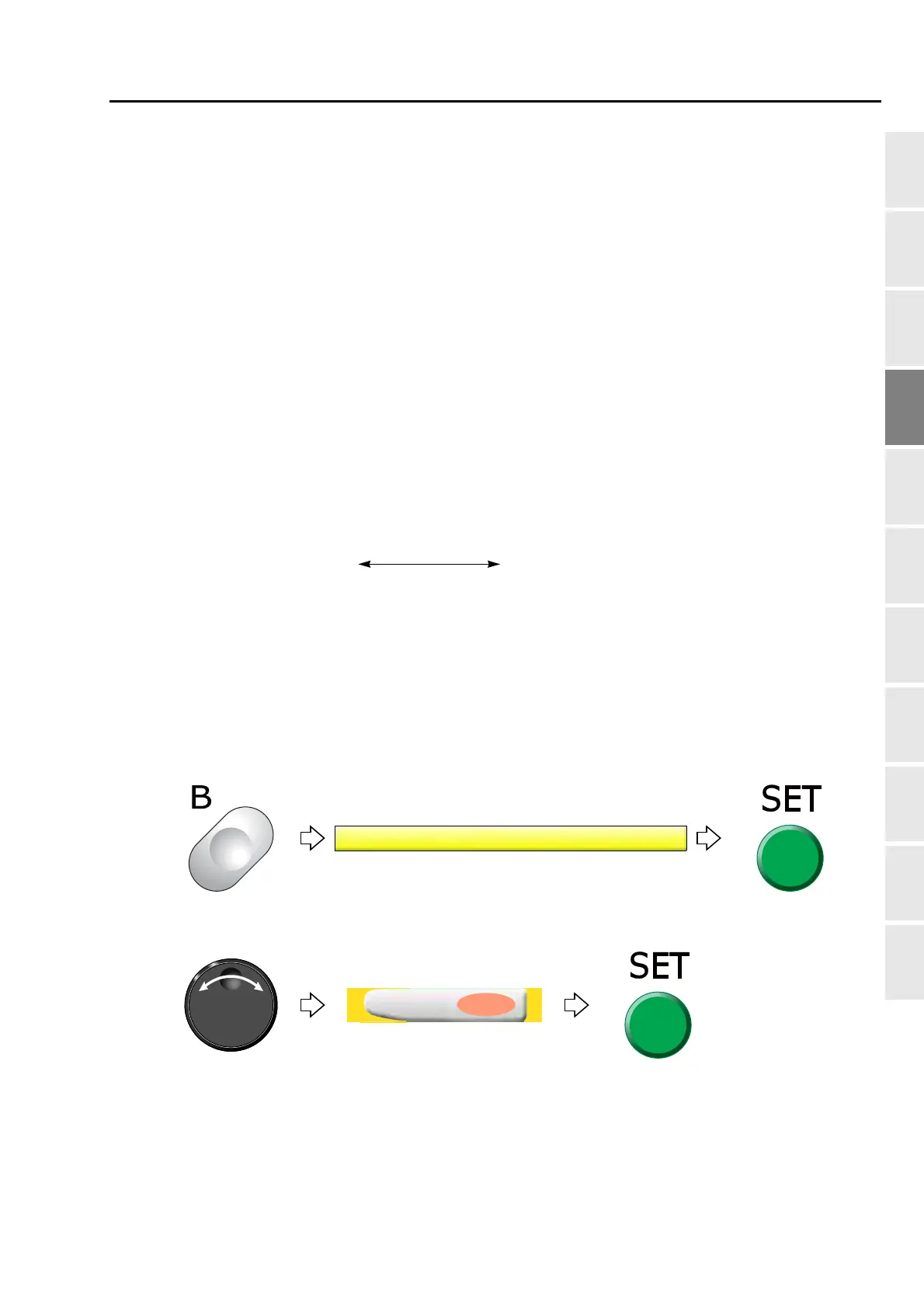

4-2-2. How to operate (not to insert offset mark)
The following is an example of setting step 1 to the needle bar No.4.
(1) To open screen
(2) To select needle bar No. to use at step 1
Set also other needle bar No. in the same procedure.
According to maximum speed of the machine, the presser foot will perform Stroke
automatically (usual setting).
Stroke amount of presser foot
The maximum speed of the machine is limited depending on stroke
amount. (The stroke amount is always fixed.)
