To trim thread
81
Chapter 5
1
2
3
4
5
6
7
8
9
10
11
QS07
(3) To select thread trim length
When "N" is displayed, changing "N" to a value will set the detecting sensitivity in all needle bars to the
same.
(4) To select "M.shaft Inching after ATH".
2-4. To change thread breakage detecting sensitivity (Thread Detection)
Use this function in the following cases.
(1) Thread breakage is detected even when thread is not broken.
(2) Thread breakage detection timing is late.
2-4-1. Explanation on the screen
[a] Setting how many consecutive detections of upper thread breakage are regarded as thread
breakage
0: Not to stop even if upper thread breaks
When idling the machine, set "Upper" and "Under (Unit)" to "0".
N: To stop if upper thread is broken (the detecting sensitivity differs in each needle bar) (p.113)
1, 2, 3, 4: To stop if upper thread is broken (Detecting sensitivity is the same in all needle bar)
When selecting "3", the thread breakage will be detected after upper thread breaks three
times continuously.
+2
3
F2
N

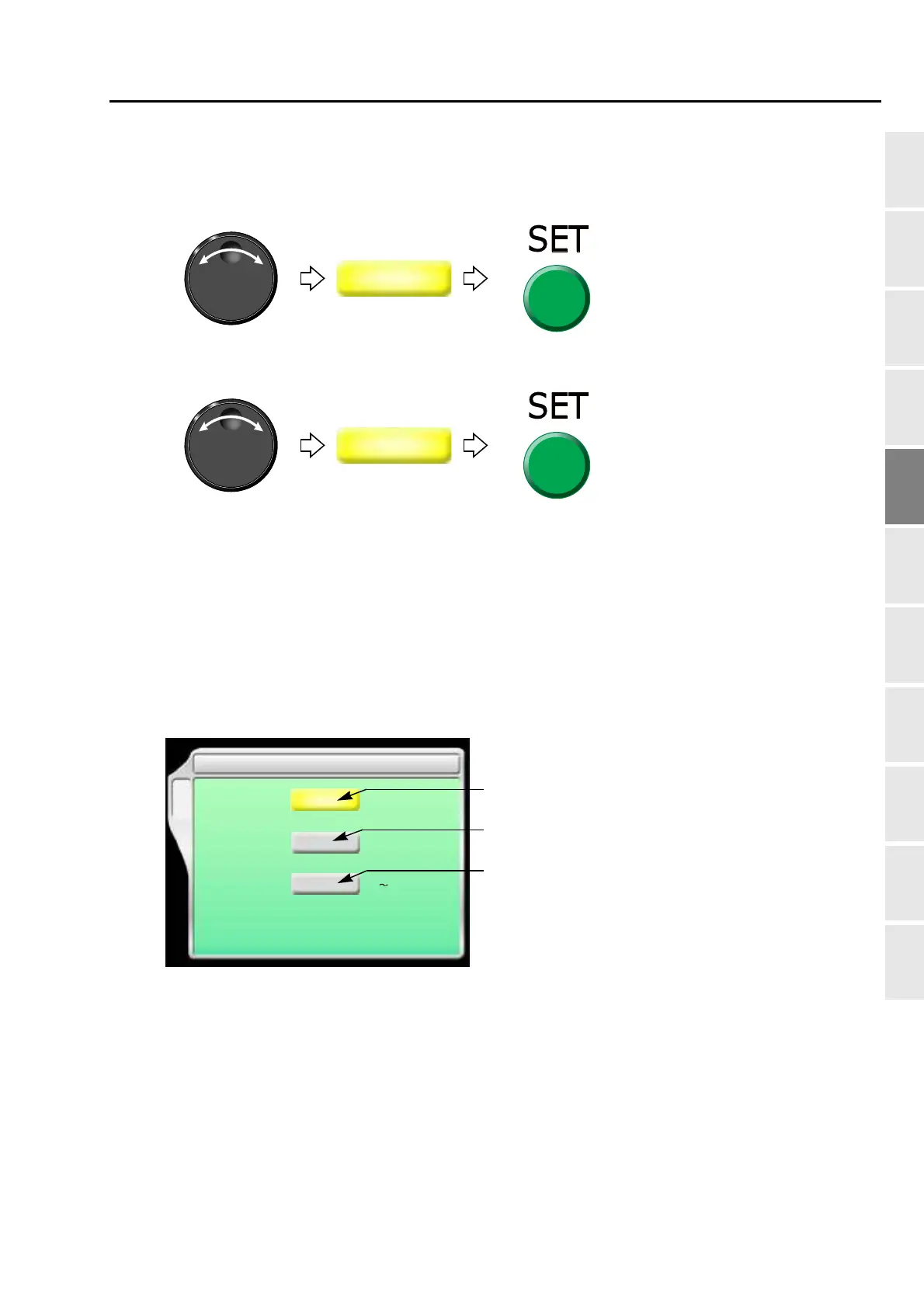

6 Thread Detection
0/1/2/3/4
70
Upper thread
Under (Unit)
Under (Step Ratio)
4
0/2/4/6/8
30 100
[%]
[b]
[c]
