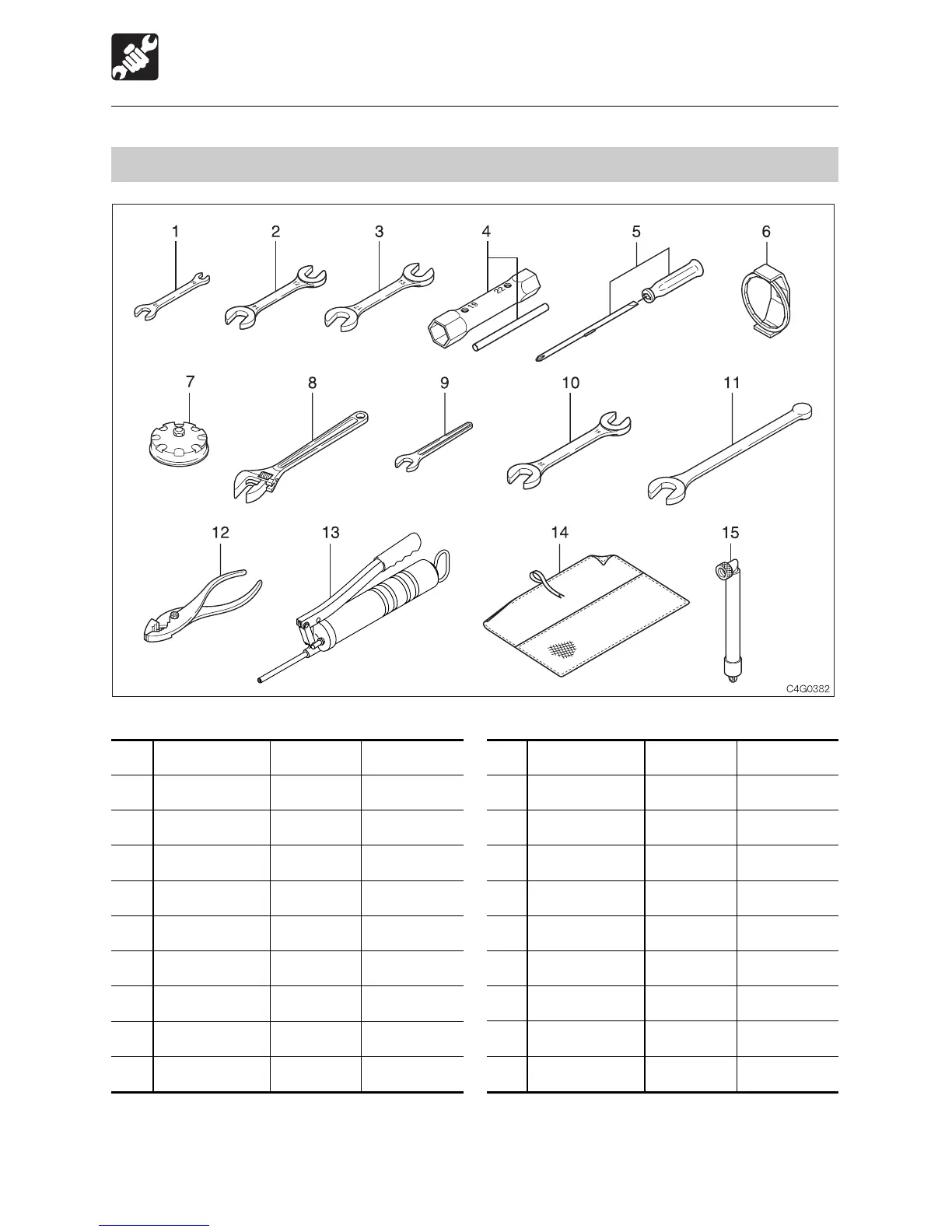

MAINTENANCE
Service Data
T
ools
No.
Part name
Part No.
Remarks
Part name
No.
Part No.
Remarks
1
Spanner
19102-12081
10-12 <TB014>
1
Spanner
19100-47081
10-12 <TB016>
2
Spanner
19102-12082
12-14 <TB014>
3
Spanner
19102-12083
13-17 <TB014>
3
Spanner
19100-47082
14-17 <TB016>
4
Socket wrench
19102-12084
19-22 <TB014>
5
Screwdriver
19102-12085
(+) (–) <TB014>
5
Screwdriver
19100-061
12
(+) (–) <TB016>
6
Filter wrench
03392-22610
< TB014 >
7
Filter wrench
19100-96081
< TB016 >
8
Monkey wrench
16904-00250
250mm
9
Spanner
16901-00013
13
10
Spanner
16900-01922
19-22
11
Spanner
16909-00026
26
12
Pliers
16905-00200
200mm
13
Grease gun
16910-60600
600cc
14
T
ool case
16914-00001
15
Drain connector
15545-12201
for EU
101
103
