OPTIONS
High-back Seat
Seat
WARNING
Adjust, secure and latch the operator’s
seat.

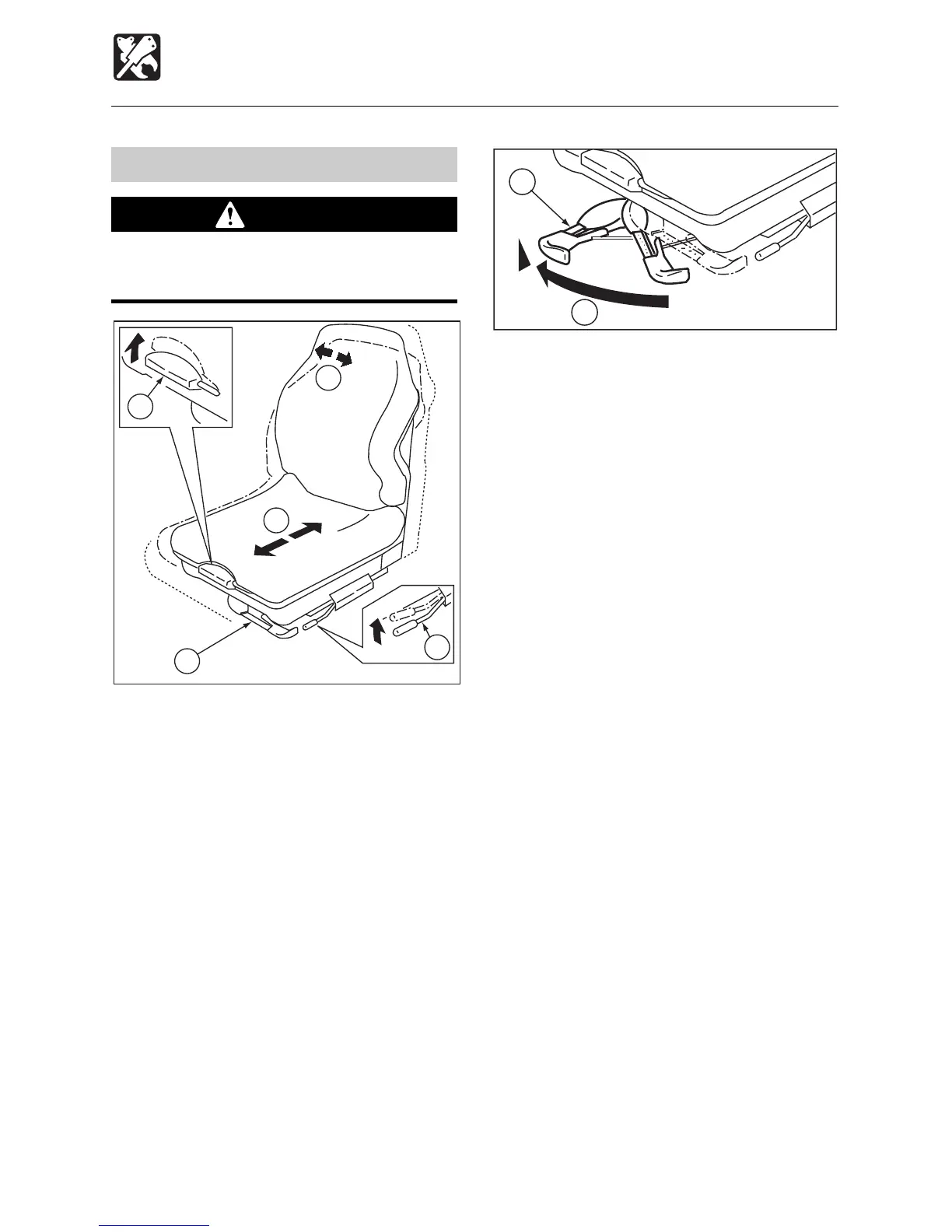

(A) Back angle adjustment
1. Raising your torso, sitting down firmly in
the seat.
2. Pulling lever (1) allows you to use the
pressure of the springs in the seat pressing
against your back to adjust the reclining
angle of the seat back. Release the lever
(1) at the desired angle and the seat back
will be locked in that position.
(B) Fore-and-aft adjustment
1. Pull on lever (2) and slide the seat
backward or forward to bring it to the
optimum position for operating the
machine.
2. Release the lever (2) at the desired
position and the seat will be locked there.
Adjustment stroke: 10 steps,
150 mm (5.9 in.)
(C) Weight adjustment
1. Turn handle (3) to the front side and set it
to indicate the weight of the person to
operate the machine.
May be set to any value from 10 kg (22
lbs.) steps, 50 to 130 kg (110 to 287 lbs.).
2. When adjusting for a weight lower than
the currently set weight, first turn handle
(3) as far as it goes to cancel the setting,
then readjust.
(287 lbs.)
(110 lbs.)
2
C4L016
B
A
3
1
3
130kg
50kg
C4L017
C
