37

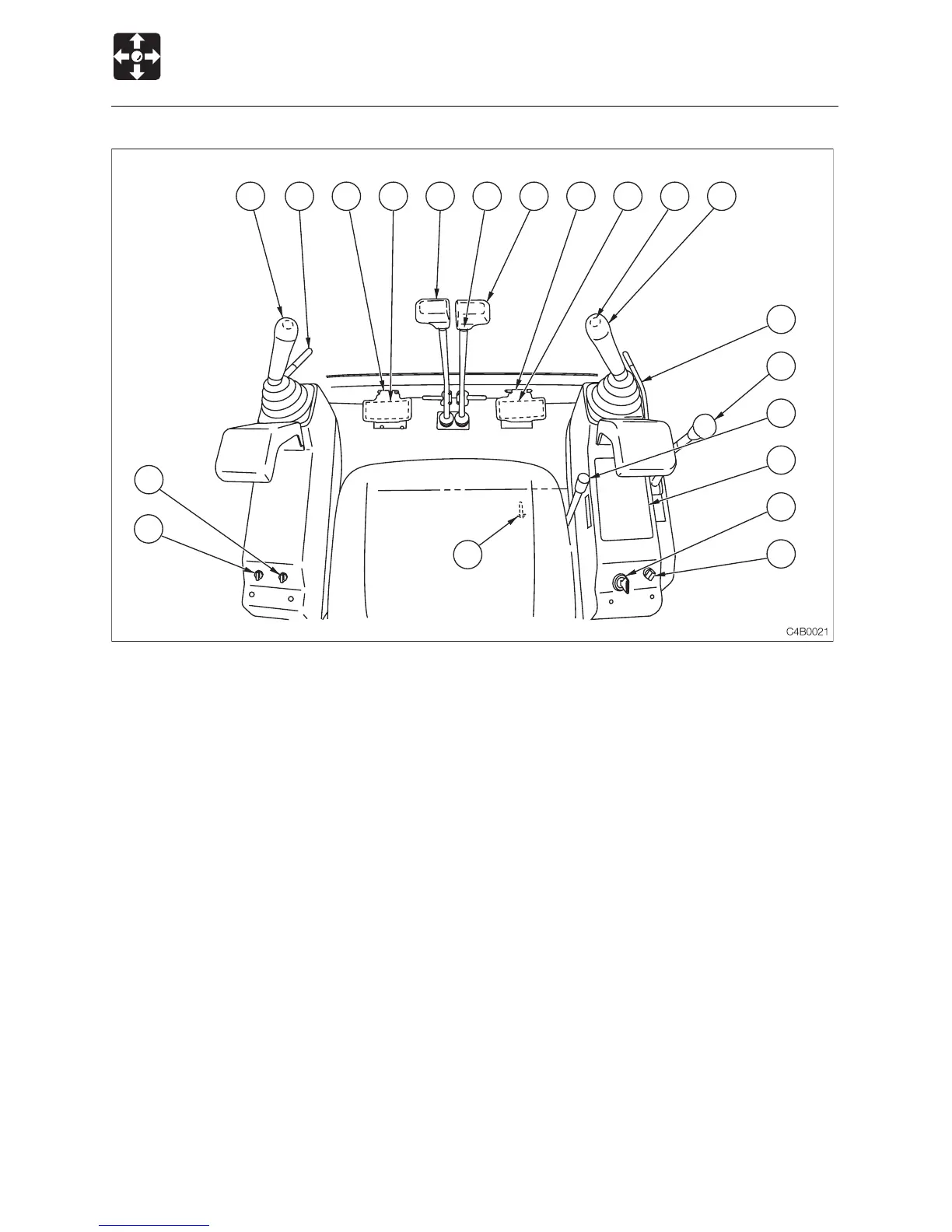

CONTROLS
1.
Instrument panel
2.
Starter switch
3.
Light switch
4.
Horn switch
5.
Travel speed switch
6.
Wiper switch (Cab)
7.
Safety lock lever
8.
Safety lock lever (Canopy)
9.
Throttle lever
10.
Left operating lever
11
.
Right operating lever
12.
Pedal lock
13.
Boom swing pedal
14.
T
ravel lever
15.
Auxiliary pedal
16.
Blade lever
17.
Selector lever
18.
Heater fan switch (Cab)
Names of Components
10
8
16
17
9
1
2
3
7
12
15
14
5
6
14
12
13
4
11
18
38
40
Table of Contents
Table of Contents
7
Introduction
4
Serial Numbers
4
Table of Contents
7
Safety
10
General Precautions
11
Preparing Precautions
14
Preparing Precautions
15
Starting Precautions
16
Starting Precautions
17
Operating Precautions
18
Operating Precautions
19
Stopping Precautions
25
Transporting Precautions
26
Maintenance Precautions
28
Safety Signs (Decals)
35
Controls
37
Controls
38
Names of Components
38
Doors and Covers
40
Doors and Covers
41
Seat and Seat Belt
45
Instrument Panel
47
Switches
49
Levers and Pedals
51
Accessories
55
Operation
63
Operation
64
Before Starting Operation
64
Starting and Stopping the Engine
65
Machine Operation
68
Operating Procedures
79
Parking the Machine
87
Handling in Cold Weather
88
Handling Rubber Crawlers
89
Transport
93
Transport
94
Loading and Unloading
94
Hoisting the Machine
95
Securing the Machine
96
Cautions on Transporting
96
Maintenance
97
Maintenance
98
General
98
Service Data
100
Important Parts
104
Maintenance Chart
105
Walk-Around Inspection
107
Daily Inspection (Every 10 Hours)
109
After First 50 Hours (New Machines Only)
114
Every 50 Hours
117
Every 100 Hours
121
Cleaning the Water Separator
121
After First 250 Hours (New Machines Only)
122
Every 250 Hours
123
Every 500 Hours
125
Every 1000 Hours
126
Every 2000 Hours
129
When Required
131
Long-Term Storage
138
Troubleshooting
139
Symptoms that Are Not Malfunctions
140
If the Engine Overheats
141
If the Battery Goes Dead
142
After the Fuel Runs out
143
If a Fuse Blows
144
If a Warning Lamp Lights
145
Other Symptoms
146
To Lower the Boom
148
Towing
149
Specifications
151
Lifting Capacities
167
Options
181
Options
182
General Precautions
182
Safety Signs (Decals)
184
Biodegradable Oil
186
Switching the Lever Pattern
187
Attachment Combination Table
188
Telescopic Arm
189
Hydraulic Breaker
194
Three-Hole Bucket
196
High-Back Seat
199
Travel Alarm
201
Radio (for EU)
202
General Operation
202
Battery Switch
206
Index
208
