Takeuchi TB016 User Manual

74
OPERATION

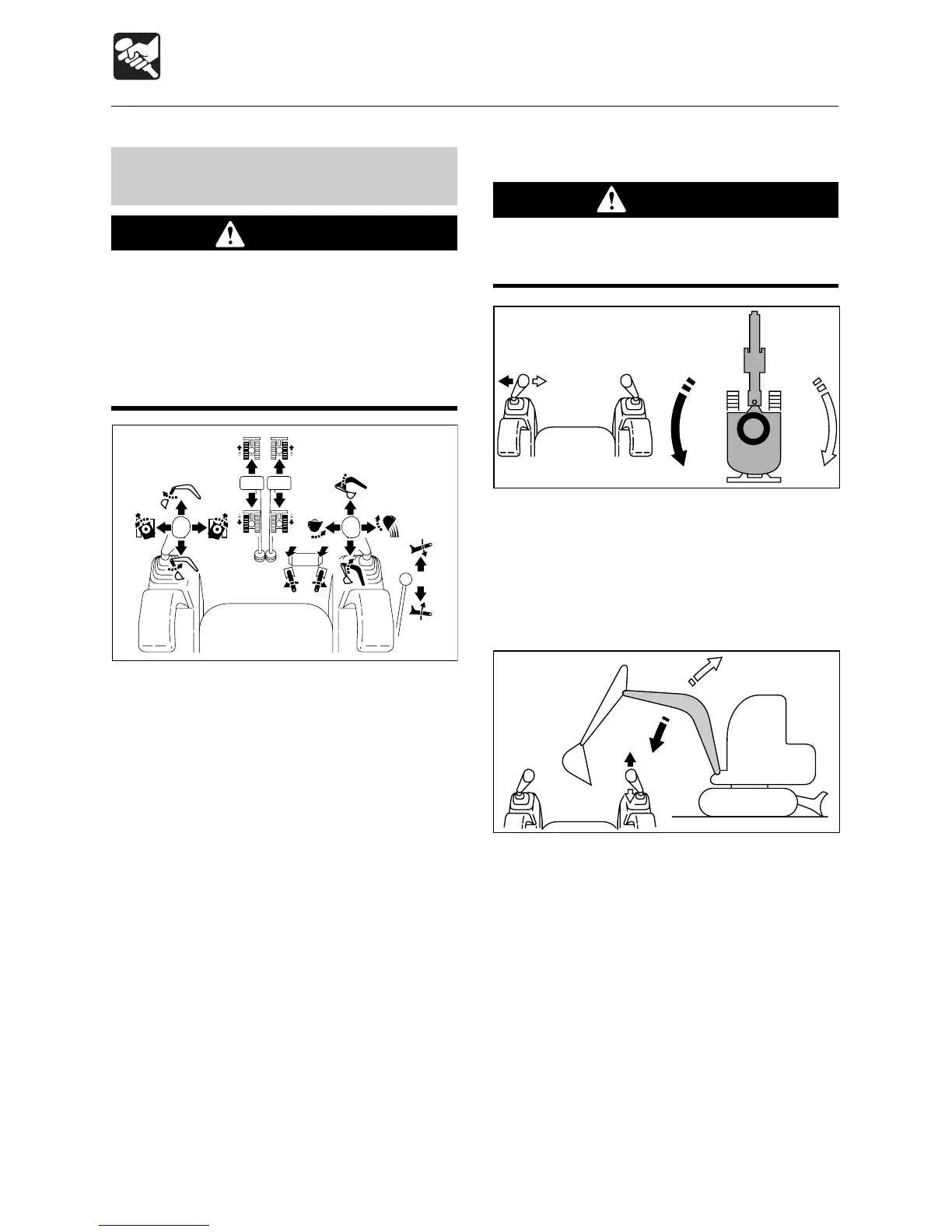

Machine Operation
Operating the Working
Equipment
WARNING
¡¡
¡¡
¡Be careful to check which pattern of
lever control arrangement you are
operating with before beginning
operations.
¡¡
¡¡
¡The explanations in this manual are for
the ISO pattern.
Use the right operating lever to operate the
boom and bucket.
Use the left operating lever to operate the
arm and for slewing.
Return the operating levers to the neutral
position to stop the hoe attachments.
1. Set the safety lock lever to the released
position.
2. Set the pedal locks to the released
position.
Slewing
WARNING
Check the surrounding area for safety
before slewing.
aTo slew left:
Tilt the left operating lever to the left.
eTo slew right:
Tilt the left operating lever to the right.
Operating the Boom
aTo lower the boom:
Tilt the right operating lever forward.
eTo raise the boom:
Tilt the right operating lever backward.
C4D006
E4D021
E4D022
