Takeuchi TL12 User Manual

6-7

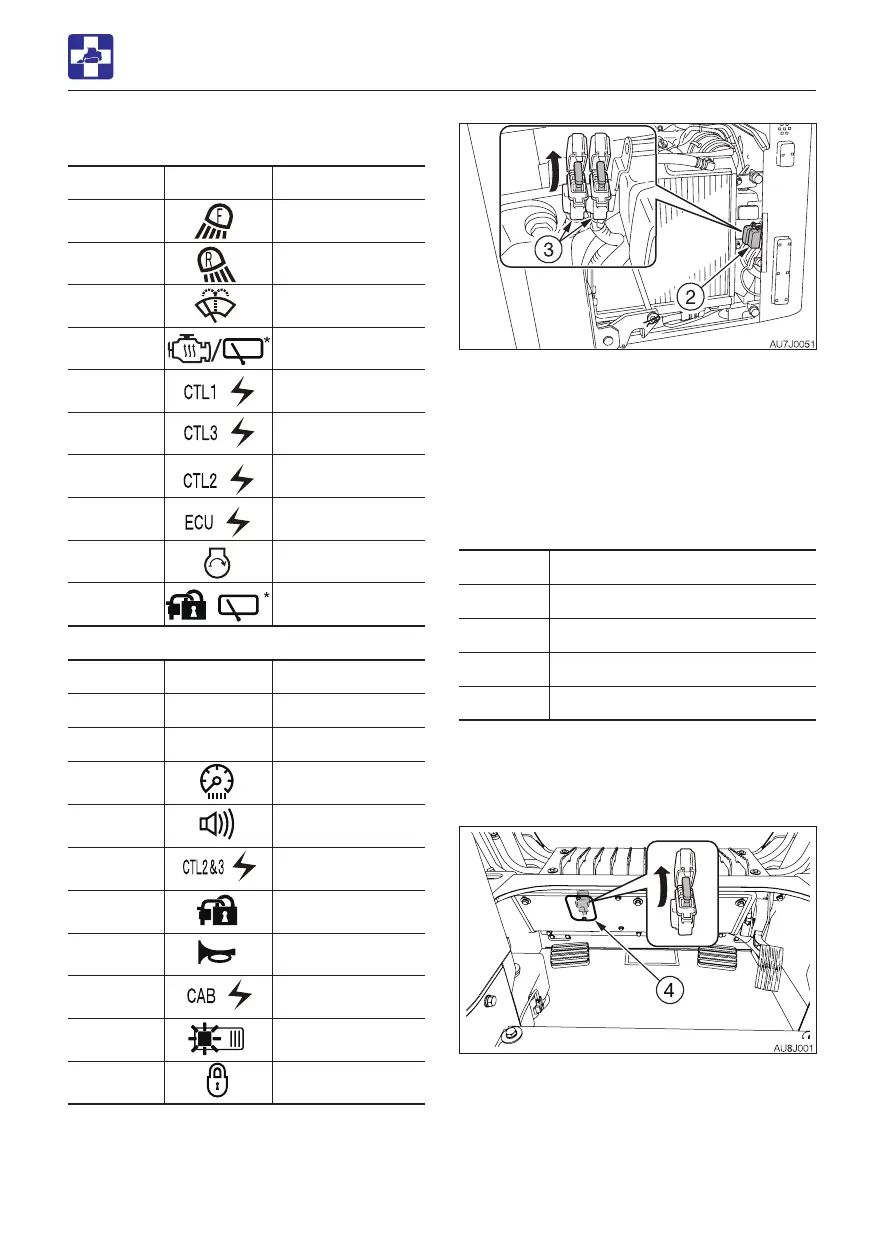

TROUBLESHOOTING
IF A FUSE BLOWS
5. Open the rear door.
6. Loosen the bolt and remove the cover (2).
7. Open the fuse box (3).
8. Check for any blown fuses.
9. If a fuse is blown, replace it with a spare
fuse of the same capacity.
Fuse layout and circuits protected (2)
Capacity Protected circuit
25A** Air conditioner unit**
25A** Condenser fan**
5A** Compressor clutch**
15A ECU
** : <TL10/TL12>
<TL8>
10. Loosen the bolt and remove the cover (4).
11. Open the fuse box.
12. Check for any blown fuses.
13. If a fuse is blown, replace it with a spare
fuse of the same capacity.
<TL10/TL12>
Capacity Symbol Protected circuit
20A
Front light
20A
Tail light
10A
Front wiper
(Option)
25A/10A*
Blow-by heater/
Rear wiper*
30A
Controller 1 (ACC)
10A
Control Power 3
(ACC)
5A
Control Power 2
(ACC)
10A ECU (ACC)
5A Starter switch (C)
5A/15A*
A Theft Arrester
(ACC),
Rear wiper*
Capacity Symbol Protected circuit
5A Instrument cluster
20A
Radio,
Alarm (OPT)
15A
Controller
2 and 3(BAT)
5A A Theft Arrester
10A Horn
10A
Interior light,
Radio
3A Switch LAMP
20A
Lever Lock,
G-H Switch
* : If equipped
