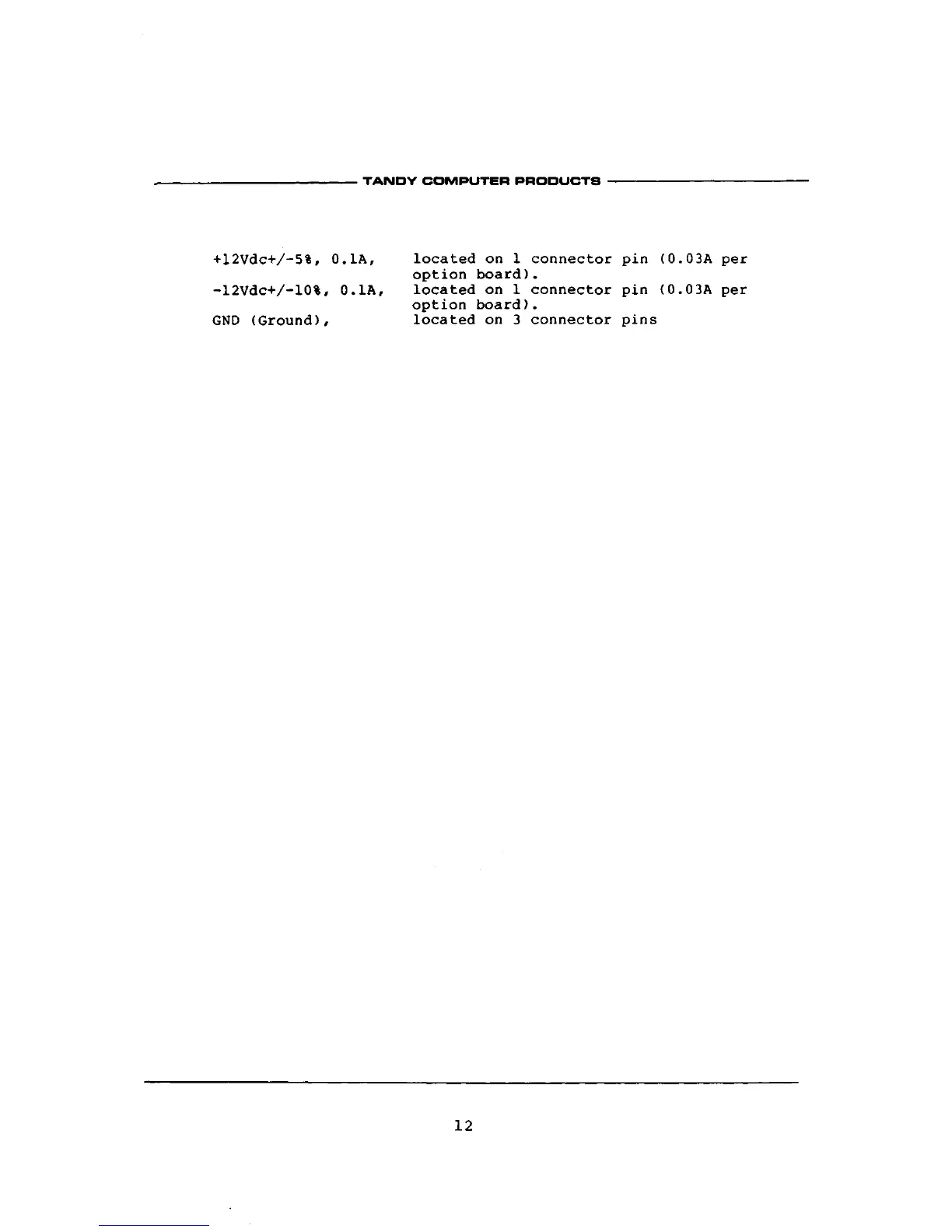

TANDY COMPUTER PRODUCTS
12
+12Vdc+/-5%,
0.1A,
-12Vdc+/-10%,
O.1A,
GND
(Ground),
located
on 1
connector pin (0.03A per
option
board).
located
on 1
connector pin
(0.0 3A
per
option
board).
located
on 3
connector pins
