Tandy Color Computer 3 User Manual

Specifications

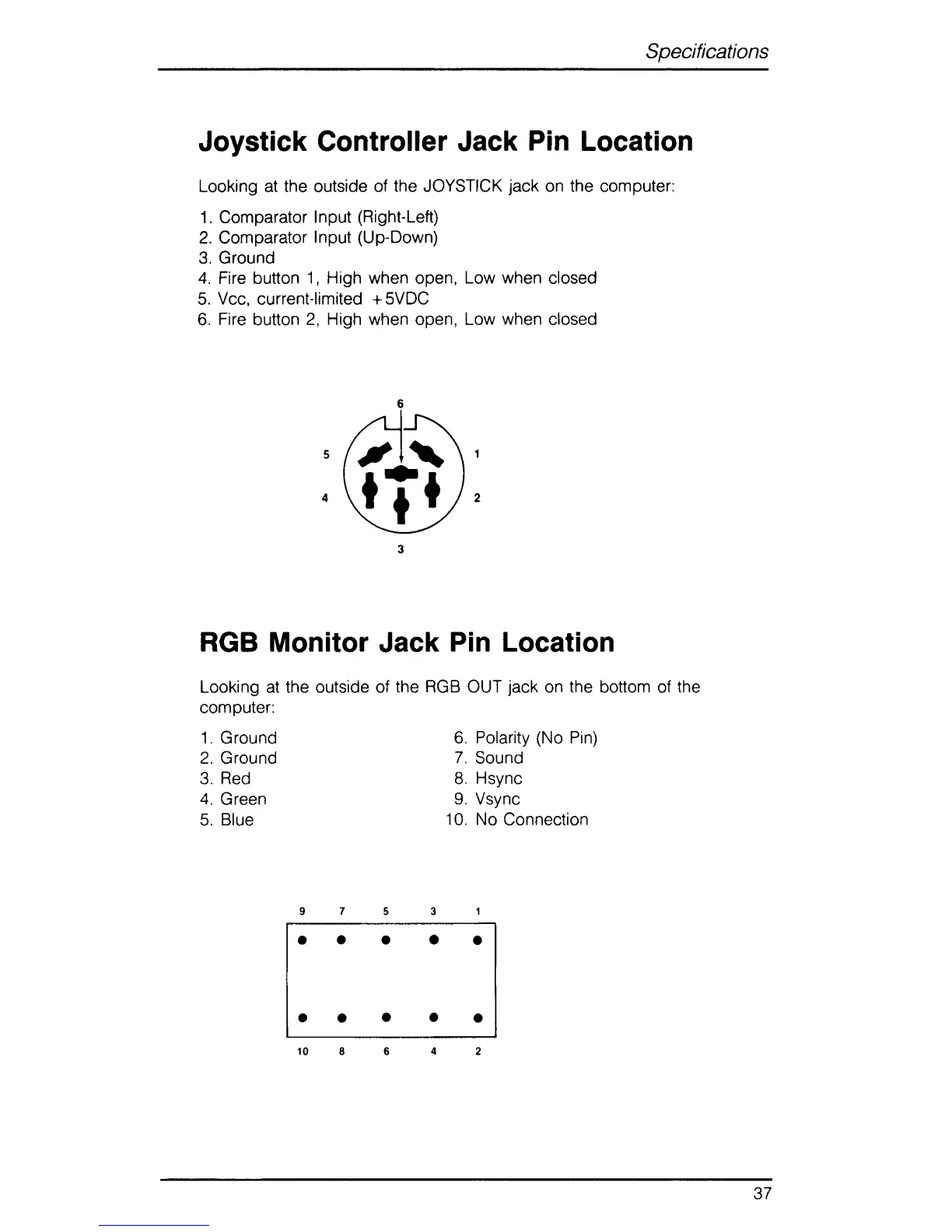

Joystick
Controller Jack
Pin
Location
Looking at
the outside
of the JOYSTICK jack on the computer:
1.
Comparator Input
(Right-Left)
2.
Comparator
Input (Up-Down)
3.
Ground
4. Fire button
1,
High when open,
Low when
closed
5. Vcc,
current-limited +5VDC
6.
Fire
button
2,
High when open, Low when closed
RGB
Monitor
Jack
Pin
Location
Looking
at
the outside of
the RGB
OUT jack on
the
bottom of
the
computer:
1.
Ground
2. Ground
3. Red
4.
Green
5. Blue
6.
Polarity
(No
Pin)
7.
Sound
8. Hsync
9.
Vsync
10.
No Connection
37

Tandy Color Computer 3 Specifications

General

Brand	Tandy
Model	Color Computer 3
Category	Desktop
Language	English
