TaoTronics TT-TF009 User Manual

06/EN 07/EN

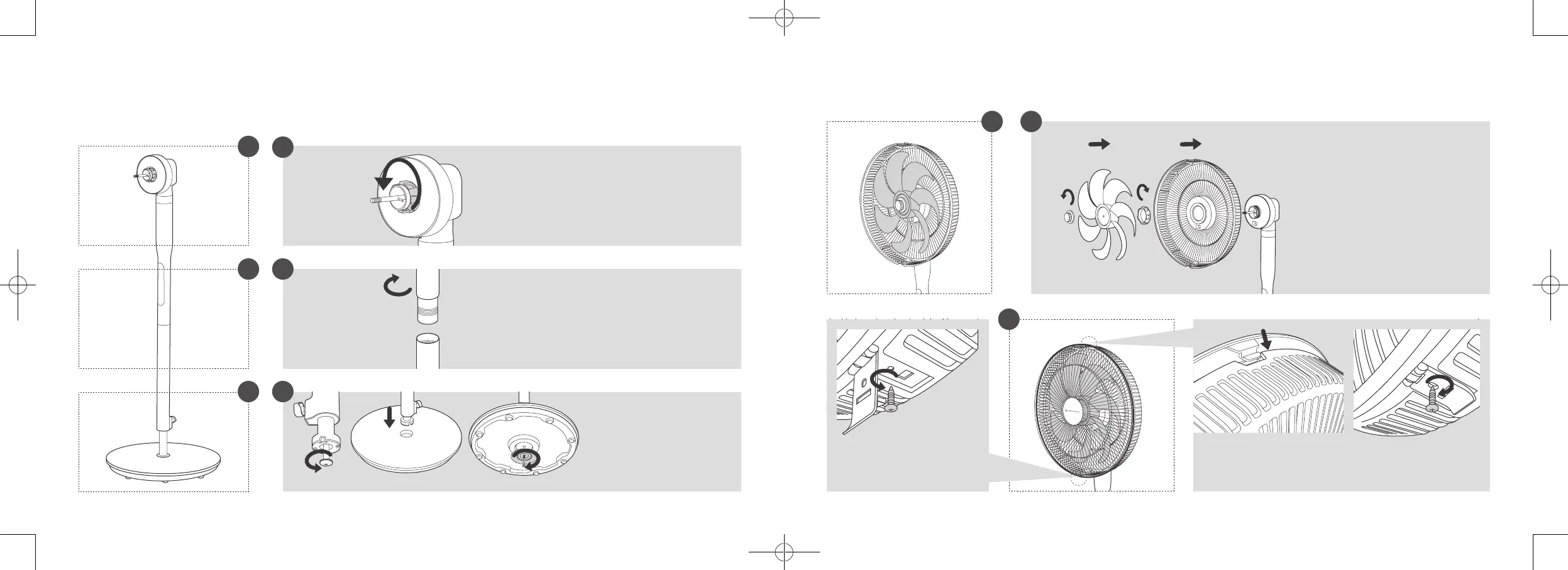

Assembling Your Fan
1
2
1
2
3
3
1) Unscrew the Connection Bolt
from the Connection Pole.
2) Align the Pole with the Base.
3) Secure with the Washer and
Bolt clockwise.
Screw the Head Assembly onto the Pole clockwise.
Unscrew the Grill Nut counterclockwise and
set aside.
4
5
4
1) Position the Rear Grille onto the
Head Assembly. Tighten with the Grill
Nut clockwise.
2) Install the Blade onto the shaft until
retaining pin fits into the notch. Lock
with the Blade Nut counterclockwise.
1) Loosen the Locking Screw.
2) Align and clip the Rear Grille
into the indent of the Locking
Clips on the Front Grille.
3) Secure the grilles
with the Locking Screw.

TaoTronics TT-TF009 Specifications

General

Brand	TaoTronics
Model	TT-TF009
Category	Fan
Language	English
