06

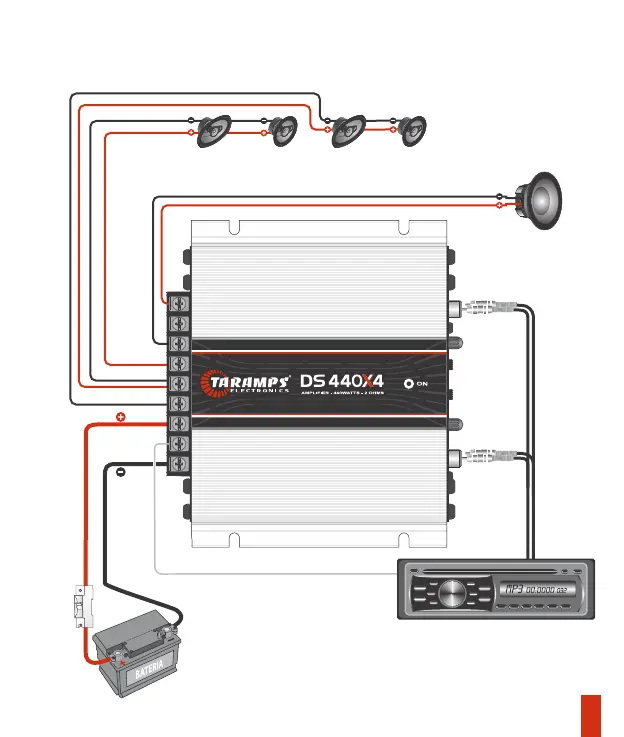

Instalação / Installation
4mm² (11 AWG)
4mm² (11 AWG)
*Imagens Ilustrativas / Illustrative images
Cabo Remote 0,75mm² / Remote Cable 18 AWG
12V
GND
4 ohms
4 ohms 4 ohms 4 ohms
Connection example in the output: Stereo + Bridged
Exemplo de ligação na saída: Stereo + Bridged
Subwoofer 4 ohms
Note: In case of horns and tweeters you must install a passive filter in
the positive terminal of the same ones (Consult transducer’s
manufacturer manual).
OBS: Em caso de drivers e tweeters é indispensável a instalação de
filtro passivo nos terminais positivo dos mesmos (Consulte manual do
fabricante).
Cabo RCA / RCA Cable
Taramps
Cabo RCA / RCA Cable
Taramps
CD/DVD Player / Head Unit
Caso o CD/DVD Player não possua as 4 saídas RCA,
utilize cabos ‘‘Y’’para conectar as 4 entradas do DS 440X4.
If the head unit doesn't have the 4 RCA outputs, use ‘‘Y’’ type
cable adapters for properly 4 inputs connection of DS
440X4 amplifier.
