1 – Starting out with your DP-02/DP-02CF

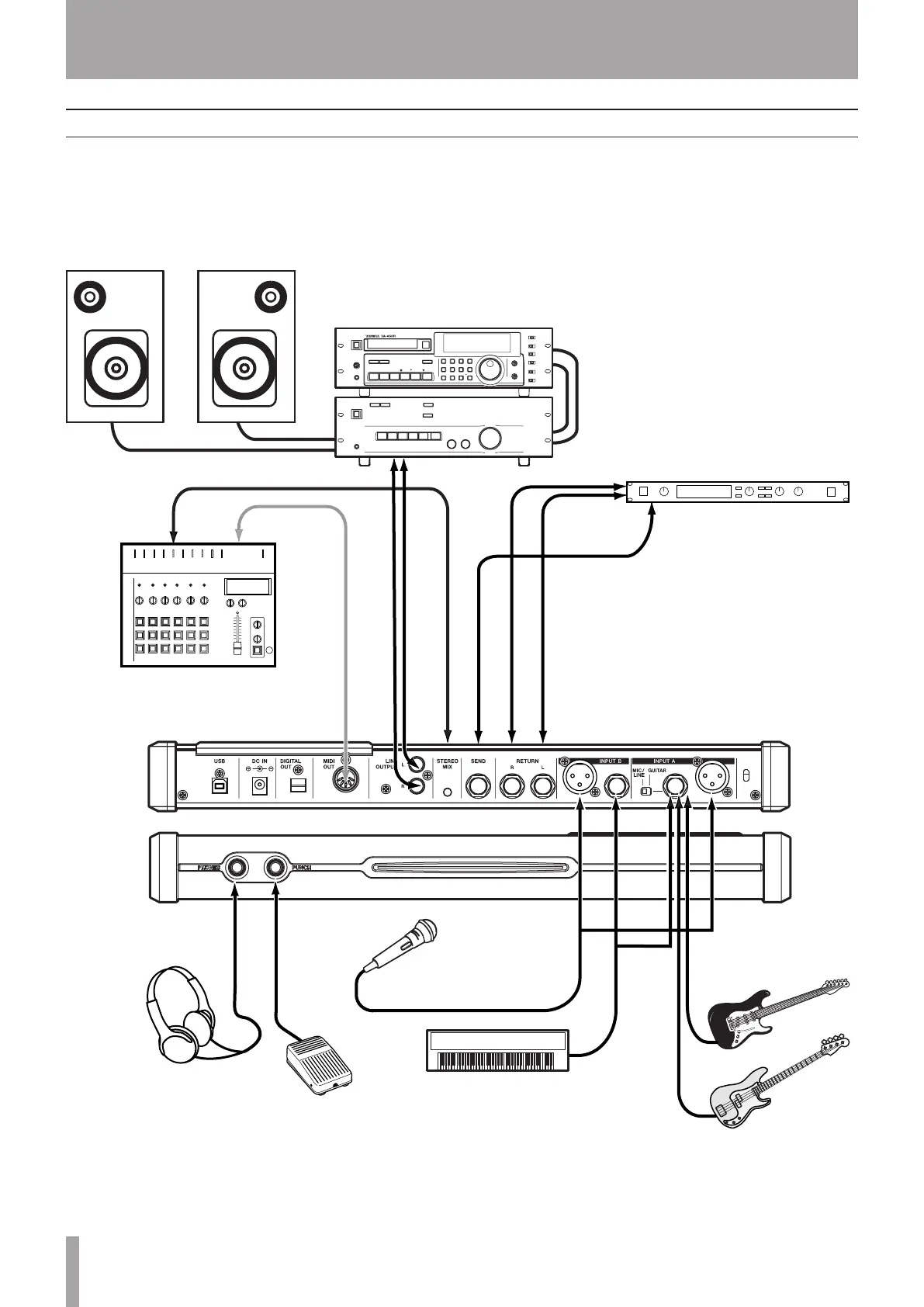

Connecting your unit to other equipment
Before you start recording with the unit, you will need to
make a few connections to other equipment. The following
picture shows how you can connect the unit to your exist-
ing audio setup.
Instruments to INPUT A and B
Microphones to INPUT Aand B
Drum machine
PHONES
Footswitch
MIDI OUT
STEREO MIX (L, R)
MIDI IN
SEND
RETURN (L, R)
External effects unit
LINE OUTPUT (L, R)
REC OUT/PLAY IN
Stereo amplifier
2-track recorder
Guitars and basses to
INPUT A
