68

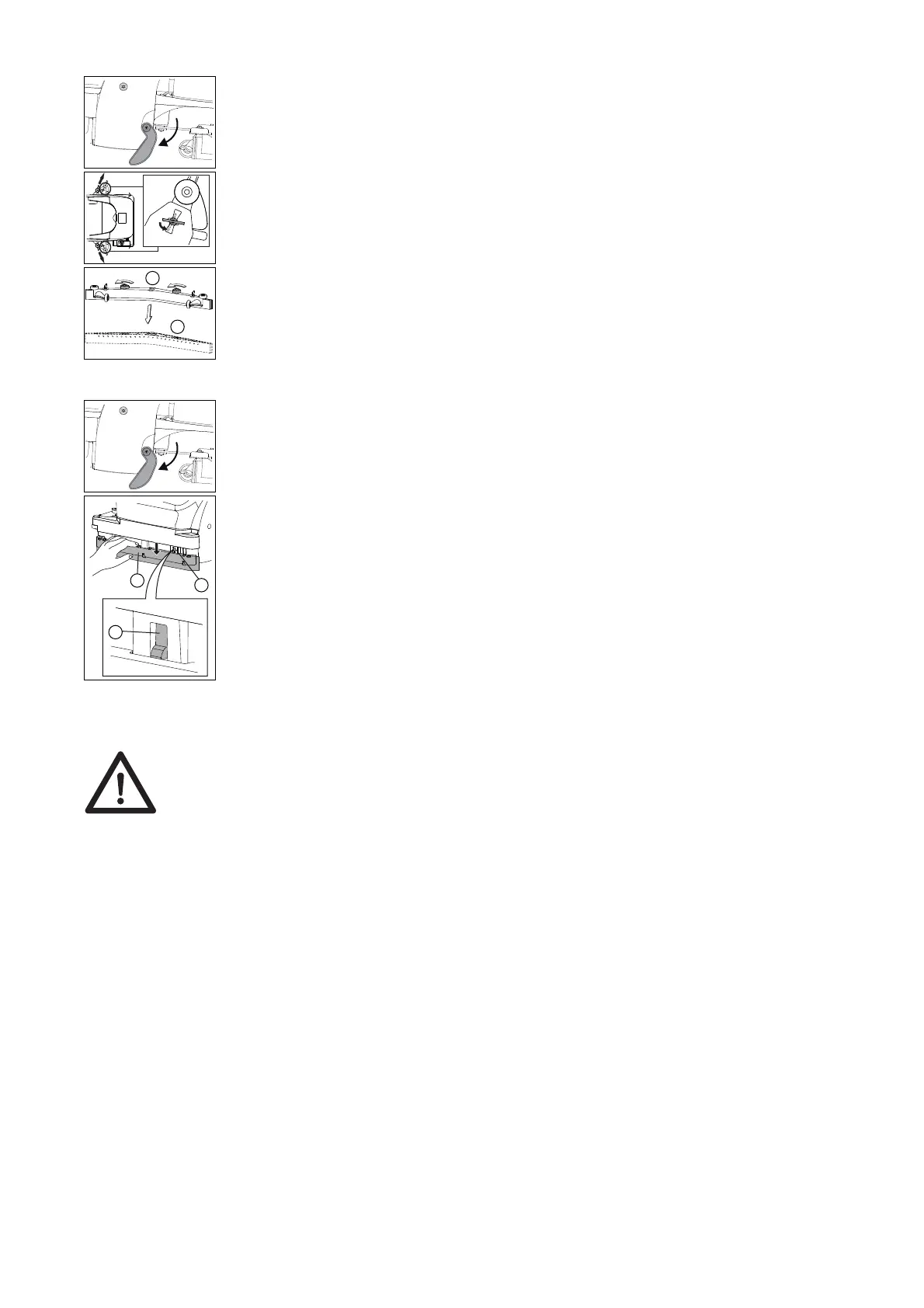

Changing the squeegee blades
Scraper blade change
• Place the machine on the parking
support.
• Remove the squeegee by turning the
locking screws.
• Screw off the triangular handle (1)
and pull the blade body (2) out of the
squeegee body.
• Place the machine on the parking
support.
• Press the scraper down by hand until
the lugs (1) for the cover plate ap-
pear.
• Press the edges of the lugs (2) to the
rear until the cover plate (3) can be
removed.
• Now you can turn the blades or replace them.
• Now remount the cover plate (3). Ensure that the snap-in
lugs (2) latch correctly.
Attention:
Danger of injury from clamping the fingers!
