Technical Manual
31. May 2007 Revision: V1.10 4-4
Copyright © 2007, JohnsonDiversey, Inc.
06.0 swingo 450B - technical procedures.fm - 31. May 2007
4.3 Subassemblies
4.3.1 Handle (01)

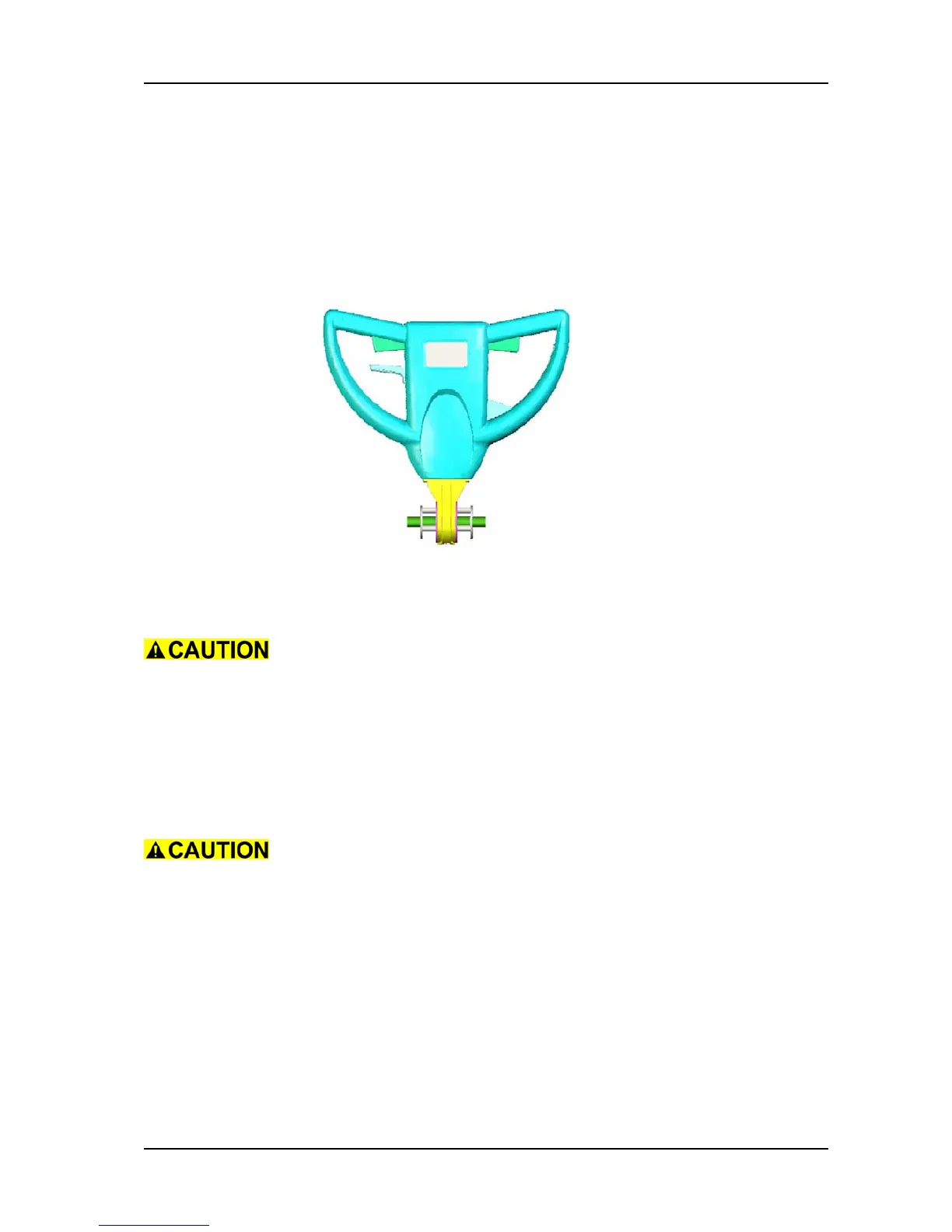

Picture 1: Handle open
• Unscrew the cover (01/112)
Carefully separate the cover from the handle to prevent cable
damages
• Carefully disconnect the cables from the electronic board (01/
116)
Reassembly
Follow the steps in reverse order
Tighten the power cable with a torque of 6 Nm to the cooler
Refer to picture: Power cable electronics
Take care that you position the cable from the control label (01/
110) with the sticker outwards
