Technical Manual
31. May 2007 Revision: V1.10 4-5
Copyright © 2007, JohnsonDiversey, Inc.
06.0 swingo 450B - technical procedures.fm - 31. May 2007

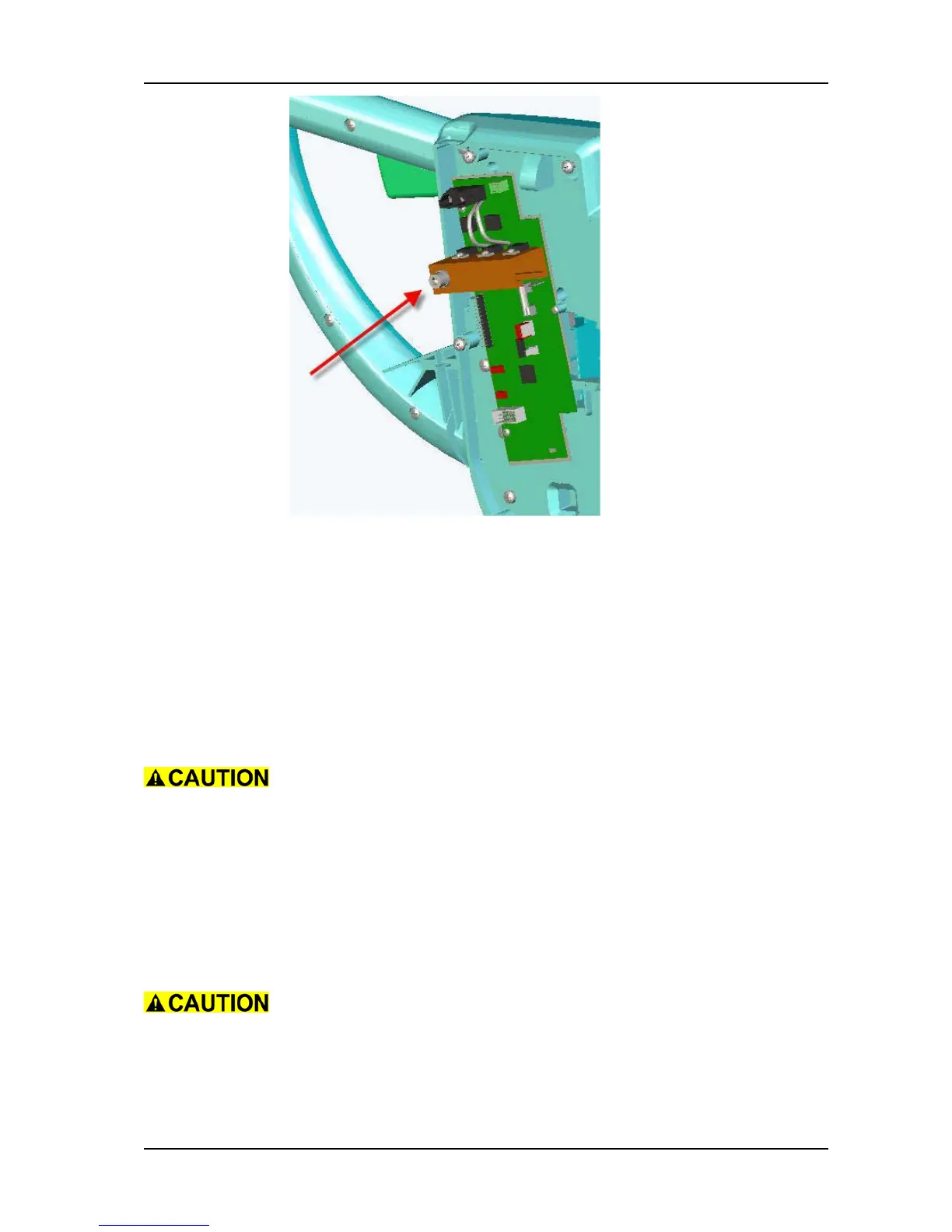

Picture 2: Power cable electronics
4.3.1.1 Removing handle from the tank
• Remove screws (01/130)
• Remove the cover disks (01/131)
• Remove the handle
Reassembly
Follow the steps in reverse order
The screws (01/130) have to be tighten with a torque of 15 Nm
Pay attention that the holes of the toothed wheel, sustaining disc
and cover disk are in line before you place the handle
The middle hole of the toothed wheel has to be positioned according
to the description in chapter: Remove toothed wheel
4.3.1.2 Replacing electronics
ESD - Electrostatic Discharge
• Unscrew the electronic board (01/116)
