Technical Manual
31. May 2007 Revision: V1.10 4-7
Copyright © 2007, JohnsonDiversey, Inc.
06.0 swingo 450B - technical procedures.fm - 31. May 2007

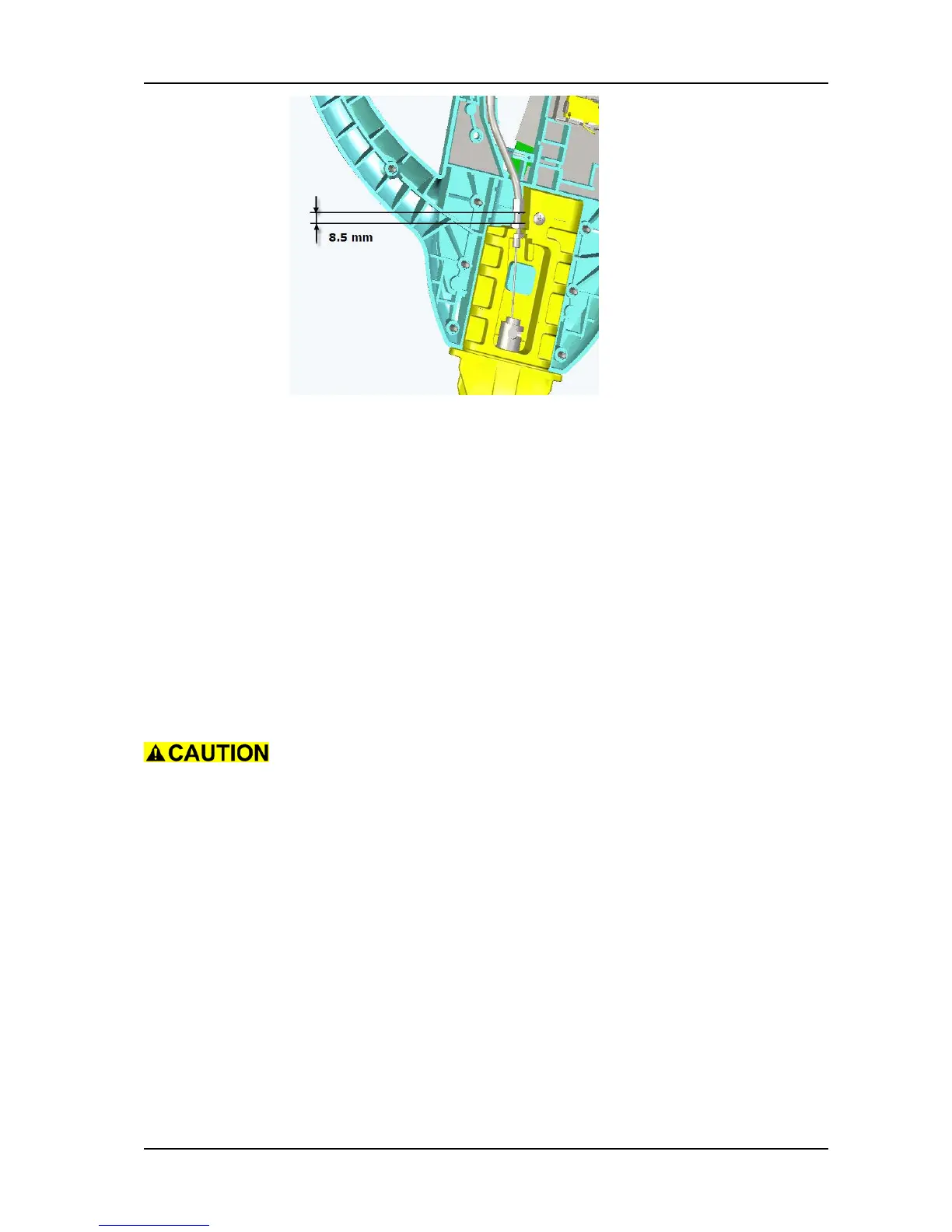

Picture 3: Bowden cable
4.3.1.5 Replacing toothed wheel
• Remove the sustaining discs (01/129)
• Pull the toothed wheel out of the articulation
Reassembly
Follow the steps in reverse order
Service
Lubricate the toothed wheel and articulation with: Klüber Staburag
Refer to Material listing
Check the condition of the O-rings
The middle hole of the toothed wheel has to be in upper position
while the part with less teeth has to be in driving direction
Refer to picture: Toothed wheel position
