Technical Manual
31. May 2007 Revision: V1.10 4-9
Copyright © 2007, JohnsonDiversey, Inc.
06.0 swingo 450B - technical procedures.fm - 31. May 2007

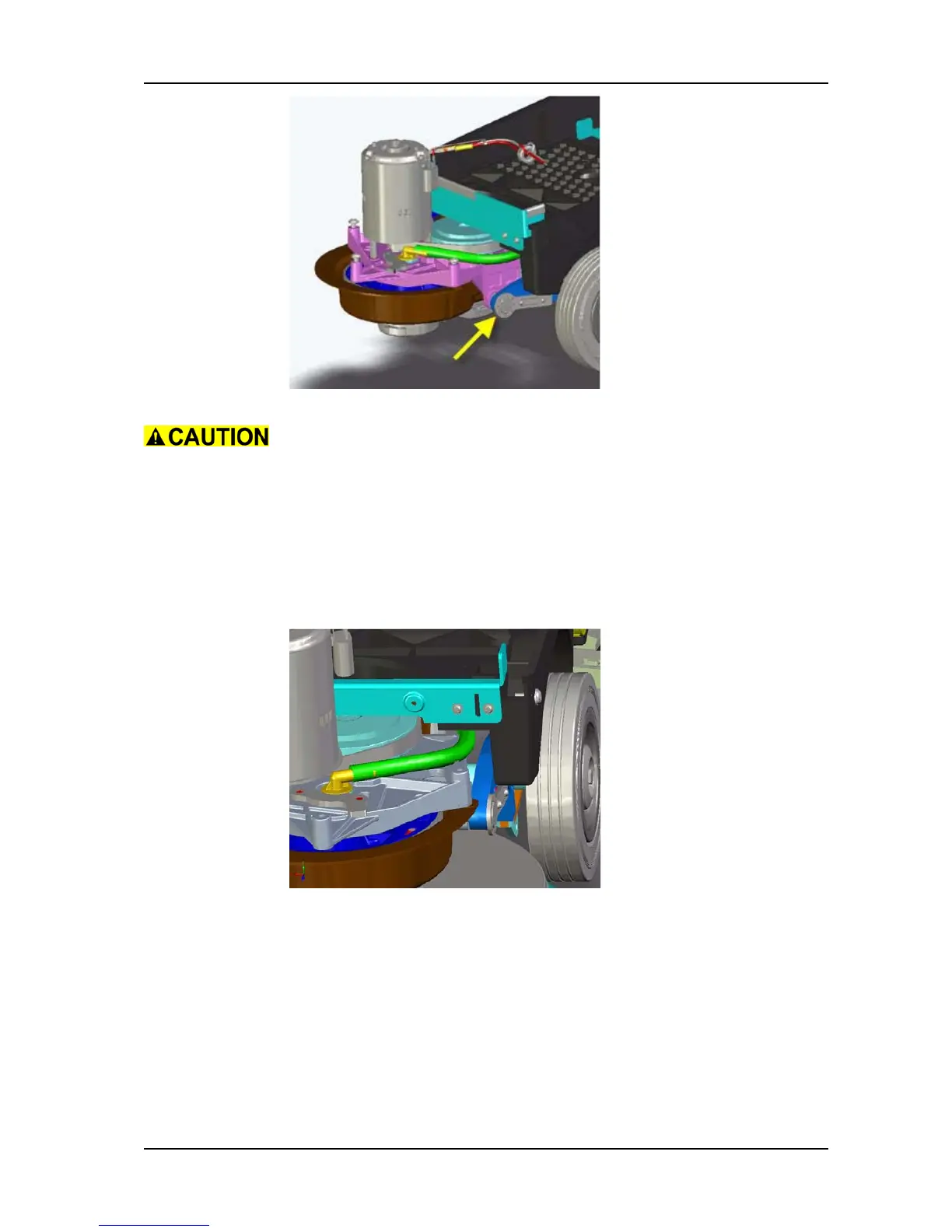

Picture 5: Default setting eccentric shaft
Do not use the locking lever (05/116) to tighten the eccentric shaft
(05/110)
Connect the wires of the brush motor and the cable strand on the
connection block, matching the colours
Position the hose and fix with a cable tie
Refer to picture: Brush unit hose position
Picture 6: Brush unit hose position
