Technical Manual
31. May 2007 Revision: V1.10 4-11
Copyright © 2007, JohnsonDiversey, Inc.
06.0 swingo 450B - technical procedures.fm - 31. May 2007
4.3.3.1 Replacing complete squeegee mechanism
The screw (06/101) has to be tightened with a torque of 70 Nm
Service
Lubricate the bearing plate, the squeegee mechanism support and
the hexagon screw with: OKS 427
Lubricate the axle (04/130) and the adjusting nut of the squeegee
bracket with: Synsetral
Refer to Material listing
4.3.4 Tool lowering unit (05) & Chassis (06)
4.3.4.1 Replacing cradles, foot lever & axle
Adjustment

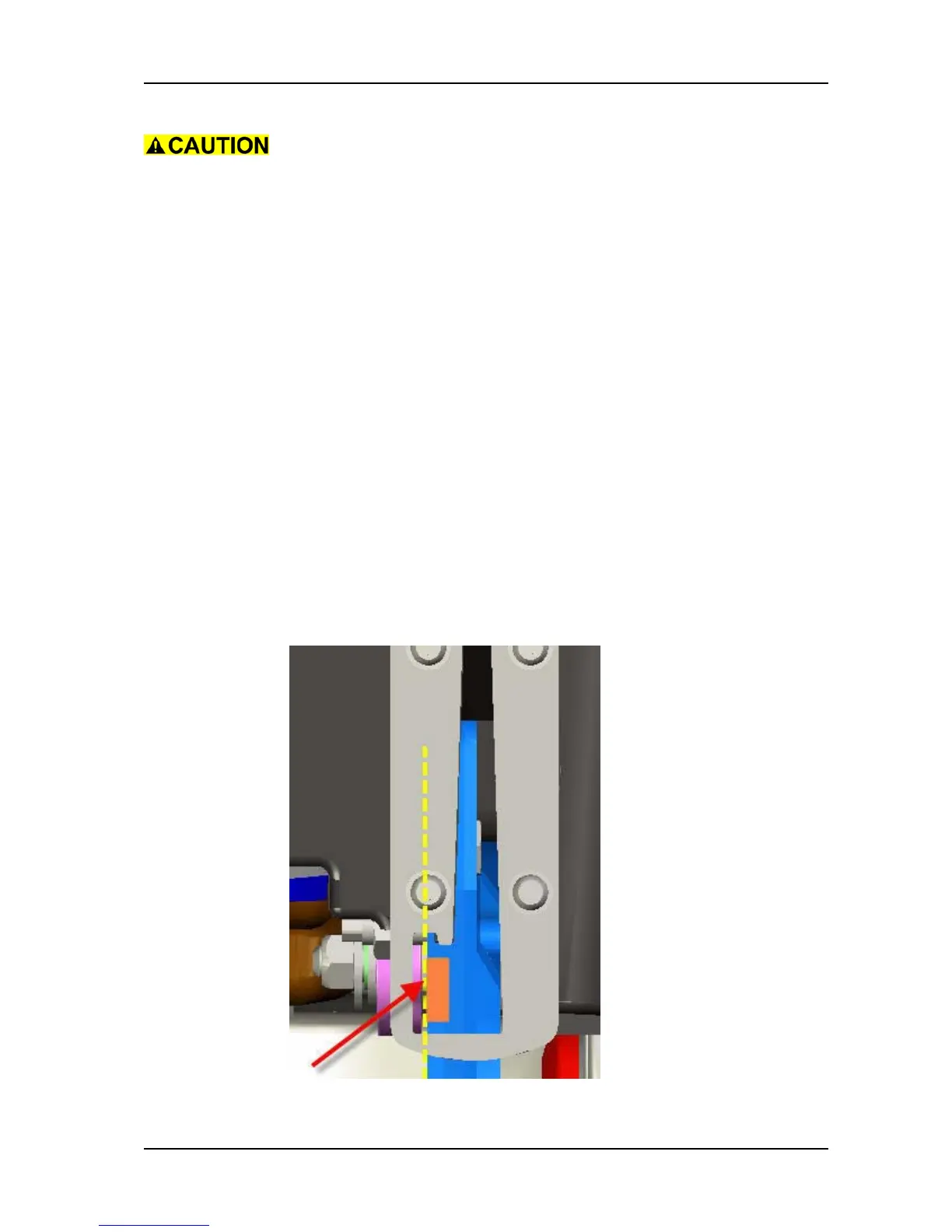

The limit switch has to switch when the foot lever passes the centre
of the LH side of the foot lowering gate
Refer to picture: switching point
