- 7 -

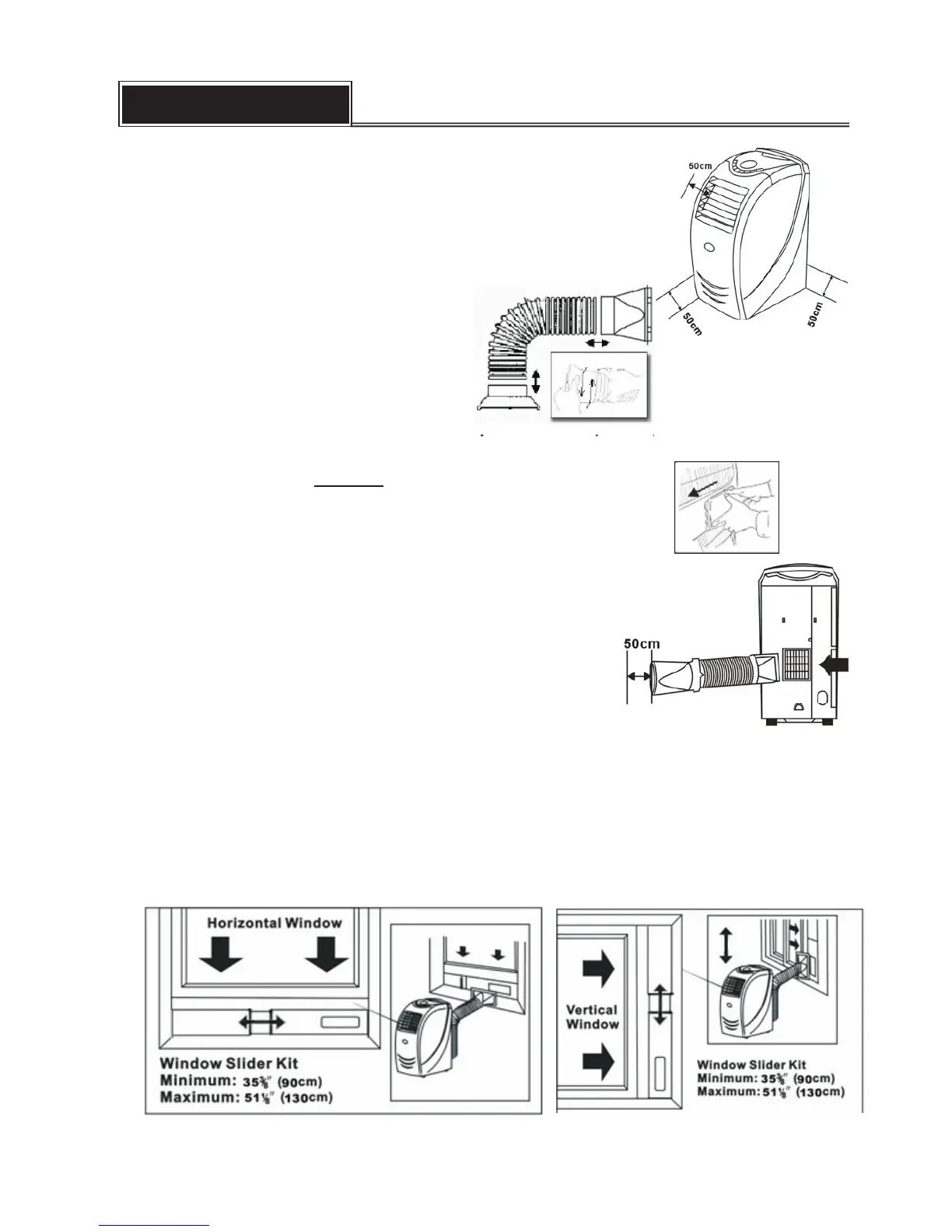

2. Assemble the air exhaust hose
Connect the end of the hose and adapter
and twist them.
3. Mount the air exhaust duct on the product
(1) Slide the square Adapter A of the exhaust dust to the exhaust
terminal of the unit.
(2) Put the other end to the nearest window. Leave at least 20 inch(50 cm)
space around it.
4. Install the window kit
Your window kit has been designed to fit most standard "vertical"
and "horizontal" window applications. However, it may be necessary for you to modify some
aspects of the installation procedur es for certain types of windows. Please refer to the illustration for
minimum and maximum window openings
Installation in the horizontal window Installation in the Vertical window
INSTALLATION
Adapter A
Adapter B
1 . Select a proper installation location
Place the portable air conditioner on a flat and dry location where the air
outlets cannot be obstructed. Leave a 20 inch (50 cm) minimum space
between the product and the wall.
NOTE:
The length of the air exhaust duct can be extended from 17.5 to
62 inch. Using the minimum length of the air exhaust duct could save
energy for you.
This length has been designed especially according to the
specifications of the air conditioner. Do not replace or extend it with
your own hose as this could cause the unit to malfunction.
inch
(2 0 inc h)
