19

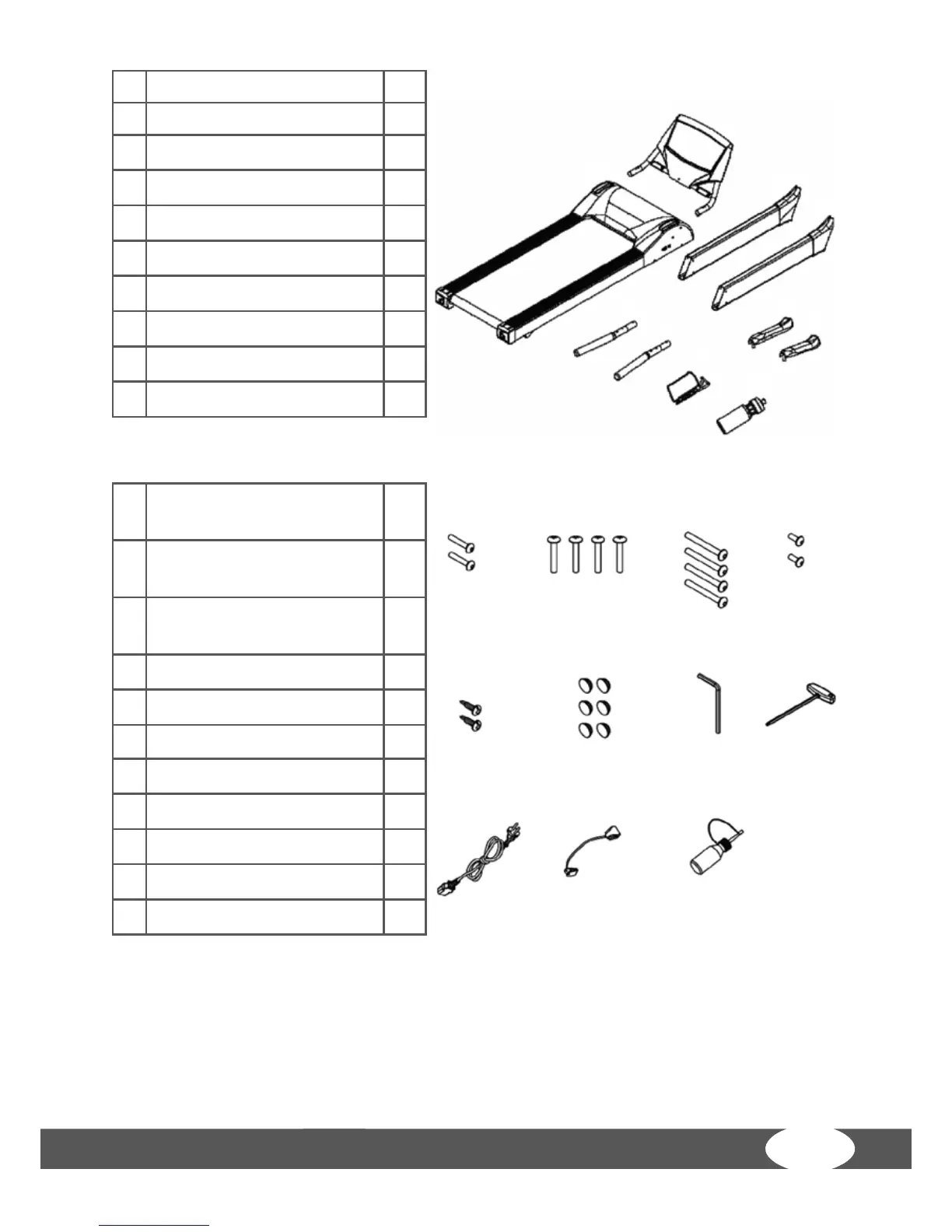

A Cockpit 1x
B Frame 1x
C
Upright side frame (left) 1x
D
Upright side frame (right) 1x
E
Handrail (left) 1x
F
Handrail (right) 1x
G
Cover (left) 6x
H
Cover (right) 1x
I
Bottle holder 1x
J
Bottle 1x
a Allen screw M8xP1,
25x40
2x
b Allen screw M8xP1,
25x60
4x
c Allen screw M8xP1,
25x75
4x
d
Screw M5xP0, 8x15 2x
e
Tapping screw ø 5x 25 2x
f
Screw covers 6x
g
Allen screw 5mm 1x
h
Allen key 1x
i
Power cable 1x
j
Safety clip 1x
k
Silicone bottle 1x
In addition to the included tools, you also need a Phillips head screwdriver Ph2 for
assembly. Furthermore, the assembly should be executed with two persons in order
to avoid possible hazards.
A
B
C
D
E
F
I
J
G
H
a b c d
e f g h
i j k
